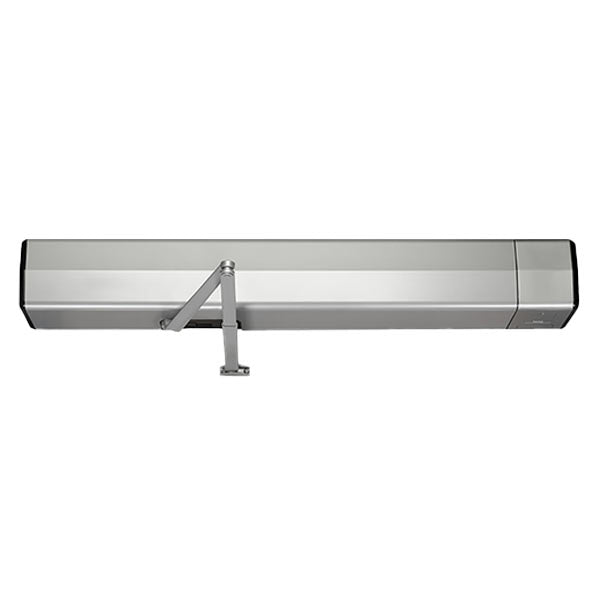

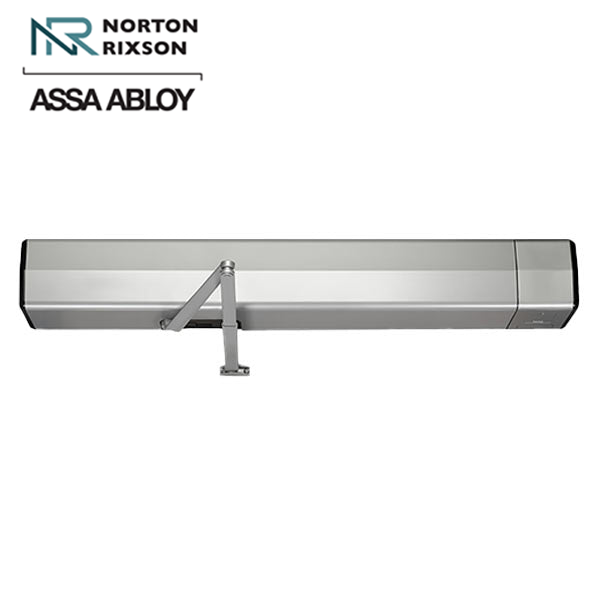

Norton - 6021 - Low Energy Door Operator - Push Side - Double Lever Arm - Aluminum
In Stock
SKU:
NOR-6021-689
NSID:
28688
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $2,649.90
-
$4,383.60 - $2,649.90
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The 6000 Series low energy operator is a heavy-duty unit designed for rigorous, high-use applications. Built-in intelligence enables the operator to safeguard users while providing better door control. Simple installation and adjustment features combined with the unit’s high level of versatility allows for seamless integration with a multitude of facilities and systems.
Features
- Adjustable Hold Open - Amount of time a door will stay in the full open position after an activation
- Blow open for smoke ventilation - Door opens when signal is received from alarm system allowing air or smoke to flow through opening. Door will stay open until signal from alarm system is stopped
- Infinite Hold Open - Door will hold open at set position until power is turned off
- Obstruction Detection - Open: door closes if it hits an obstruction while opening. Close: door reopens (once) if it hits an obstruction while closing. If it hits the obstruction again, the door will rest against the obstruction until it is removed
- Open Delay - Delays operator opening for locking hardware
- Overload Safety Shut-Off - After 3 minutes of receiving a door activation signal, inverter times out and door closes - Prevents motor/inverter damage
- Presence Detector Input - Input for external sensor to detect presence at door open or close position only
- Push & Go - As the door is manually opened, the operator "senses" movement and opens door to the full-open position
- Selector mode switch - Off: Disables signal inputs unless Blow Open is activated. On: Activates signal inputs. Hold Open: Activates the unit (unless blow closed is activated on 6300) to the hold open position
- Two Selectable Output relay - Multi-function relay outputs
- Vestibule Delay - When the push button is pressed, first door in vestibule will open. Second door will open once vestibule door delay has expired. Delay is adjustable
- ANSI/BHMA A156.19 certified & ADA Compliant
Specifications
| Construction | Heavy-Duty cast-aluminum body |
| Function | Hydraulic Electronic Door Operator |
| Interior or Exterior | Both |
| Handing | Non-Handed |
| Power Input | 120 VAC, 60Hz |
| Power Supply | 24 VDC (1.3A) |
| Finish | 689 - Aluminum |
| Maximum Door Weight | 250lbs |
| Door Width | 36" - 48" |
| Housing Projection | 4-3/4" |
| Housing Height | 5-3/16" |
| Housing Length | 37-1/2" |
| Mounting Style | Push Side |
| Max. Door Opening | 110 Degrees |
| Certifications | » ANSI/BHMA A156.19 certified » ETL tested to UL / cUL standards for automatic doors used on fire and smoke barrier doors and CSA C22.2 No. 247 for operators and systems of doors » UL10C listed for positive pressure fire test » Comply with requirements for the Americans with Disabilities Act (A.D.A) » California State Fire Marshall Listing 3266- 0944:0110 » Manufactured in an ISO 9001 and ISO 14001 facility » Verified by Green Circle to offer the following energy savings as compared to similar products: » 19% efficiency » Health product declaration and UL certified environmental product declaration |
| Warranty | 2-Year Limited Warranty |
