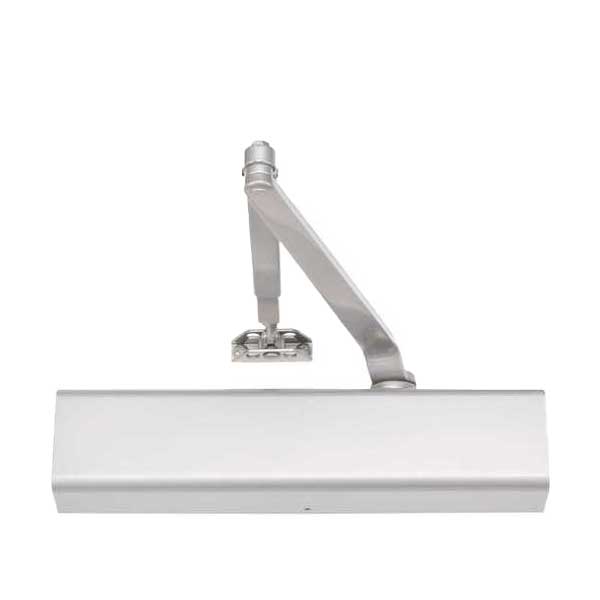

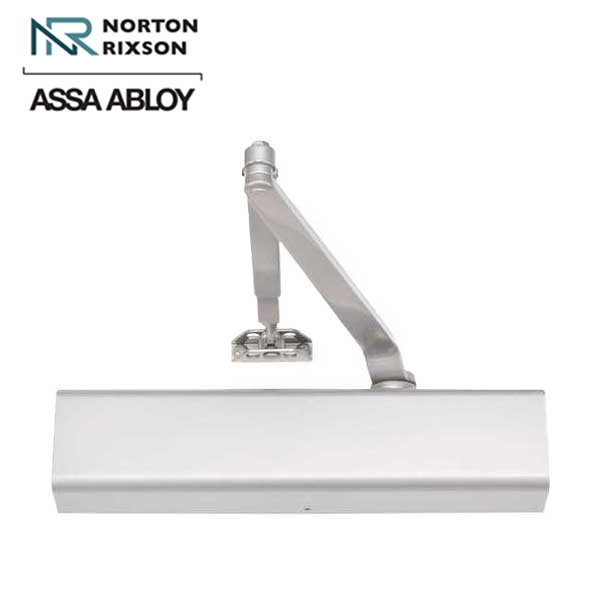

Norton - 8501 - Tri-Packed Manual Door Closer - Back Check Function - PA Bracket/Regular/Top Jamb - Adjustable Arm - Adjustable Sizes 1-6 - Satin Aluminum - Fire Rated - Grade 1
Norton - 8501 - Tri-Packed Manual Door Closer - Back Check Function - PA Bracket/Regular/Top Jamb - Adjustable Arm - Adjustable Sizes 1-6 - Satin Aluminum - Fire Rated - Grade 1
Norton - 8501 - Tri-Packed Manual Door Closer - Back Check Function - PA Bracket/Regular/Top Jamb - Adjustable Arm - Adjustable Sizes 1-6 - Satin Aluminum - Fire Rated - Grade 1
Norton - 8501 - Tri-Packed Manual Door Closer - Back Check Function - PA Bracket/Regular/Top Jamb - Adjustable Arm - Adjustable Sizes 1-6 - Satin Aluminum - Fire Rated - Grade 1
Norton - 8501 - Tri-Packed Manual Door Closer - Back Check Function - PA Bracket/Regular/Top Jamb - Adjustable Arm - Adjustable Sizes 1-6 - Satin Aluminum - Fire Rated - Grade 1

Norton - 8501 - Tri-Packed Manual Door Closer - Back Check Function - PA Bracket/Regular/Top Jamb - Adjustable Arm - Adjustable Sizes 1-6 - Satin Aluminum - Fire Rated - Grade 1

$149.95 $179.99
Availability: In Stock
Wishlist
  • Product SKU: NOR-8501-689-SN
  • NSID: 18704
  • NOR-8501-689-SN

    The Norton 8000 Series Door Closers offer the ideal combination of appearance, reliability and durability in today's market. This closer can meet virtually any application challenge.

    Features:

    • Exceeds 25 million cycles
    • Non-handed
    • Staked valves
    • Standard, separate and independent, latch, sweep and backcheck intensity valves
    • Cast aluminum body
    • Rack and pinion design
    • All standard arm applications allow doors to swing 180°, conditions permitting



    $149.95
    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs

            Specifications:

            Construction: Heavy-Duty cast-aluminum body
            Function: Hydraulic Manual Door Operator
            Closer Type: Non-Hold
            Interior or Exterior: Universal
            Handing: Non-Handed
            Finish:  689 - Aluminum
            Door Width: 36 - 48"
            Diameter Piston: 1-1/4"
            Diameter Pinion Journals: 5/8"
            Projection from Wall: 2-1/8"
            Mounting Style:
            Parallel, Regular, Top Jamb
            Arm Type: Adjustable Sizes 1 to 6, Standard
            Fasteners: Sleeve Nut / Sex Nut
            Max. Door Opening: 180 Degrees
            ADA: Meets requirements for Americans with Disabilities Act (ADA)
            Fire Rating: UL10c 90-minute positive pressure fire rating
            Certifications: ANSI/BHMA A156.19 certified Grade 1
            Warranty: 30-Year Limited Manufacturer Warranty
