*Discontinued* OBDStar - Keymaster DP Plus Programming Machine / Full Immobilizer Package A
*Discontinued* OBDStar - Keymaster DP Plus Programming Machine / Full Immobilizer Package A
This device is a new Android-based vehicle trouble diagnostic device developed for internet applications. It inherits from OBDSTAR advanced diagnosing technology and it is characterized by covering wide range of vehicles, featuring powerful function, and providing precise result. Through vehicle diagnostic OBD connector and variant mobile intelligent terminals, it achieves vehicle trouble diagnosis for full car model and full system vehicle. Meanwhile, taking advantage of mobile internet, this device integrates more application and service, such as Maintenance Database, remote assistant, One Key Upgrade etc.
Includes 2 Years of FREE Updates

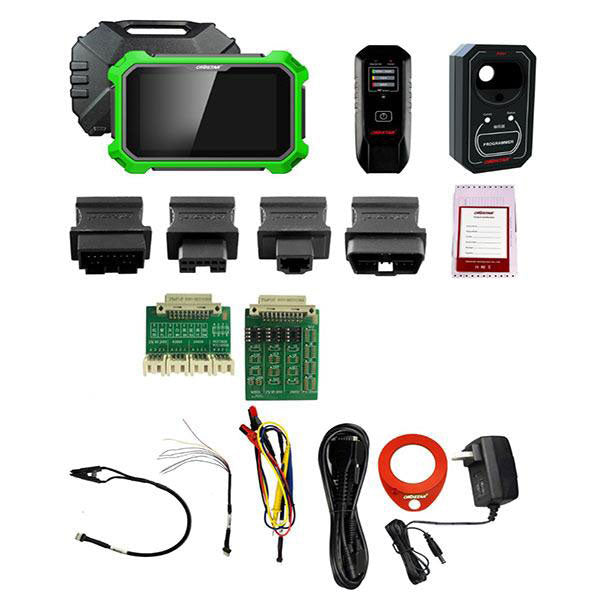

Full Immobilizer A Package Includes:
- 12V2A DC Charger
- Main Cable
- P001 Programmer Unit
- C001 / C002 Circuit Boards
- W001 Cable
- W002 Cable
- W003 Cable
- IMMO Induction Coil
- RT100
- OBD II-16 Connector
- HYUNDAI-10 Connector
- KIA-20 Connector
- HONDA-3 Connector
Details
Note - If you are using a hotspot, the device must connect to a 5G connection. If you are using an iPhone you must turn on Maximize Compatibility.
Hardware Advantages:
- Built-in VCI box
- 8-inch touchscreen
- Charge directly via OBD interface
- Practical and high-end gift box
- Industrial design with silicone case
- Back bracket design:prop on the steering wheel or stand on the table
- P001 programmer: EEPROM adapter + RFID adapter + Key Renew adapter
- Add the clip of reading SOP 8PIN EEPROM
- C001/C002 circuit board to read and write chip data with welding
- IMMO induction coil to detect the key induction coil failure of the vehicle.
- Add wiring harness of ECU reading by OBD (for ECU cloning and switch activation)
- IMMO:
- EEPROM
- Renew Key
- Key programming
- Remote programming
- Cluster Calibrate
- Diagnosis
Downloads:
Technical Specifications:
| Operation system | Android 5.1.1 |
| CPU | Exynos4418 Dual Core ARM Cortex A9 1.4GHz |
| Battery | 3700mA, rechargeable polymer lithium battery |
| Extension memory card | 32G Micro SD (TF) card supported |
| Memory capacity | 1GB |
| Storage capacity | 32GB |
| LCD | 8.0 inch |
| LCD resolution | 1280 x 800 |
| Touch screen | Capacitive touch screen |
| Camera | 5 mega rear-view camera |
| Wi-Fi | Supported |
| Working temperature | -10℃ ~ 55℃（14℉ ~ 131℉ ） |
| Storage temperature | -20℃ ~ 70℃（-4℉ ~ 158℉ ） |
