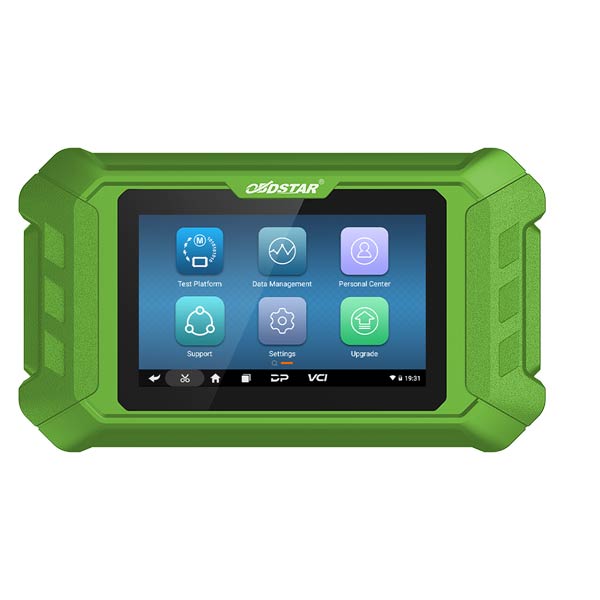

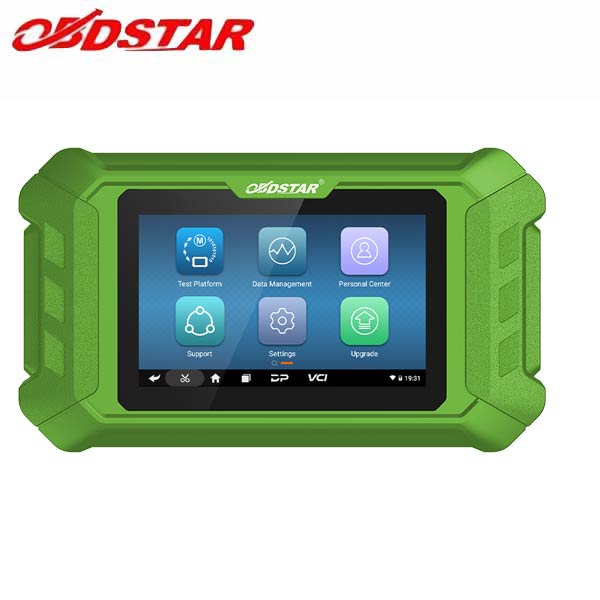

MT502 is an automotive compressor test platform by BENCH newly developed by OBDSTAR, which almost can power on an air conditioning compressor by sending CAN BUS signal, supporting most brands of electric scroll compressors.
It adopts latest 3.0 APK operating platform, is a good helper for automotive maintenance technicians.
Development Background
Nowadays, electric vehicles are generally equipped with an electric scroll compressor, which almost works by sending CANBUS signals from the air conditioning controller to the compressor to control its rotation. The MT502 can send a CANBUS signal to the compressor, so that the compressor can be tested and verified.
Functions:
- New android 5.1.1 operation system
- Simple and intuitive menu guidance allows you to quickly master the equipment operation
- Wi-Fi connection to the internet, one-click software upgrade
- Intelligent search, with help guide, easy to use
Advanced Functions
- Support hundreds of new energy compressor models
- Intelligent search(by make/ model/ part No./ ECU manufacturers/ MCU controller types)
- Exclusive 2 tow 7 low-voltage special connector, make wirings easy
- Exclusive 1+7 groups of high-voltage special cable, make operations safe
- Supports following car brands:
- BAIC
- BESTUNE
- BMW
- BRILLIANCE BMW
- BYD
- CHANGAN
- CHANGAN FORD
- CHERY
- CHTC
- DENZA
- FAW VOLKSWAGEN
- FOTON
- GAC TOYOTA
- GEELY
- GOLDEN DRAGON
- GREATWALL
- GREENWHEEL
- HAIMA
- HONGQI
- HOZON
- HUATAI
- IFC
- JAC
- JMC
- KAIRUI
- KING LONG
- LEAP MOTOR
- LI
- LIFAN
- MERCEDES-BEN
- NIO
- OLLIN
- RAJA
- RUIQI
- SAIC
- SAIC VOLKSWAGEN
- SERES
- SGM
- SHA
- SKYWORTH
- SOUTHEAST
- SUNLONG
- TESLA
- TRUMPCHI
- VICTORY
- VOLKSWAGEN
- VOLVO
- WM
- WULING
- XPENG
- YUDO
- YUEDA KIA
- YUEJIN
- ZOTYE
- Supports following car brands:
- BAIC
- BESTUNE
- BMW
Specifications
| Operation system |
Android 5.1.1 |
| CPU |
RK3128 quad-core ARM cortex A7 |
| Battery |
2600mA, rechargeable polymer lithium battery |
| Extension memory card |
32G micro SD (TF) card supported |
| LCD | 5.0 inch |
| LCD resolution |
800*480 |
| Touch Screen |
Capacitive touch screen |
| Wi-fi | Supported |
| Working temperature | -20℃~55℃ (14℉~131℉) |
| Storage temperature |
-20℃~70℃ (-4℉~158℉) |
| Weight |
About 700g |
| Dimension |
198mm*115mm*31mm |
