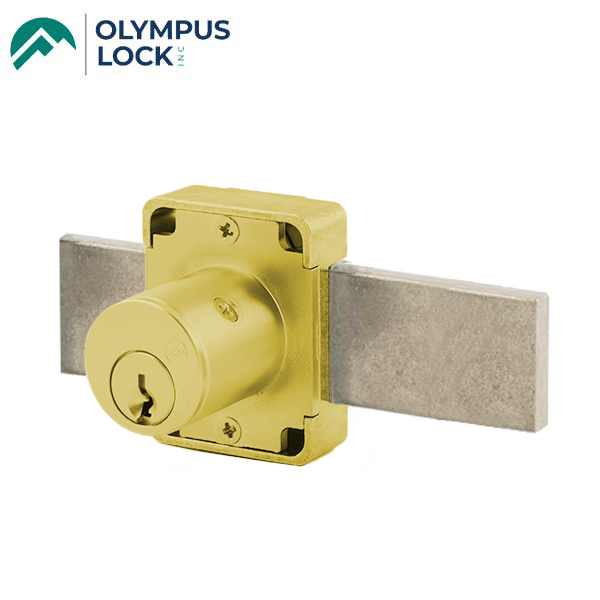

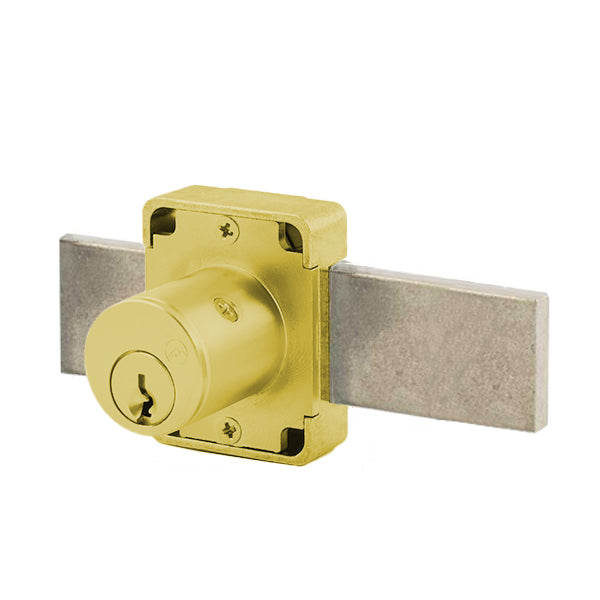

Olympus - 100DR - Cabinet Door Deadbolt Lock - Long Bolt - N Series National - 26D - Satin Brass - 15/16" - Optional Keying - Non Handed - Grade 1
Available to Order
SKU:
OLY-100-US478LB-101-KA
NSID:
33591
33592
33593
33598
33600
- $40.95
-
$43.14 - $40.95
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
OLY-100-US4XXXX (Long Bolt)
N Series National Keyway Cabinet Drawer Deadbolt Lock.
Easily rekeyable via rear set screws.
More Information Below
SPECIFICATIONS
| Function | Cabinet Door Lock |
| Cylinder | National N Series (equivalent to National D4291 4-pin ) Keyway w/ 2 keys per lock |
| Keyed Alike | 101, 103, 107, 915 |
| Cylinder Length | 15/16" |
| Barrel Diameter |
7/8" |
| Functions | Key removable in locked or unlocked position. Standard function locks are non-handed. |
| Body | Zinc die cast |
| Finish | US4 - Satin Brass |
| Includes |
- 2 keys - 56-1 bar strike -lock mounting screws |
| Certifications | Passed ANSI/BHMA A156.11 Grade 1 performance requirements |
