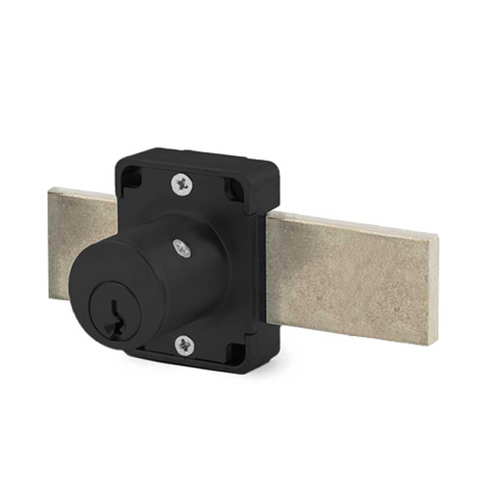

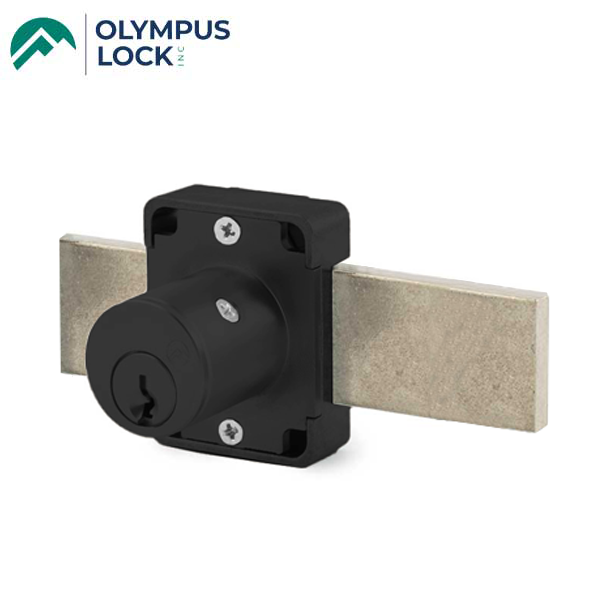

Olympus - 100DR - Deadbolt Door Lock - D4291 4-pin - Long Bolt - N Series National - Matte Black - 15/16" - Optional Keying - Non Handed - Grade 1
- Product SKU: OLY-100-US1978LB-101-KA
- NSID:
-
OLY-100-US19XXXX (Long Bolt)
D4291 4-pin Keyway Deadbolt Door Lock.
Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.
Features:- N Series: (equivalent to National D4291 4-pin system)
- Standard cabinet deadbolt door lock
- Easily rekeyable via set screw cylinder release mechanism
- (E07121) ANSI/BHMA Grade 1
- Barrel length: 15/16"
- Barrel diameter: 7/8"
Specifications:
| Function | Deadbolt Door lock |
| Cylinder | N Series: (equivalent to National D4291 4-pin system) |
| Keyed Alike | 101, 103, 107, 915 |
| Cylinder Length |
15/16" |
| Barrel Diameter | 7/8" |
| Bolt Length | Long Bolt |
| Handing |
Non Handed |
| Function | Key removable in locked or unlocked position |
| Body | Zinc Die Cast |
| Finish | US19 Matte Black |
| Includes | 2 keys, 56-1 bar strike, and lock mounting screws |
| Certifications | Passed ANSI/BHMA A156.11 Grade 1 performance requirements. Equivalent to E07121. |
Downloads:
