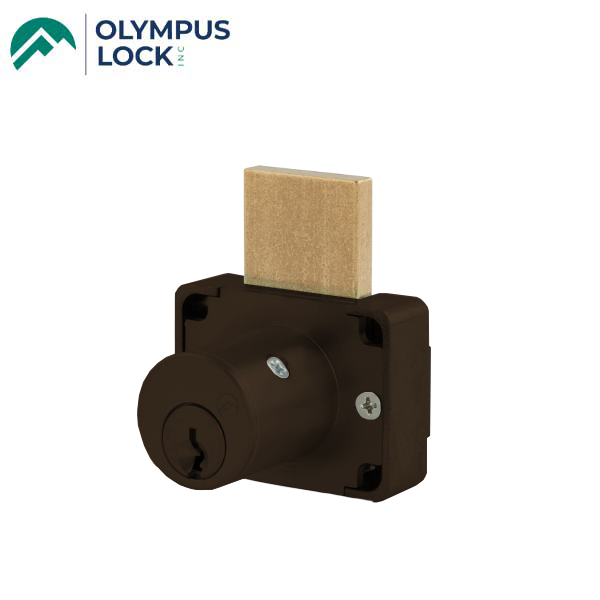

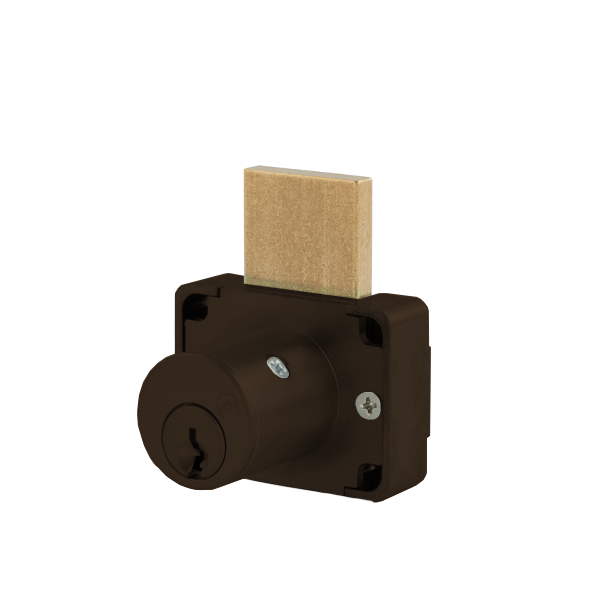

Olympus - 200DW - Drawer Deadbolt Lock - N Series National - D4291 4-pin - Key Retaining - Optional Cylinder Length - Standard Length Bolt - Oil Rubbed Bronze - Optional Keying - Grade 1
- Product SKU: OLY-200KI10B138-101-KA
- NSID:
-
OLY-200-(KI/KV)-10BXXXX (Regular Bolt)
D4291 4-pin Keyway Deadbolt Cabinet Lock.
Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.
Features:- N Series: D4291 4-pin Keyway
- Drawer deadbolt cabinet lock
- Easily rekeyable via set screw cylinder release mechanism
- ( E07041) ANSI/BHMA Grade 1
- Cylinder length: Optional lengths 15/16" or 1-3/8"
- Barrel diameter: 7/8"
Specifications:
| Function | Deadbolt Cabinet lock |
| Cylinder | N Series (equivalent to D4291 4-pin system) w/ 2 keys per lock |
| Keyed Alike | 101, 103, 107, 915, KD |
| Cylinder Length |
15/16" or 1-3/8" |
| Barrel Diameter | 7/8" |
| Bolt Length | Standard length bolt |
| Handing |
Vertical or Inverted Handing |
| Function | Key removable in locked position only |
| Body | Zinc Die Cast |
| Finish | Oil Rubbed Bronze |
| Includes | 2 keys, 56-1 bar strike, and lock mounting screws. |
| Certifications | Passed ANSI/BHMA A156.11 Grade 1 performance requirements. Equivalent to E07041(200DW). |
Downloads:
