Olympus - 200DW - Drawer Deadbolt Lock - D4291 4-pin - Optional Cylinder Length - Standard Length Bolt - Satin Chrome - Optional Keying - Grade 1 - UHS Hardware
Olympus - 200DW - Drawer Deadbolt Lock - D4291 4-pin - Optional Cylinder Length - Standard Length Bolt - Satin Chrome - Optional Keying - Grade 1 - UHS Hardware

Olympus - 200DW - Drawer Deadbolt Lock - D4291 4-pin - Optional Cylinder Length - Standard Length Bolt - Satin Chrome - Optional Keying - Grade 1

In Stock
SKU: OLY-200-26D78-101-KA
NSID: 21431 33732 6309 6310 33733 33734 33735 33736 21430 33696 33697 33698 33703 33699 33700 33701 33702 33705 33714 33715 33716 33721 33717 33718 33719 33720 33723

Get it shipped ! Order within:

Get it shipped ! Order within:

Get an Extra Hour with

$26.18
$27.99
$26.18

OLY-200-26DXXXX (Standard Bolt)

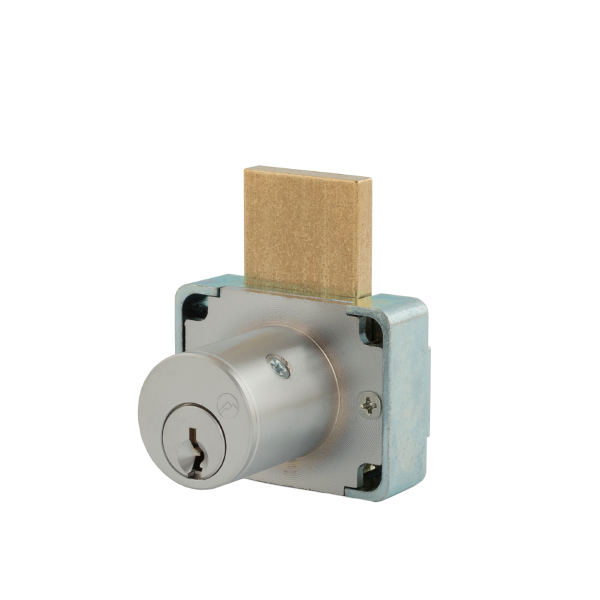

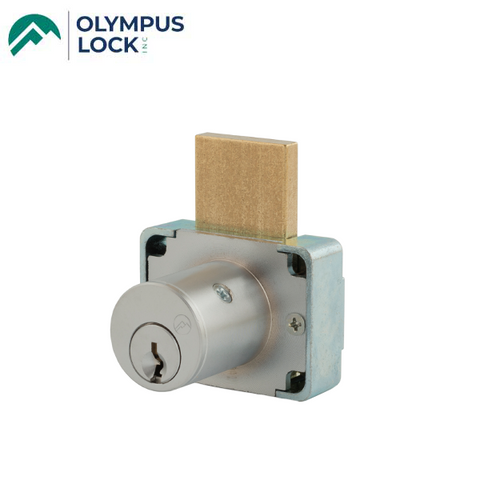

D4291 4-pin Keyway Drawer Deadbolt Lock.

Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.


Features:

  • N Series: D4291 4-pin Keyway
  • Drawer deadbolt door lock
  • Easily rekeyable via set screw cylinder release mechanism
  • ( E07041) ANSI/BHMA Grade 1
  • Cylinder length: Optional lengths 15/16" or 1-5/8"
  • Barrel diameter: 7/8"
Call 1-800-878-6604 for Bulk / Dealer Pricing!
Cylinder Length: 15/16"
Keying: Keyed Alike - 101-KA

Specifications:

Function Deadbolt drawer lock
Cylinder N Series (equivalent to D4291 4-pin system) w/ 2 keys per lock
Keyed Alike 101, 103, 107, 915, 51001, 51002, 51003, 51004
Cylinder Length
15/16" or 1-5/8"
Barrel Diameter 7/8"
Bolt Length Standard length bolt
Handing
Non-handed
Function Key removable in locked or unlocked position
Body Zinc Die Cast
Finish Satin Chrome
Includes 2 keys, 56-1 bar strike, and lock mounting screws.
Certifications Passed ANSI/BHMA A156.11 Grade 1 performance requirements. Equivalent to E07121(100DR) / E07041(200DW).
