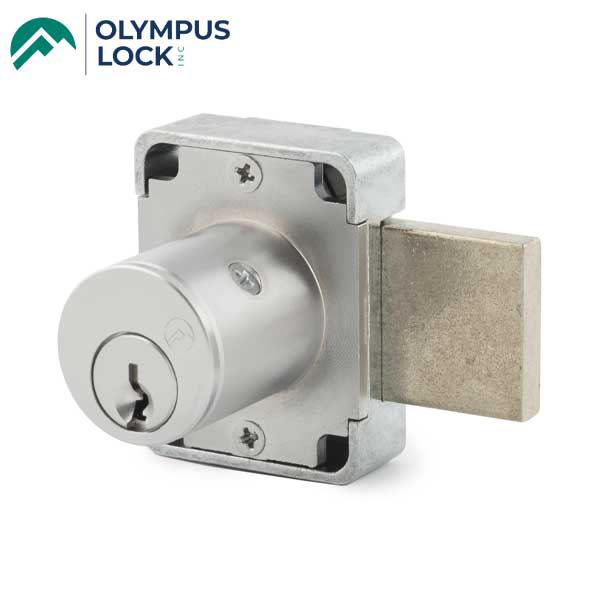

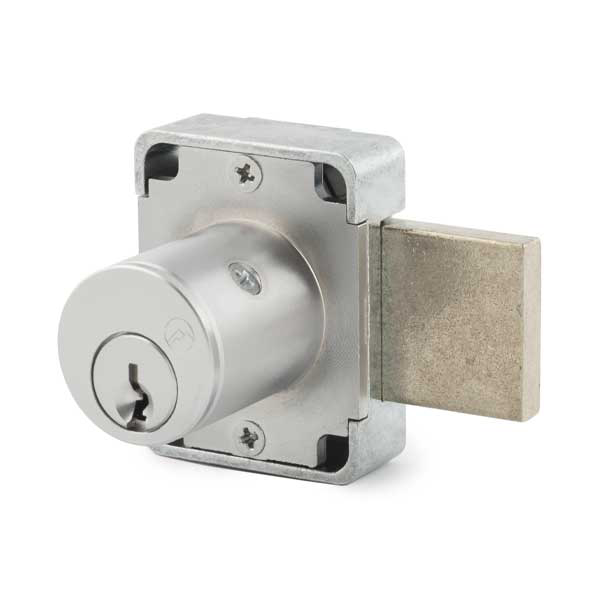

Olympus - 500DR - Cabinet Door Deadbolt Lock - Key Retaining - CCL R1 - Optional Cylinder Length - Standard Length Bolt - Satin Chrome - Optional Keying - Optional Handing - Grade 1 - UHS Hardware
Olympus - 500DR - Cabinet Door Deadbolt Lock - Key Retaining - CCL R1 - Optional Cylinder Length - Standard Length Bolt - Satin Chrome - Optional Keying - Optional Handing - Grade 1 - UHS Hardware

Olympus - 500DR - Cabinet Door Deadbolt Lock - Key Retaining - CCL R1 - Optional Cylinder Length - Standard Length Bolt - Satin Chrome - Optional Keying - Optional Handing - Grade 1

Available to Order
SKU: OLY-500KL26D138-4T2-KA
NSID: 34385 34389 34405 34409 34386 34390 34406 34410 34388 34392 34408 34412

Please Note: This product ships within 2 Days

$34.92
$39.91
$34.92

OLY-500KL26DXXXX (Regular Bolt)

CCL R1 Keyway Door Deadbolt Lock.

Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.


Features:

  • R Series: CCL R1 Keyway
  • Cabinet deadbolt door lock
  • Key Retaining
  • Easily rekeyable via set screw cylinder release mechanism
  • (E07121) ANSI/BHMA Grade 1
  • Cylinder length: Optional 15/16" or 1-3/8"
  • Barrel diameter: 7/8"
Call 1-800-878-6604 for Bulk / Dealer Pricing!
Keying: Keyed Alike - 4T2-KA
Handing: Left Handed
Cylinder Length: 1-3/8"

Specifications:

Function Deadbolt door lock key retaining
Cylinder R Series (equivalent to CCL R1 system) w/ 2 keys per lock
Keyed Alike KA 4T3 or 4T2
Cylinder Length
15/16"
Barrel Diameter 7/8"
Bolt Length Standard length bolt
Handing
Left or Right option
Function Key removable in locked position
Body Zinc Die Cast
Finish Oil Rubbed Bronze
Includes 2 keys, 56-1 bar strike, and lock mounting screws.
Certifications Passed ANSI/BHMA A156.11
Grade 1 performance requirements. Equivalent to
E07121(500DR) / E07041(600DW).
