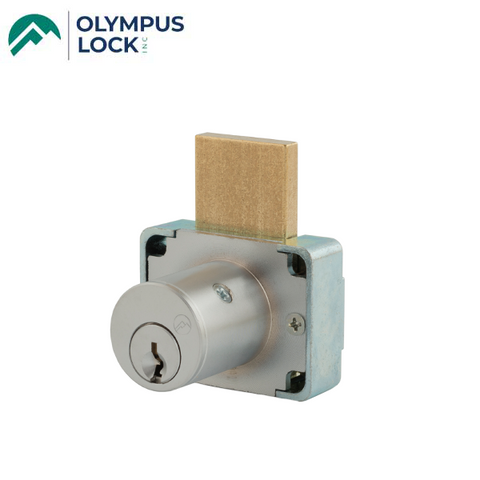

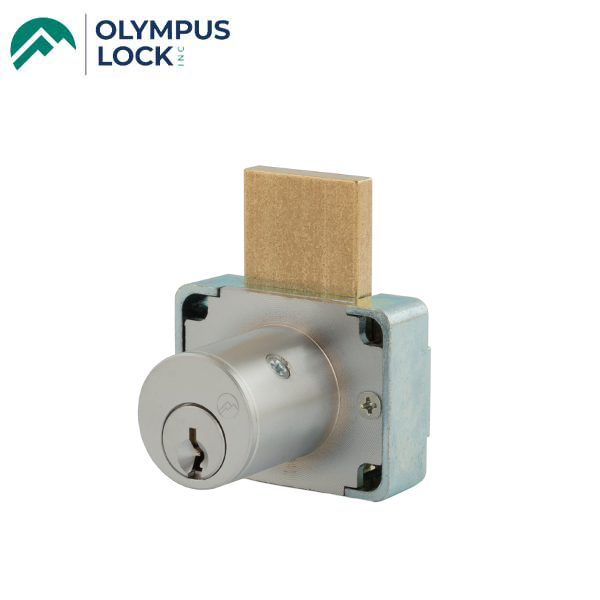

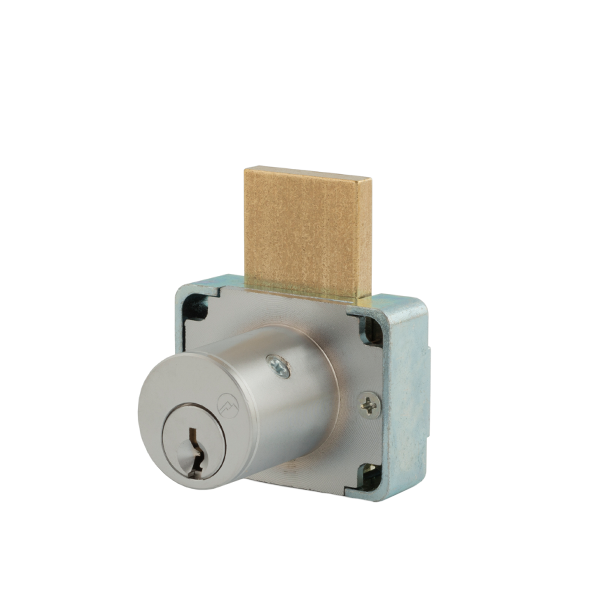

*Discontinued* Olympus - 600DW - Drawer Deadbolt Lock - Key Retaining - CCL R1 - Optional Cylinder Length - Satin Chrome - Optional Keying - Optional Handing - Grade 1
Out of Stock
SKU:
OLY-600KV26D78-4T2-KA
NSID:
34546
34522
34547
34523
34549
34525
34542
34518
34543
34519
34545
34521
- $38.50
-
$46.20 - $38.50
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
OLY-600KI26DXXXX (Regular Bolt)
CCL R1 Keyway Door Deadbolt Lock Key Retaining.
Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.
Features:
- R Series: CCL R1 Keyway
- Key retaining
- Drawer deadbolt lock
- Easily rekeyable via set screw cylinder release mechanism
- (E07121) ANSI/BHMA Grade 1
- Cylinder length: Optional lengths 15/16" or 1-3/8"
- Barrel diameter: 7/8"
- $38.50
-
$46.20 - $38.50
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xSpecifications:
| Function | Deadbolt drawer lock |
| Cylinder | R Series (equivalent to CCL R1 system) w/ 2 keys per lock |
| Keyed Alike | KA 4T3 or 4T2 |
| Cylinder Length |
15/16" or 1-3/8" |
| Barrel Diameter | 7/8" |
| Bolt Length | Standard Length Bolt |
| Handing |
Vertical and Inverted Handing |
| Function | Key removable in locked position only |
| Body | Zinc Die Cast |
| Finish | Satin Chrome |
| Includes | 2 keys, 56-1 bar strike, and lock mounting screws. |
| Certifications | Passed ANSI/BHMA A156.11 Grade 1 performance requirements. Equivalent to E07121(500DR) / E07041(600DW). |
Downloads:
