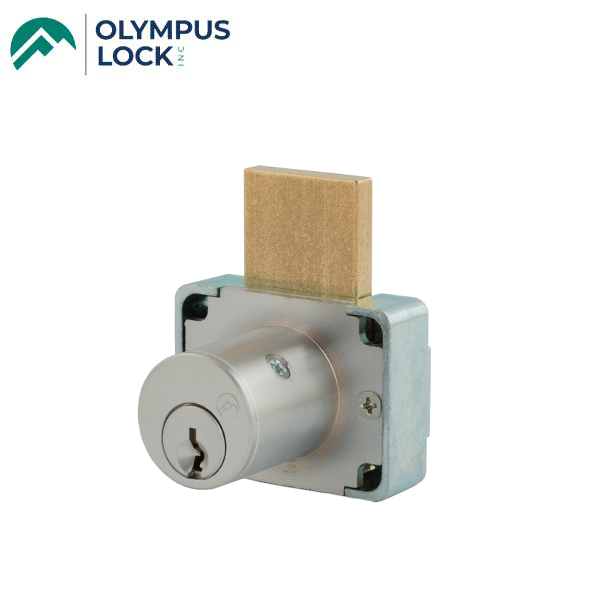

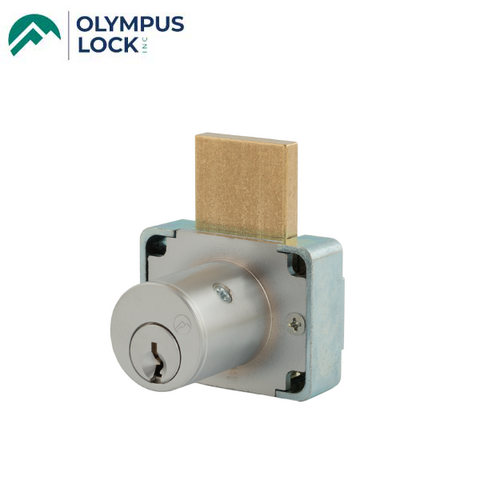

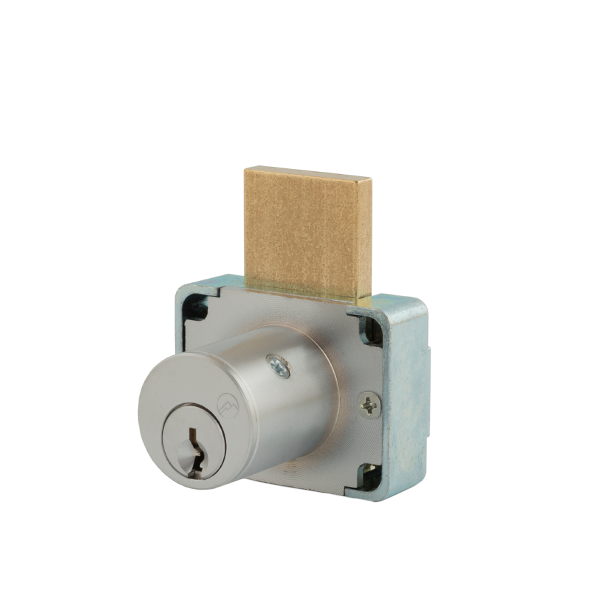

Olympus - 600M - Drawer Deadbolt Lock - MRI Function - CCL R1 - Optional Cylinder Length - Standard Length Bolt - Satin Chrome - Optional Keying - Grade 1
Available to Order
SKU:
OLY-600M26D78-4T2-KA
NSID:
34566
34567
34569
34558
34559
34561
- $38.40
-
$43.88 - $38.40
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
OLY-500M26DXXXX (Regular Bolt)
CCL R1 Keyway Door Deadbolt Lock.
Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.
Features:
- R Series: CCL R1 Keyway
- MRI locks are made of all non-magnetic materials and components specifically for use in MRI medical applications.
- Drawer deadbolt door lock
- Easily rekeyable via set screw cylinder release mechanism
- (E07121) ANSI/BHMA Grade 1
- Cylinder length: Optional lengths 15/16" or 1-3/8"
- Barrel diameter: 7/8"
Specifications:
| Function | Deadbolt drawer lock non-magnetic |
| Cylinder | R Series (equivalent to CCL R1 system) w/ 2 keys per lock |
| Keyed Alike | KA 4T3 or 4T2 |
| Cylinder Length |
15/16" or 1-3/8" |
| Barrel Diameter | 7/8" |
| Bolt Length | Standard length bolt |
| Handing |
Non-handed |
| Function | Key removable in locked or unlocked position |
| Body | Zinc Die Cast (Non-magnetic) |
| Finish | Satin Chrome |
| Includes | 2 keys, 56-1 bar strike, and lock mounting screws. Non-magnetic |
| Certifications | Passed ANSI/BHMA A156.11 Grade 1 performance requirements. Equivalent to E07121(500DR) / E07041(600DW). |
