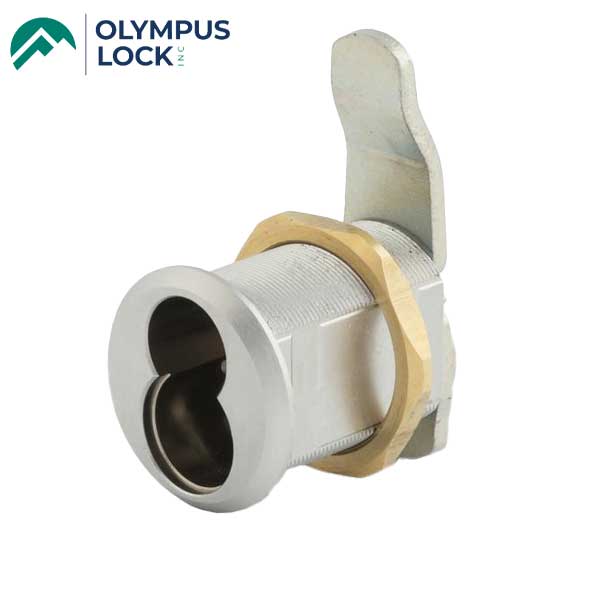

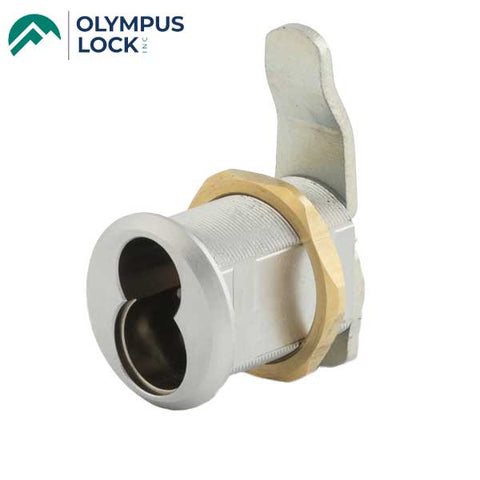

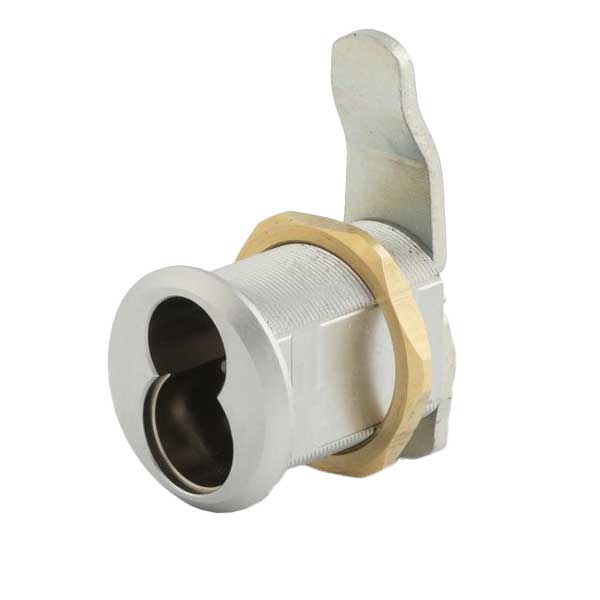

Olympus - 720LM/DM - IC Core Cam Lock - BEST SFIC - 26D - Satin Chrome - Grade 1
Olympus - 720LM/DM - IC Core Cam Lock - BEST SFIC - 26D - Satin Chrome - Grade 1
Olympus - 720LM/DM - IC Core Cam Lock - BEST SFIC - 26D - Satin Chrome - Grade 1
Olympus - 720LM/DM - IC Core Cam Lock - BEST SFIC - 26D - Satin Chrome - Grade 1
Olympus - 720LM/DM - IC Core Cam Lock - BEST SFIC - 26D - Satin Chrome - Grade 1

Olympus - 720LM/DM - IC Core Cam Lock - BEST SFIC - 26D - Satin Chrome - Grade 1

$27.20 $43.82
Available: In Stock
Wishlist
  • Product SKU: OLY-720LM/DM-26D
  • OLY-720LM/DM-26D
    Item Number: 8284

    Interchangeable Core Best Compatible (Small Format) Cam Lock.

    The Olympus Lock 720 cam lock will accept a Best Keyways interchangeable core allowing your cabinet locks to match the same key system as the rest of the facility.  The 720LM/DM Cam Lock retrofits original Best part number 1E7E4. The lock will accept standard SFIC cores such as Best, Arrow, Falcon or equivalent.

    More Information Below

    $27.20

SPECIFICATIONS

Function Cam lock
Retrofits Best 1E7E4
Cylinder diameter 1-1/8"
Across flats 7/8"
Max. material thickness 1-1/8"
Min. material thickness 0.08"
Functions Includes parts for key-retaining or non-key-retaining function.
Cam installation See PDF Link Below for full instructions
Body Zinc die cast
Mounting slot Vertical
Bolt type Round spring bolt
Finish 26D - Satin Chrome
Cores Not Included
Accepts Best, Arrow, Falcon, KSP, Schlage SFIC or
equivalent small format interchangeable cores
Compatible electronic cylinders Medeco Nexgen XT or VIDEX CyberLock SFIC cylinders
Includes - 725-PA plastic thumbturn
- 720-PL3 stabilizer plate
- 725-1 spacer to fit 6 or 7 pin cores
- 720-3-1 short inverted cam
- 720-3-2 long vertical cam
- 720-CDLM lost motion cam shifter
- 720-CDDM key retaining door cam shifter
- 720-KR key retaining drawer cam shifter
Cerifications Passed ANSI/BHMA A156.11 Grade 1
performance requirements




Downloads

OLY-720LM/DM-26D
Item Number: 8284

Interchangeable Core Best Compatible (Small Format) Cam Lock.

The Olympus Lock 720 cam lock will accept a Best Keyways interchangeable core allowing your cabinet locks to match the same key system as the rest of the facility.  The 720LM/DM Cam Lock retrofits original Best part number 1E7E4. The lock will accept standard SFIC cores such as Best, Arrow, Falcon or equivalent.

More Information Below

SPECIFICATIONS

Function Cam lock
Retrofits Best 1E7E4
Cylinder diameter 1-1/8"
Across flats 7/8"
Max. material thickness 1-1/8"
Min. material thickness 0.08"
Functions Includes parts for key-retaining or non-key-retaining function.
Cam installation See PDF Link Below for full instructions
Body Zinc die cast
Mounting slot Vertical
Bolt type Round spring bolt
Finish 26D - Satin Chrome
Cores Not Included
Accepts Best, Arrow, Falcon, KSP, Schlage SFIC or
equivalent small format interchangeable cores
Compatible electronic cylinders Medeco Nexgen XT or VIDEX CyberLock SFIC cylinders
Includes - 725-PA plastic thumbturn
- 720-PL3 stabilizer plate
- 725-1 spacer to fit 6 or 7 pin cores
- 720-3-1 short inverted cam
- 720-3-2 long vertical cam
- 720-CDLM lost motion cam shifter
- 720-CDDM key retaining door cam shifter
- 720-KR key retaining drawer cam shifter
Cerifications Passed ANSI/BHMA A156.11 Grade 1
performance requirements




Downloads

Compatible With
