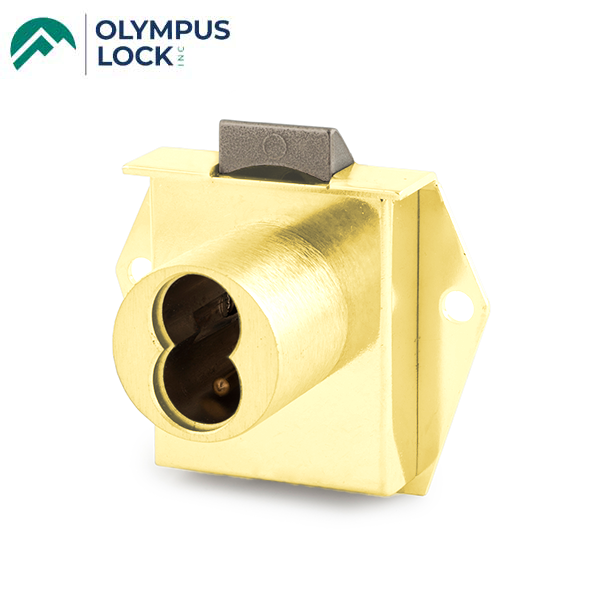

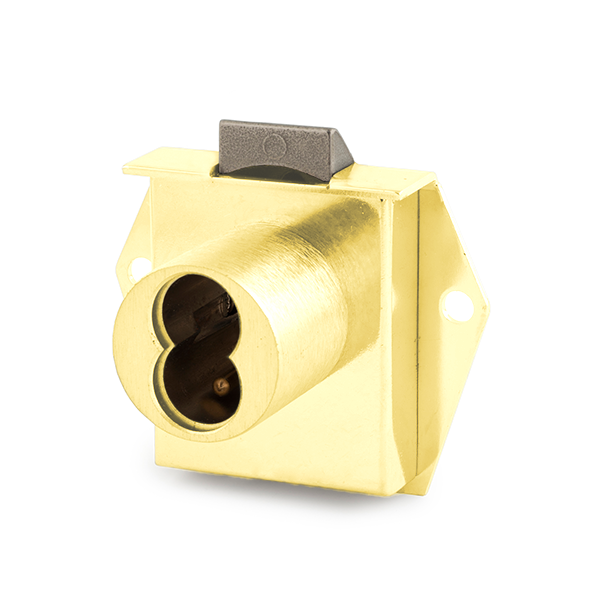

Olympus - 725ML - SFIC Mortise Latch Door & Drawer Cabinet Lock - BEST SFIC - 1-1/16" Cylinder Length - Polished Brass - Optional Handing - Grade 1
- Product SKU: OLY-725ML-DR-LH-US3
- NSID:
-
OLY-725ML-DRXXXX
SFIC Mortise Latch Door & Drawer Cabinet Lock
Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.
Features:
- Cabinet lock - Mortise mount
- Latchbolt locking mechanism
- Retrofits Best 5L series cabinet locks
- ANSI/BHMA E07091 (cabinet door)
- ANSI/BHMA E07061 (drawer)
- Accepts Best, Arrow, Falcon or equivalent small format interchangeable core cylinders.
- Accepts 6 or 7 pin SFIC cores. See our SFIC compatible cylinders
- Barrel diameter: 1-1/8"
- Standard barrel length: 1-1/16"
- Cabinet lock - Mortise mount
SPECIFICATIONS
| Retrofits | Best 5L7ML |
| Function | Mortise mounted latch |
| Handing | Available for doors or drawers |
| Testing | Passed ANSI/BHMA A156.11 Grade 1 performance requirements. |
| Barrel diameter | 1-1/8” |
| Cylinder length |
1-1/16” |
| Finish | Polished Brass US3 |
| Cores | Not included |
| Accepts |
Best, Arrow, Falcon, KSP, Schlage SFIC or equivalent small format interchangeable cores |
| Compatible electronic cylinders | Medeco Nexgen XT or VIDEX CyberLock SFIC cylinders. |
| Included Accessories |
725-1 spacer to fit 6 or 7 pin cores |
Downloads
