Olympus - 725ML - SFIC Mortise Latch Door & Drawer Cabinet Lock - BEST SFIC - Optional Cylinder Length - Satin Chrome - Optional Handing - Optional Reverse Latch - Grade 1
- $37.28
-
$42.60 - $37.28
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
OLY-725ML-DRXXXX

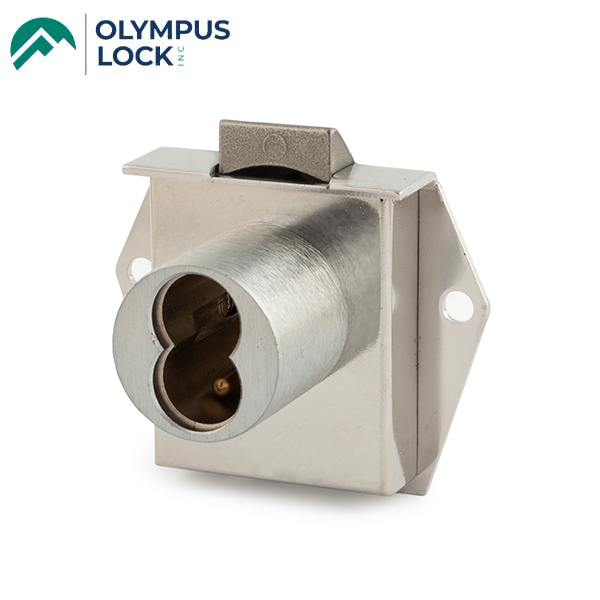

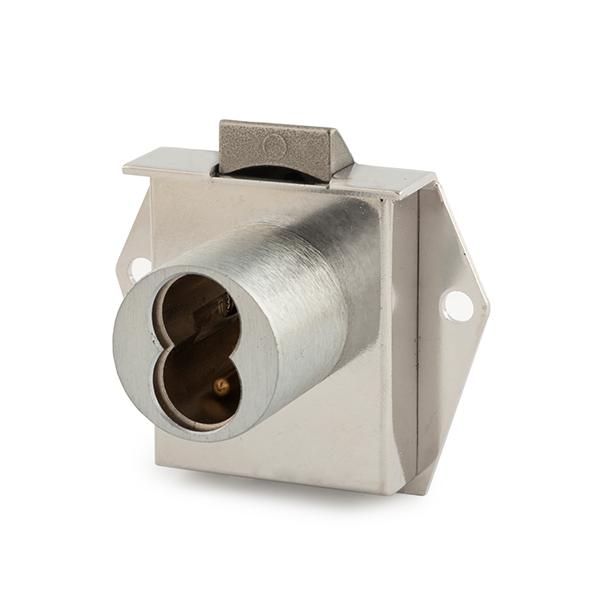

SFIC Mortise Latch Door & Drawer Cabinet Lock
Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.
Features:
- Cabinet lock - Mortise mount
- Latchbolt locking mechanism
- Retrofits Best 5L series cabinet locks
- ANSI/BHMA E07091 (cabinet door)
- ANSI/BHMA E07061 (drawer)
- Reverse latch function available for DW-VH or DW-IH applications
- Accepts Best, Arrow, Falcon or equivalent small format interchangeable core cylinders.
- Accepts 6 or 7 pin SFIC cores. See our SFIC compatible cylinders
- Barrel diameter: 1-1/8"
- Standard barrel length: 1-1/16"
SPECIFICATIONS
| Retrofits | Best 5L7ML |
| Function | Mortise mounted latch |
| Handing | Available for doors or drawers |
| Reverse latch |
This option is available for vertical or inverted function. |
| Testing | Passed ANSI/BHMA A156.11 Grade 1 performance requirements. |
| Barrel diameter | 1-1/8” |
| Cylinder length |
1-1/16” or 1-3/8" |
| Finish | Satin Chrome 26D |
| Cores | Not included |
| Accepts |
Best, Arrow, Falcon, KSP, Schlage SFIC or equivalent small format interchangeable cores |
| Compatible electronic cylinders | Medeco Nexgen XT or VIDEX CyberLock SFIC cylinders. |
| Included Accessories |
725-1 spacer to fit 6 or 7 pin cores |
Downloads
