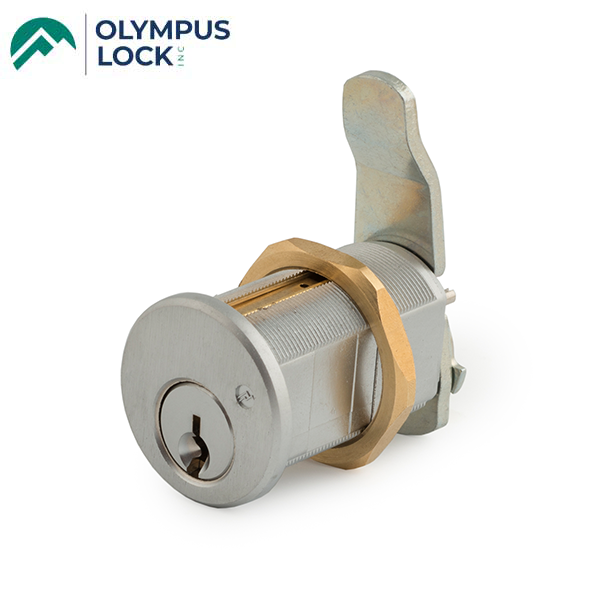

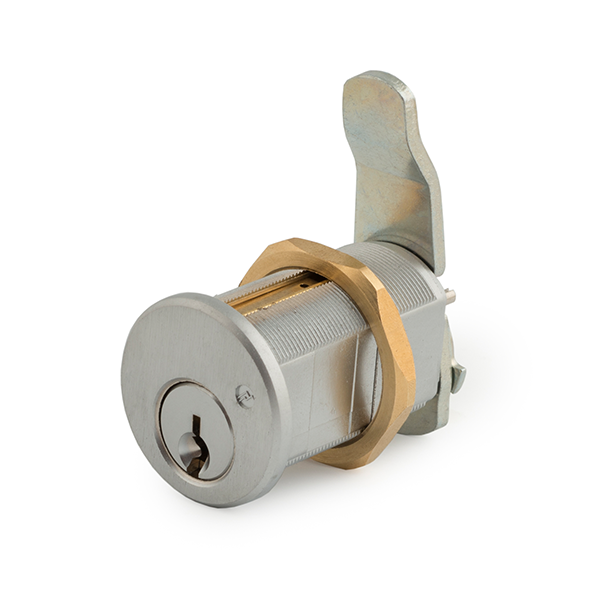

Olympus - 820S - S Series: Schlage C Keyway Cam Lock - 7/8" Cylinder Diameter - Satin Chrome - Grade 1
Olympus - 820S - S Series: Schlage C Keyway Cam Lock - 7/8" Cylinder Diameter - Satin Chrome - Grade 1
Olympus - 820S - S Series: Schlage C Keyway Cam Lock - 7/8" Cylinder Diameter - Satin Chrome - Grade 1
Olympus - 820S - S Series: Schlage C Keyway Cam Lock - 7/8" Cylinder Diameter - Satin Chrome - Grade 1
Olympus - 820S - S Series: Schlage C Keyway Cam Lock - 7/8" Cylinder Diameter - Satin Chrome - Grade 1

Olympus - 820S - S Series: Schlage C Keyway Cam Lock - 7/8" Cylinder Diameter - Satin Chrome - Grade 1

Availability: Available to Order
  • Product SKU: OLY-820S-26D-102-KA
  • NSID:
  • OLY-820S-26DXXXX

    LC Series: Less Cylinder Cam Lock.

    Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.


    Features:

    • Cam lock
    • Easily rekeyable via rear set screws
    • Will accept other manufacturer's Schlage compatible deadbolt cylinders
    • ANSI/BHMA: E07261
    • Cylinder diameter: 1-1/8
    • Across flats: 7/8"
    • Mounting cutout: 1-5/32"
    • Max. material thickness: 1-3/8"

    Please Note: This product has a lead time
    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs

Specifications:

Rekeyable Easily rekeyable via set screw on back
of lock body
Cylinder diameter 1-1/8"
Across flats
7/8"
Max. material thickness 1-3/8"
Min. material thickness 0.08"
Body Zinc die cast
Functions Includes parts for key-retaining or nonkey-retaining
Finish Satin Chrome
Cylinder Solid brass, pin tumbler
Keying - 101 Keyed Alike
- 102 Keyed Alike
- O-Bit Keyed Alike
- Keyed Different
Includes - 720-PL3 anti-rotation plate
- 720-3-1 short inverted cam
- 720-3-2 long vertical cam
- 720-CDLM lost motion cam shifter
- 720-CDDM key retaining door cam shifter
- 720-KR key retaining drawer cam shifter



Downloads:

OLY-820S-26DXXXX

LC Series: Less Cylinder Cam Lock.

Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.


Features:

  • Cam lock
  • Easily rekeyable via rear set screws
  • Will accept other manufacturer's Schlage compatible deadbolt cylinders
  • ANSI/BHMA: E07261
  • Cylinder diameter: 1-1/8
  • Across flats: 7/8"
  • Mounting cutout: 1-5/32"
  • Max. material thickness: 1-3/8"

Specifications:

Rekeyable Easily rekeyable via set screw on back
of lock body
Cylinder diameter 1-1/8"
Across flats
7/8"
Max. material thickness 1-3/8"
Min. material thickness 0.08"
Body Zinc die cast
Functions Includes parts for key-retaining or nonkey-retaining
Finish Satin Chrome
Cylinder Solid brass, pin tumbler
Keying - 101 Keyed Alike
- 102 Keyed Alike
- O-Bit Keyed Alike
- Keyed Different
Includes - 720-PL3 anti-rotation plate
- 720-3-1 short inverted cam
- 720-3-2 long vertical cam
- 720-CDLM lost motion cam shifter
- 720-CDDM key retaining door cam shifter
- 720-KR key retaining drawer cam shifter



Downloads:
