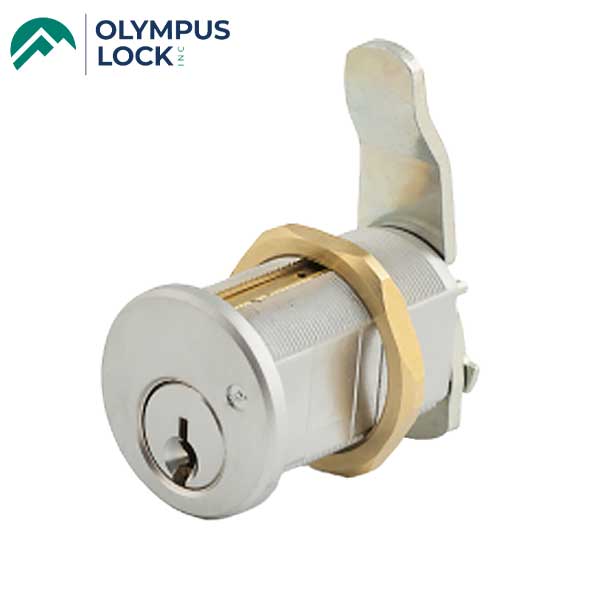

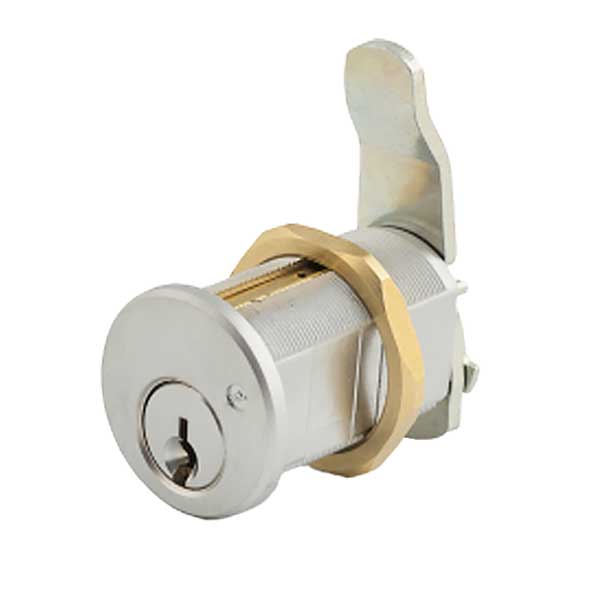

Olympus - 820SC - Cam Lock - Schlage C - 26D - Satin Chrome - KA 101 - Grade 1
Olympus - 820SC - Cam Lock - Schlage C - 26D - Satin Chrome - KA 101 - Grade 1
Olympus - 820SC - Cam Lock - Schlage C - 26D - Satin Chrome - KA 101 - Grade 1
Olympus - 820SC - Cam Lock - Schlage C - 26D - Satin Chrome - KA 101 - Grade 1
Olympus - 820SC - Cam Lock - Schlage C - 26D - Satin Chrome - KA 101 - Grade 1

Olympus - 820SC - Cam Lock - Schlage C - 26D - Satin Chrome - KA 101 - Grade 1

$37.76 $60.52
Available: In Stock
Wishlist
  • Product SKU: OLY-820SC-26D-101
  • OLY-820SC-26D-101
    Item Number: 8287

    Schalge C Keyway Cam Lock.

    Easily rekeyable via rear set screws. Will accept other manufacturer's Schlage compatible deadbolt cylinders


    More Information Below

    $37.76

SPECIFICATIONS

Function Cam lock
Cylinder  Schlage "C" Keyway w/ 2 Keys Per Lock
Keyed Alike KA 101
Cylinder diameter 1-1/8"
Across flats 7/8"
Max. material thickness 1-3/8"
Min. material thickness 0.08"
Functions Includes parts for key-retaining or non-key-retaining function.
Cam installation See PDF Link Below for full instructions
Body Zinc die cast
Finish 26D - Satin Chrome
Includes - 720-PL3 anti-rotation plate
- 720-3-1 short inverted cam
- 720-3-2 long vertical cam
- 720-CDLM lost motion cam shifter
- 720-CDDM key retaining door cam shifter
- 720-KR key retaining drawer cam shifter
Cerifications Passed ANSI/BHMA A156.11 Grade 1
performance requirements
