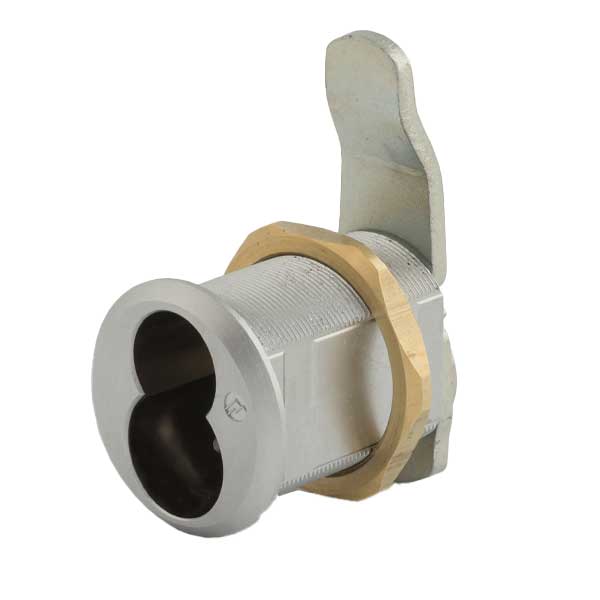

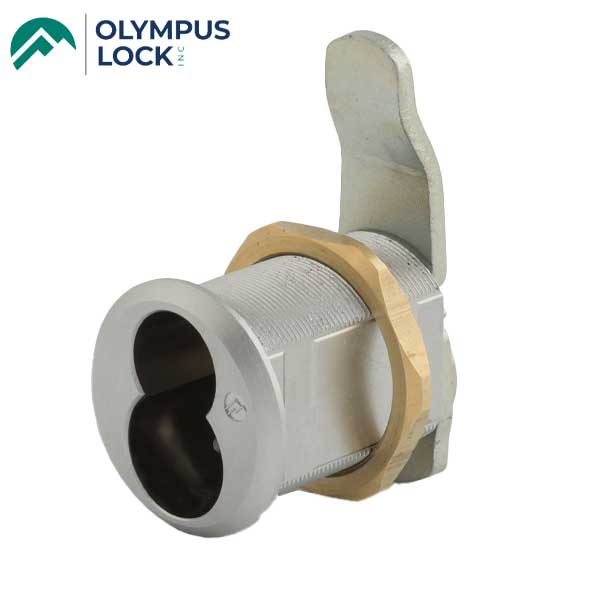

*Discontinued* Olympus - 920LM/DM - IC Core Cam Lock - BEST LFIC - 26D - Satin Chrome - Grade 1

*Discontinued* Olympus - 920LM/DM - IC Core Cam Lock - BEST LFIC - 26D - Satin Chrome - Grade 1

Discontinued
NSID 6302
$31.53$50.80On Sale You save $19.27 (38%)

OLY-920LM/DM-26D

Interchangeable Core Best Compatible (Large Format) Cam Lock.

The Olympus Lock 920 cam lock will accept a Best Keyways interchangeable core allowing your cabinet locks to match the same key system as the rest of the facility.

More Information Below

View full details

Details

SPECIFICATIONS

Function Cam lock
Cylinder diameter 1-1/8"
Across flats 7/8"
Max. material thickness 1-3/16"
Min. material thickness 0.08"
Functions Includes parts for key-retaining or non-key-retaining function.
Cam installation See PDF Link Below for full instructions
Body Zinc die cast
Mounting slot Vertical
Bolt type Round spring bolt
Finish 26D - Satin Chrome
Cores Not Included
Accepts - Schlage large format/full-size IC cylinders
- Schlage Quad, Numbered Section, and Schlage
Classic IC cores
- Schlage Primus® and Everest large format IC
cores
- Mul-T-Lock large format IC cores or
equivalent large format interchangeable cores
Compatible electronic cylinders VIDEX
CyberLock LFIC cylinders
Includes - 7788-PA-D actuator to operate lock without core
- 720-PL3 anti-rotation plate
- 720-3-1 short inverted cam
- 720-3-2 long vertical cam
- 720-CDLM lost motion cam shifter
- 720-CDDM key retaining door cam shifter
- 720-KR key retaining drawer cam shifter
Certifications Passed ANSI/BHMA A156.11 Grade 1
performance requirements
