Olympus - L78LC - S Series Latch Lock - Less Cylinder - Optional Cylinder Length - Satin Chrome - Optional Handing
Available to Order
SKU:
OLY-L78L-LCA-26D
NSID:
35767
35769
35787
35789
35747
35749
35810
35812
- $54.04
-
$61.76 - $54.04
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
OLY-L78-LCXXXX

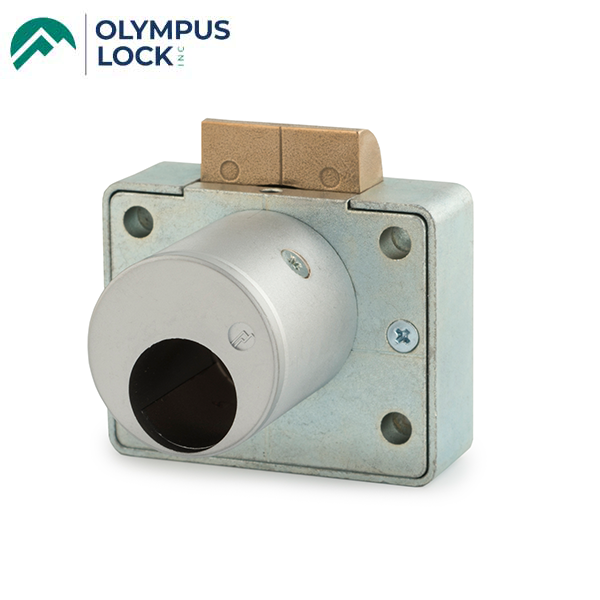

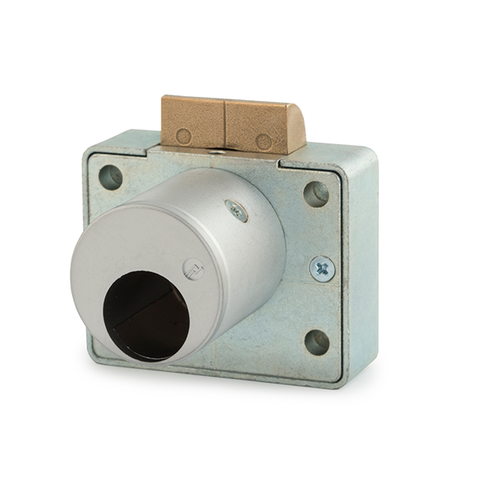

S Series Latch Lock
Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.
Features:
- Cabinet lock - door/drawer latch lock (less cylinder)
- Field reversible into all 4 handings. Handings can be easily changed in the field.
- Easily rekeyable via cylinder release mechanism
- Will accept other manufacturer's Schlage compatible key-in-knob style cylinders including ILCO #1599 replacement cylinders.
- Locks are handed at factory. Field reversible.
- L78 LCA = 1-1/8" barrel length, or L78 LCM = 1-3/8" barrel length
- Barrel diameter: 1-1/8"
- Includes matching strike (stamped brass) with alignment mark for easy installation L78ST
Specifications:
| Reversible | Easily field reversible between door and drawer functions |
| Rekeyable | Easily rekeyable via set screw cylinder release mechanism |
| Body | Zinc die cast |
| Cylinder length | 1-1/8" or 1-3/8" |
| Barrel diameter | 1-1/8" |
| Finish | Satin Chrome 26D |
| Cylinder | Not included |
| Accepts | Schlage compatible key-in-knob cylinders including ILCO cylinder #1599 |
| Includes: | All parts necessary to work with other manufacturers’ cylinders |
| Compatible electronic cylinders | Medeco LOGIC, ASSA CLIQ or VIDEX CyberLock key-in-knob cylinders |
| Included Accessories |
For 1-1/8"barrel length locks: - 10-351 plastic spacers (qty 2) - L78ST-1 lipped strike For 1-3/8"barrel length locks: - L78ST-2 lipped strike |
