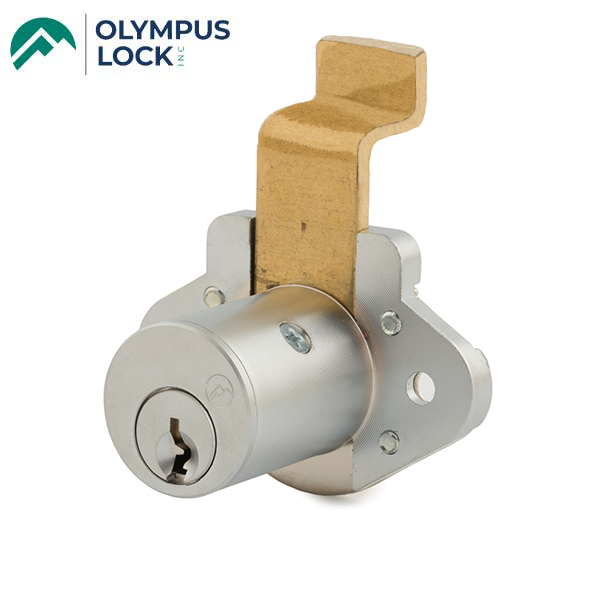

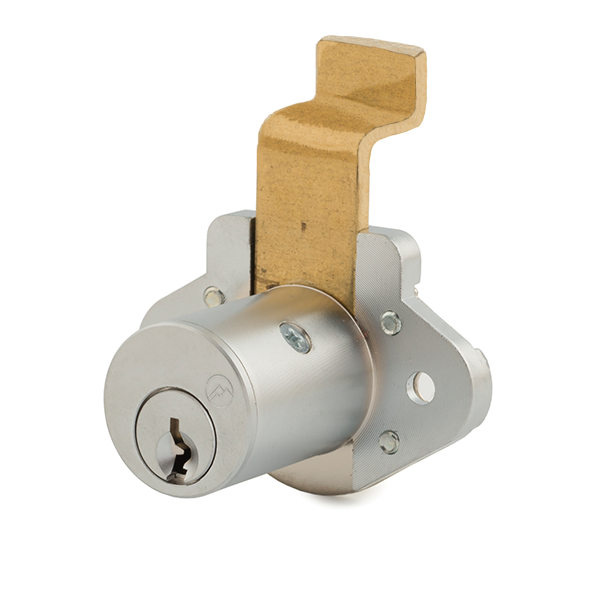

Olympus - N078 - N Series Deadbolt Door & Drawer Cabinet/Furniture Locks - 1/2" Offset Bolt - Optional Cylinder Length - Satin Chrome - Optional Keying
- Product SKU: OLY-N078-26D78LB1-101-KA
- NSID:
-
OLY-N078-26D78LB1XXXX (Offset Bolt)
S Series Schlage C Keyway Latch Lock With Offset Bolt
Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.
Features:- 1/2" offset outbent drawer bolt installed in lock
- N078 - furniture drawer lock
- N078L - cabinet door lock (Left-Hand)
- N078R - cabinet door lock (Right-Hand)
- Easily rekeyable set screw cylinder release mechanism
- Solid brass pin tumbler cylinder drilled for 5 pins
- Barrel lengths: 1-1/8" or 1-3/8"
- Barrel diameter: 7/8"
Specifications:
| Offset Bolt | 1/2" offset outbent drawer bolt installed in lock. |
| Keying | Can be keyed together with other N Series locks |
| Rekeyable | Easily rekeyable via set screw cylinder release mechanism |
| Standard function | Key removable in locked or unlocked position |
| Door locks | Can be reversed between left and right hand |
| Body | Zinc die cast |
| Cylinder | Solid brass, pin tumbler |
| Cylinder length | 1-1/8" or 1-3/8" |
| Barrel diameter | 7/8" |
| Finish | Polished Brass US3 |
| Keyway | N Series (equivalent to National D4291 4-pin or D4292 5-pin system) |
| Keys | Includes 2 keys per lock |
Downloads:
OLY-N078-26D78LB1XXXX (Offset Bolt)
S Series Schlage C Keyway Latch Lock With Offset Bolt
Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.
Features:
- 1/2" offset outbent drawer bolt installed in lock
- N078 - furniture drawer lock
- N078L - cabinet door lock (Left-Hand)
- N078R - cabinet door lock (Right-Hand)
- Easily rekeyable set screw cylinder release mechanism
- Solid brass pin tumbler cylinder drilled for 5 pins
- Barrel lengths: 1-1/8" or 1-3/8"
- Barrel diameter: 7/8"
Specifications:
| Offset Bolt | 1/2" offset outbent drawer bolt installed in lock. |
| Keying | Can be keyed together with other N Series locks |
| Rekeyable | Easily rekeyable via set screw cylinder release mechanism |
| Standard function | Key removable in locked or unlocked position |
| Door locks | Can be reversed between left and right hand |
| Body | Zinc die cast |
| Cylinder | Solid brass, pin tumbler |
| Cylinder length | 1-1/8" or 1-3/8" |
| Barrel diameter | 7/8" |
| Finish | Polished Brass US3 |
| Keyway | N Series (equivalent to National D4291 4-pin or D4292 5-pin system) |
| Keys | Includes 2 keys per lock |
Downloads:
