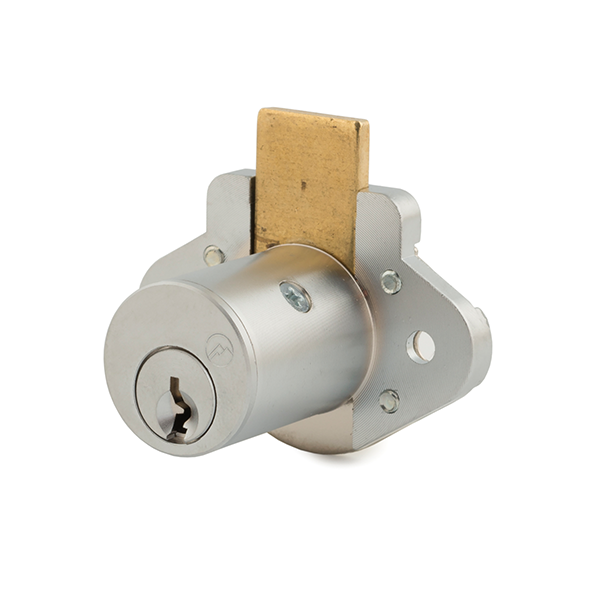

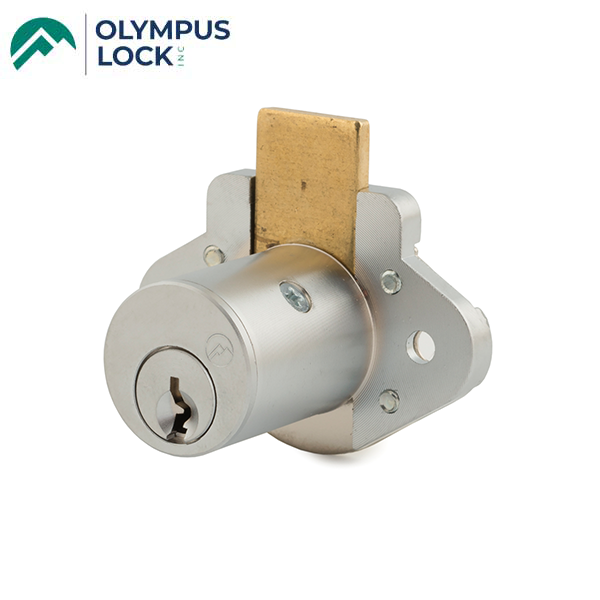

Olympus - N078 - N Series Deadbolt Door & Drawer Cabinet/Furniture Locks - Optional Cylinder Length - Satin Chrome - Optional Keying - Optional Handing
Available to Order
SKU:
OLY-N078L26D78-101-KA
NSID:
35860
35861
35862
35863
35865
35849
35850
6346
35851
35853
35896
35897
35898
35899
35901
35884
35885
35886
35887
35889
6345
35838
35839
35840
23369
35825
35826
35827
35828
35830
- $21.78
-
$24.89 - $21.78
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
OLY-N078-26DXXXX (Standard Bolt)
S Series Schlage C Keyway Latch Lock
Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.
Features:
- N078 - furniture drawer lock
- N078L - cabinet door lock (Left-Hand)
- N078R - cabinet door lock (Right-Hand)
- Easily rekeyable set screw cylinder release mechanism
- Solid brass pin tumbler cylinder drilled for 5 pins
- Barrel lengths: 1-1/8" or 1-3/8"
- Barrel diameter: 7/8"
Specifications:
| Keying | Can be keyed together with other N Series locks |
| Rekeyable | Easily rekeyable via set screw cylinder release mechanism |
| Standard function | Key removable in locked or unlocked position |
| Door locks | Can be reversed between left and right hand |
| Body | Zinc die cast |
| Cylinder | Solid brass, pin tumbler |
| Cylinder length | 1-1/8" or 1-3/8" |
| Barrel diameter | 7/8" |
| Finish | Satin Chrome 26D |
| Keyway | N Series (equivalent to National D4291 4-pin or D4292 5-pin system) |
| Keys | Includes 2 keys per lock |
Â
Downloads:
