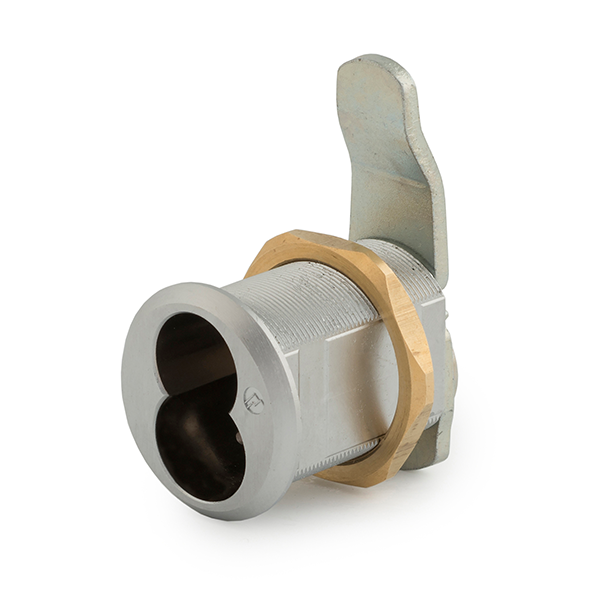

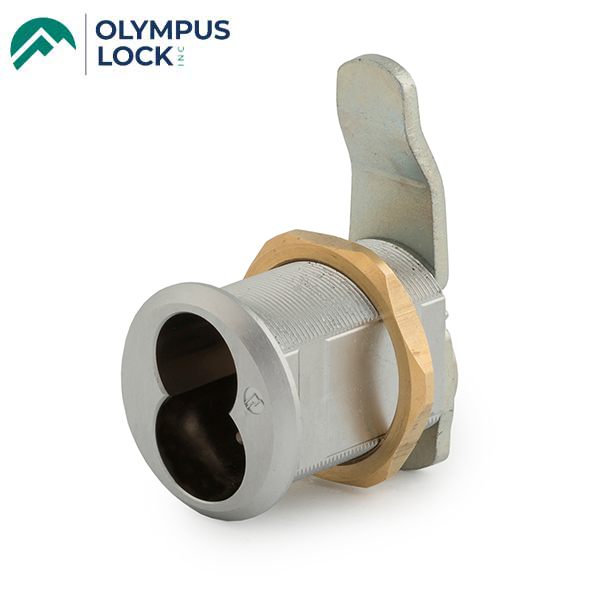

Olympus - SA54 - IC Core Cam Lock For Sargent IC cores - Less Cylinder - Satin Chrome
- Product SKU: OLY-SA54LM/DM-26D
- NSID: 35996
-
OLY-SA54LM/DM-26D
IC Core Cam Lock For Sargent IC cores
Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.
Features:
- Cam lock
- Accepts Sargent 6300 Series removable core cylinders (use of Sargent "Degree" cores requires purchase of optional Degree prong driver)
- ANSI/BHMA: E07261
- Barrel diameter: 1-1/8"
- Across flats: 7/8"
- Mounting cutout: 1-5/32"
- Max. material thickness: 1-1/8"
- Min. material thickness: 0.08"
- Cam lock
SPECIFICATIONS
| Cylinder diameter | 1-1/8" |
| Across flats | 7/8" |
| Max. material thickness | 1-1/8” |
| Min. material thickness | 0.08" |
| Functions |
Includes parts for key-retaining or non-key-retaining function |
| Body | Zinc die cast |
| Finish | Satin Chrome 26D |
| Cylinder |
Not included |
| Accepts | Sargent 6300 Series or Sargent Degree interchangeable core cylinders |
| Included Accessories |
Plastic actuator to operate lock without core |
Downloads
