OLY-T37-26D-915

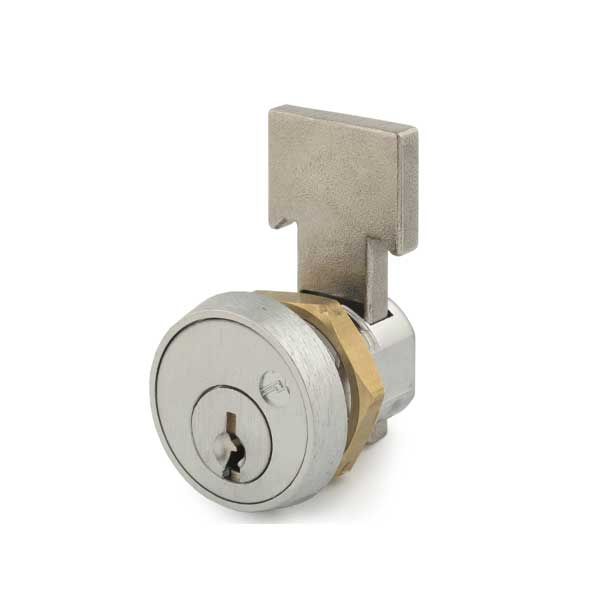

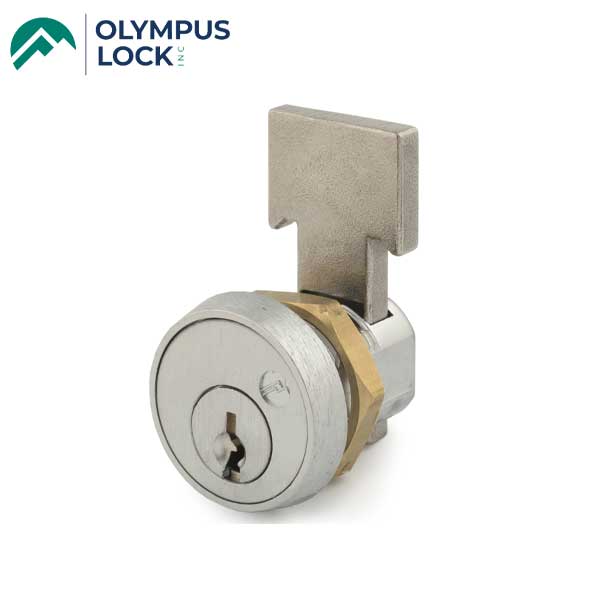

N Series National Keyway T-Bolt Metal Bank Drawer Lock
The industry’s first easily rekeyable T-bolt lock for metal bank drawers
Directly replaces National C8137. Working top-slide, cylinder retainer staple and removable bezel ring make rekeying fast and easy. No more need to pry off faceplates and pin retainer clips.
More Information Below
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
SPECIFICATIONS
Function | T-Bolt Metal Bank Drawer Lock |
Cylinder | National N Series (equivalent to National D4291 4-pin ) Keyway w/ 2 keys per lock |
Keyed Alike | KA 915 |
Rekeyable | Working top-slide, cylinder retainer staple and removable bezel ring make rekeying fast and easy. No more need to pry off faceplates and pin retainer clips. |
Retrofits | National C8137 |
Body | Zinc die cast |
Bolt | Stainless steel |
Across flats | 5/8” |
Barrel Diameter |
3/4” |
Cylinder length | 19/32” |
For Material | 1/4” |
Mounting | Ships standard with brass fixing nut. The lock comes standard with clip mounting locations for 0” to 11/64” material thicknesses. (Mounting Clip not included... sold separately) |
Functions | Key removable in locked or unlocked position. |
Body | Zinc die cast |
Finish | 26D - Satin Chrome |
Includes |
- Brass mounting nut |
SPECIAL NOTE ON BOLTS ONLY
The T37 (regular bolt) will not work in the National C8137 lock. However, the C8137 bolts will work in the T37 lock.
