Orbita - E3042 - Mortise Hotel Lock - RFID - Optional Lever Style - 6 VDC - Optional Finish - Grade 2 - Hotel Door Locks
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $129.99
-
$155.99 - $129.99
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
OTC-E3042
Orbita is a reputable hospitality products manufacturer with ISO certified 46,000 square meters garden factory, established to offer the best quality products with professional and effective service to our customers. All of ORBITA products are CE, FCC, RoHS marked and ORBITA is one of the few brands in this industry that passed 800,000 times BHMA standard circling test.
Features:
- See Orbita MiFare and Bluetooth Software Download Center HERE
- Unlock with Mifare card and key (sold separately)
- Mifare Technology
- 304 Stainless Steel panel and handles

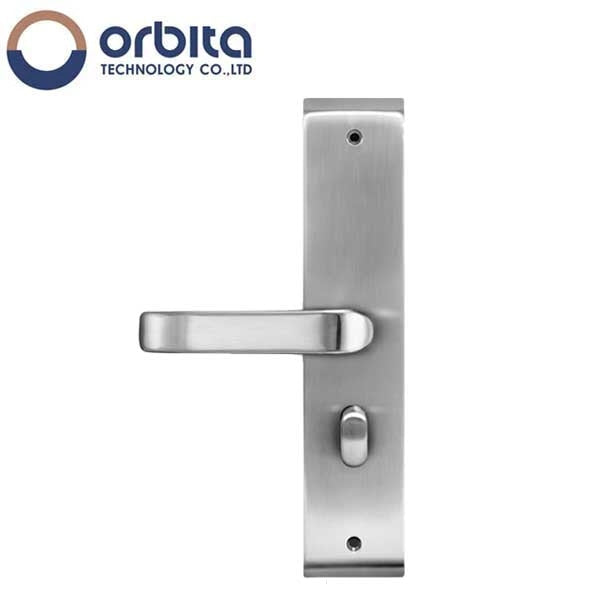

- Inside Deadbolt, Inside handle retracts latches and deadbolt
- 5 latch ANSI U.S. standard mortise
- 4 pc AA Cell, minimum 12 months lifespan.
- Low Voltage warning.
- Classified Access Authorization
- General Master, Building master, Emergency card, House Keeping card...
- Lost card suspension.
- Common door function like Swimming pool, Gym, fitness center.
- Meeting room function
- Hotel Door Locks
 |
|
 |
 |
 |

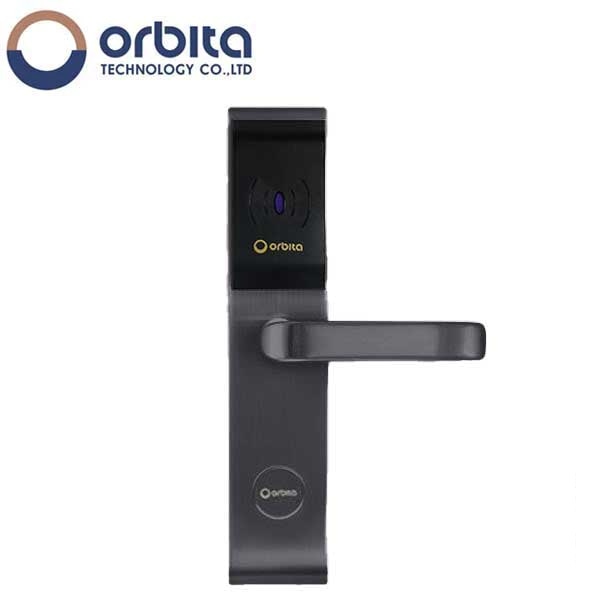

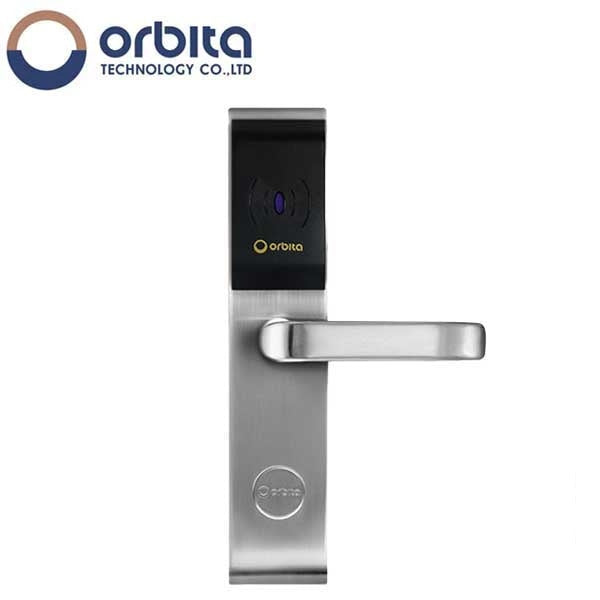

| 72 - Ares Return |

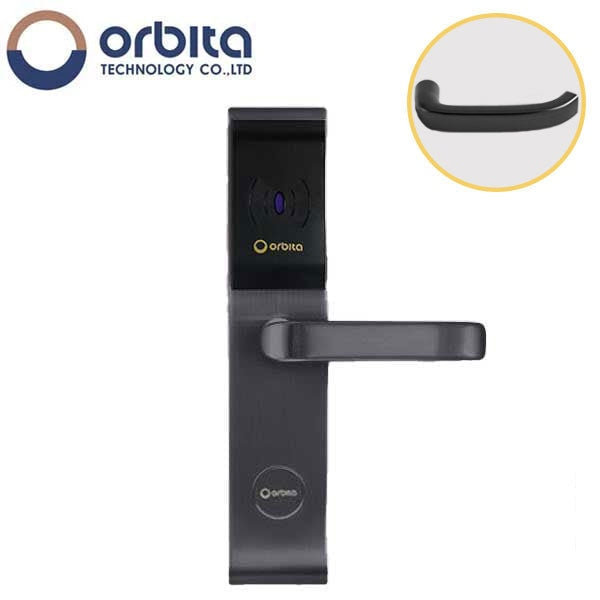

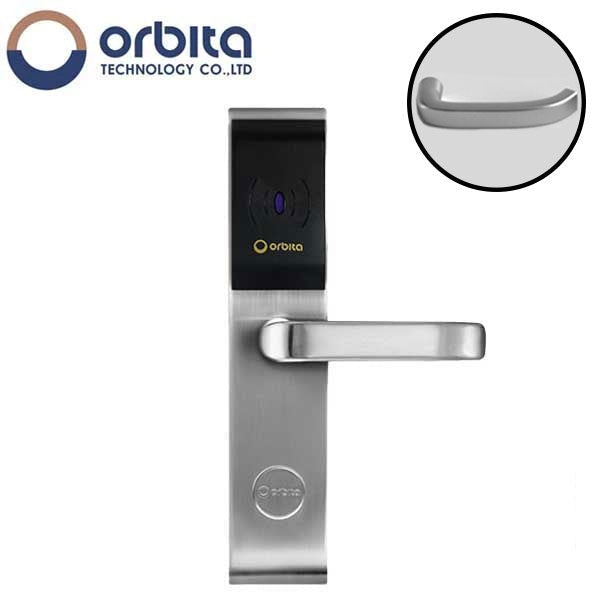

41 - Minerva Return |

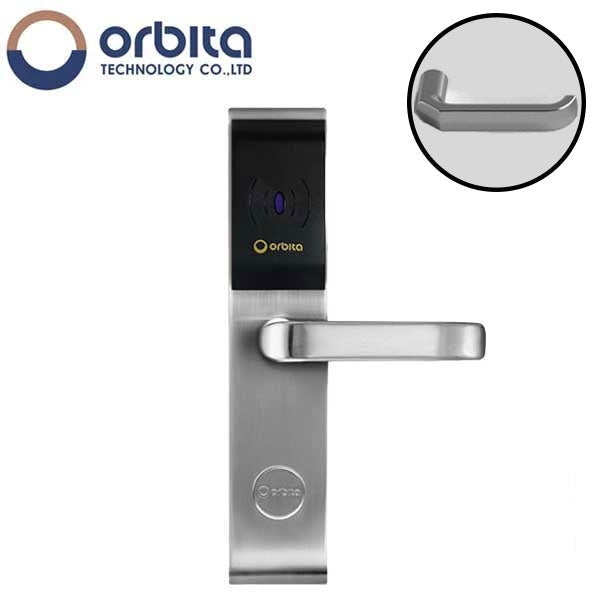

92 - Mars Return |
74 - Neptune Straight No Return |

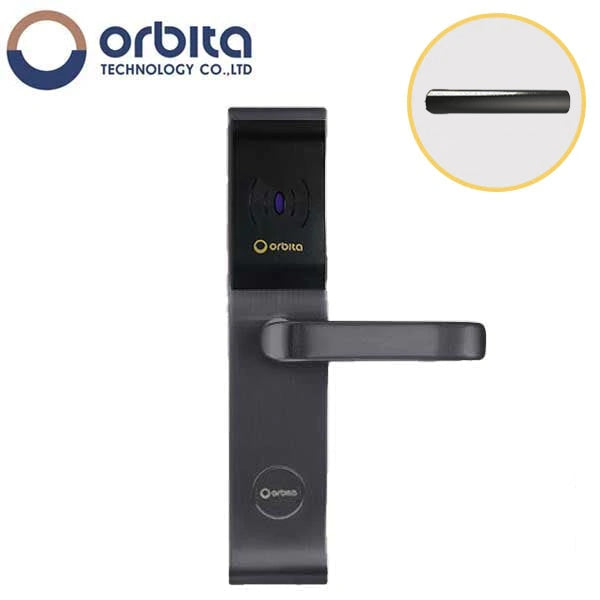

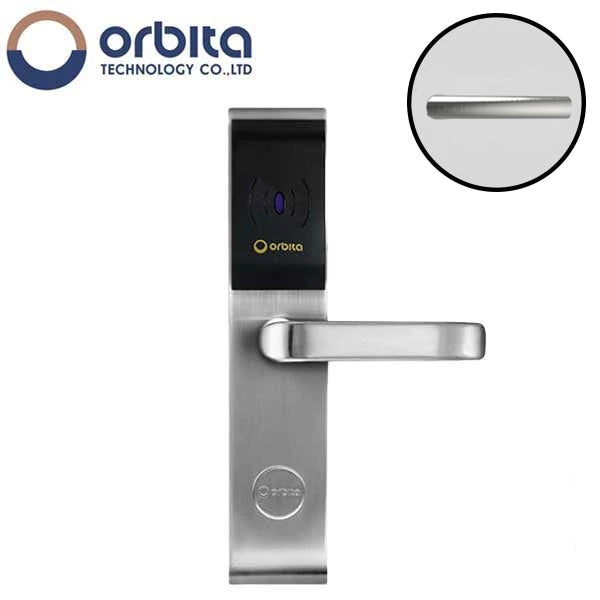

30 - Apollo Straight No Return |
Specifications:
| Material: | 304 Stainless Steel |
| Finish: | Silver Gold Black |
| Lever Style: |
72 - Ares Return |
| Working Voltage: | DC6V or 4 AA Alkaline batteries |
| Low Voltage Alarm: | ＜4.8V |
| Door Thickness: | 32-70mm (1.26 - 2.76in) |
| Operating System: | Fidelio / OPERA |
| Unlocks By: | Mifare card, and key |
| App Support: | Android 4.3/IOS7.0 and above |
| Keycard: | Mifare 1K card, compatible with Mifare Energy Saver |
| Unlocking Record: | 1680PCS |
| Access Levels: | Classified, General Master, Building master, Emergency card, and House Keeping card |
| Functions: | Passage / Meeting Room |
| Cycles: | 800,000 |

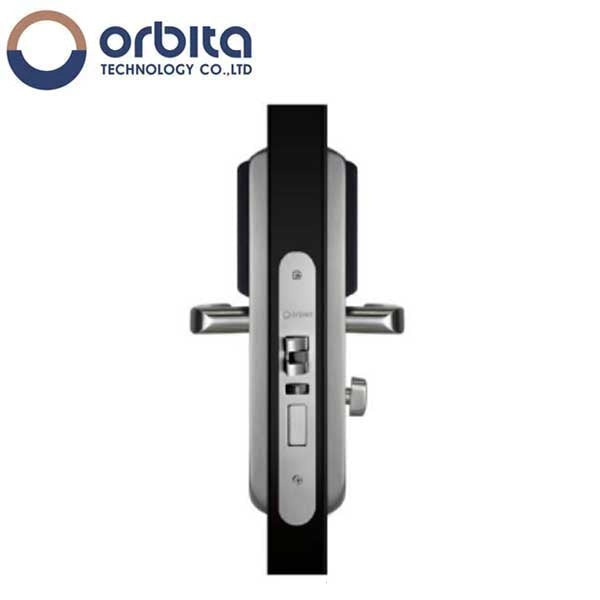

| Lock Body: | 5 latch ANSI U.S. standard mortise |
| Working Environment: | -20℃~60℃ |
| Dimensions: | L290mm x W60mm x H15mm (11.42in x 2.36in x 0.59in) |
| Ingress Protection: | IP54 / Flame Retardant |
| Certifications: | CE, FCC, ANSI 156.13 / 156.25 Grade 2 |
| Manufacturer's Warranty: | 10 Years |
Downloads:
- See Orbita MiFare and Bluetooth Software Download Center HERE
- Complete Product Guide
