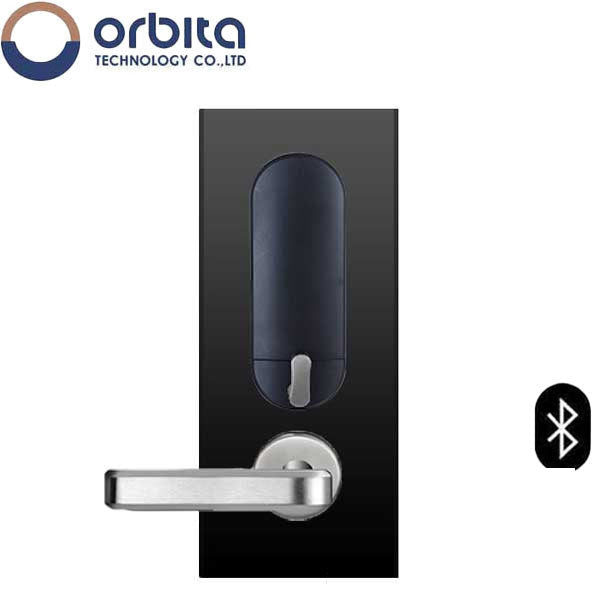

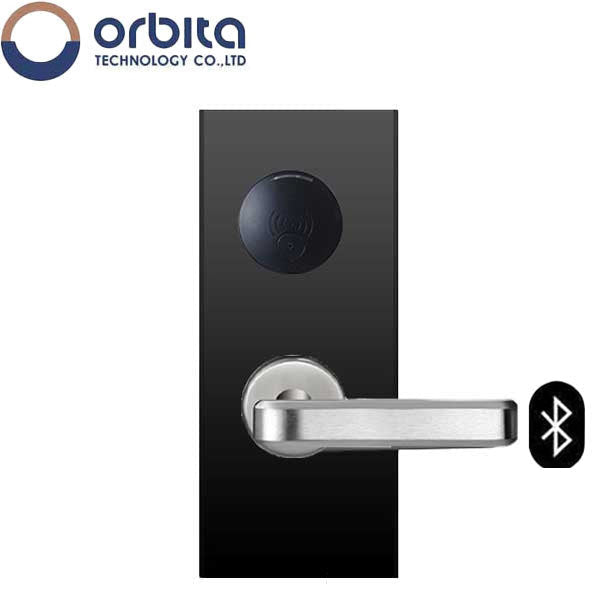

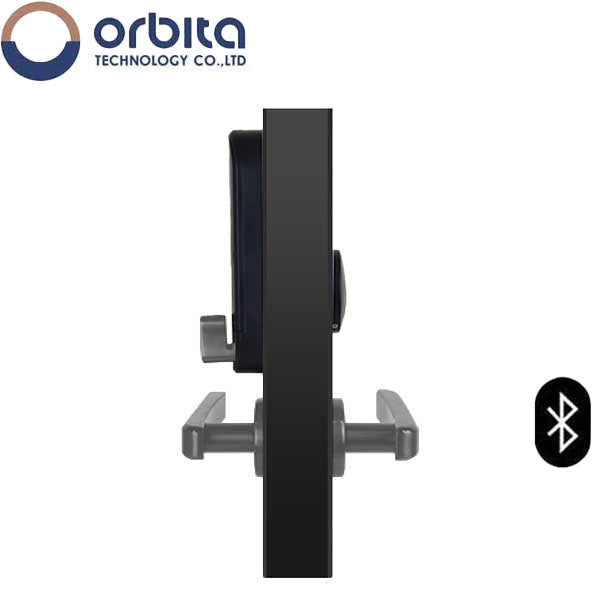

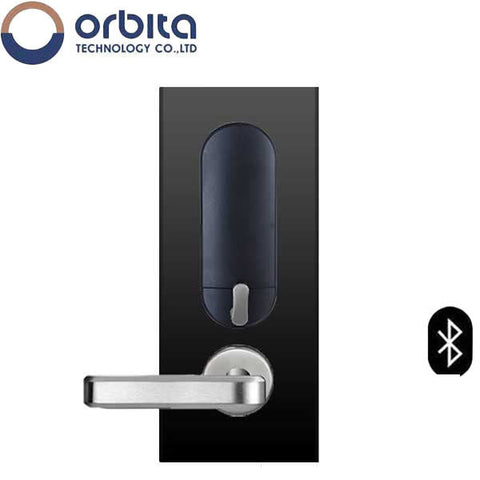

*Discontinued* Orbita - S3079 - Mortise Hotel Lock - SPLIT Design - RFID - Optional Lever Style - 6 VDC - Optional Finish - Grade 2
Out of Stock
SKU:
OTC-S3079-30-S-LH
NSID:
37374
46289
29383
46291
31880
46290
31881
46293
31882
46292
37380
46319
29384
46321
31886
46320
31887
46323
31888
46322
37386
46349
29385
46351
31883
46350
31884
46353
31885
46352
- $144.99
-
- $144.99
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
OTC-S3079
Orbita is a reputable hospitality products manufacturer with ISO certified 46,000 square meters garden factory, established to offer the best quality products with professional and effective service to our customers. All of ORBITA products are CE, FCC, RoHS marked and ORBITA is one of the few brands in this industry that passed 800,000 times BHMA standard circling test.
Features:
- See Orbita MiFare and Bluetooth Software Download Center HERE-Two-Piece design
- Interface with most of the PMS system, Fidelio/Opera registered
- CE & FCC Certified
- Stainless steel color lasts more than 10 years
- ANSI Standard mortise
- Inside Deadbolt, Inside handle retracts latches and deadbolt
- Mifare 1K card, compatible with Mifare Energy Saver (card sold separately)
- Lost Guest Card suspension simply by issuing a new guest card with suspending function
- Multiple operators with different card issuing authorization
- Low battery voltage warning. (Lower then 4.8V).
- Self Error detecting with “Beep”
- Passage Model function available
- Can be integrated with 16 public areas such as Lift/Parking/Swimming Pool/Sauna Room/Tennis Court/Gym... etc
 |
|
 |
 |
 |

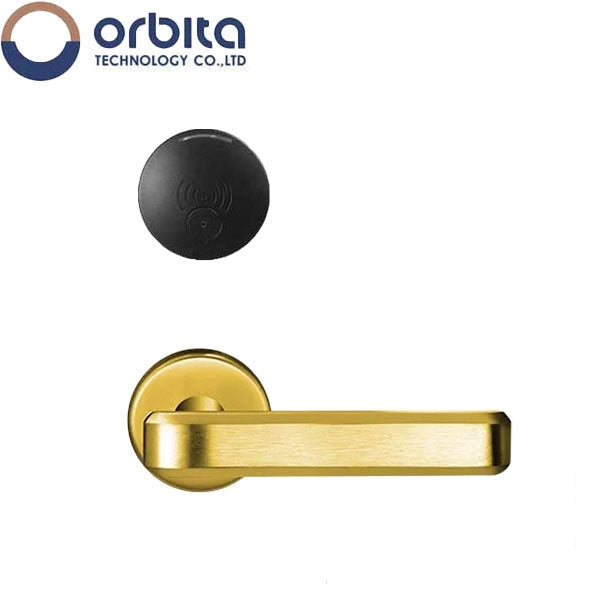

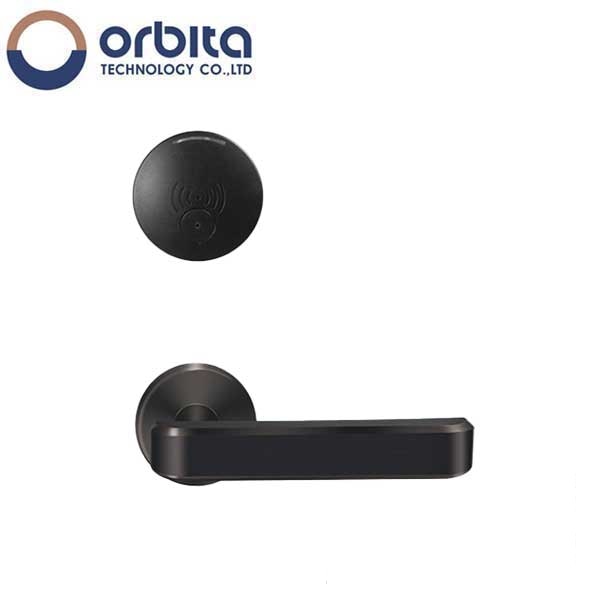

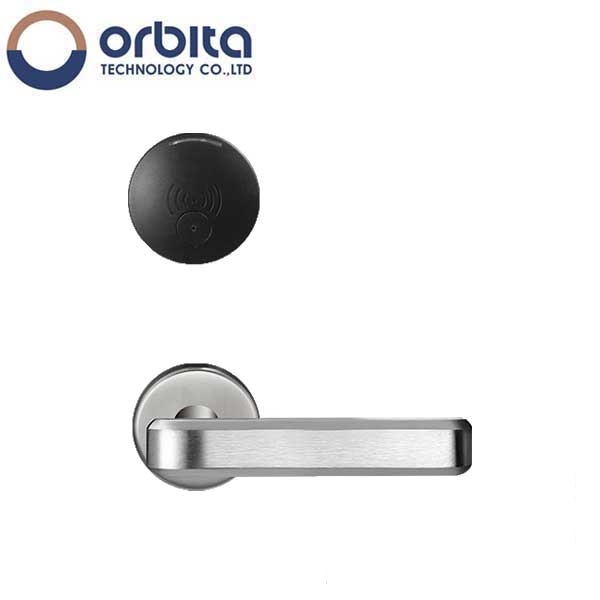

| 72 - Ares Return |

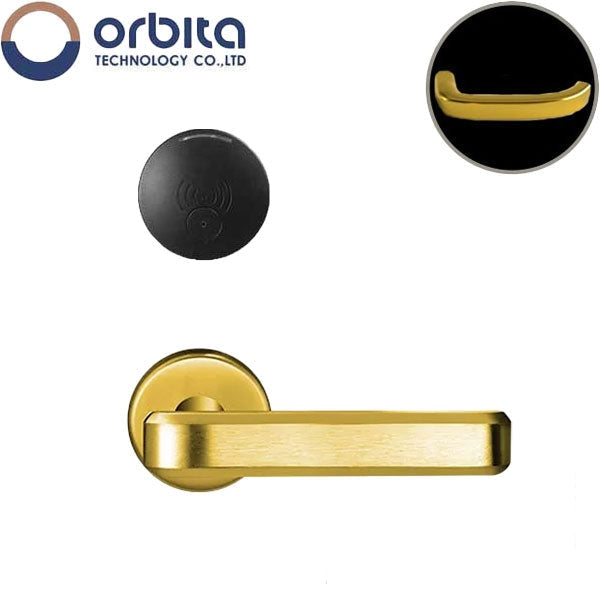

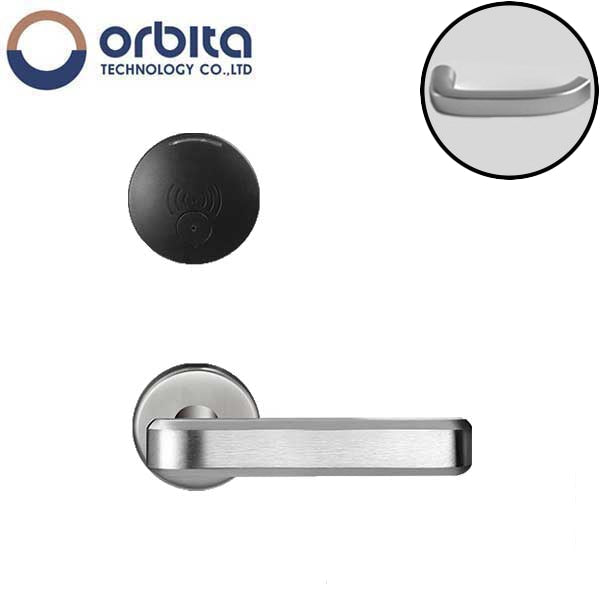

41 - Minerva Return |

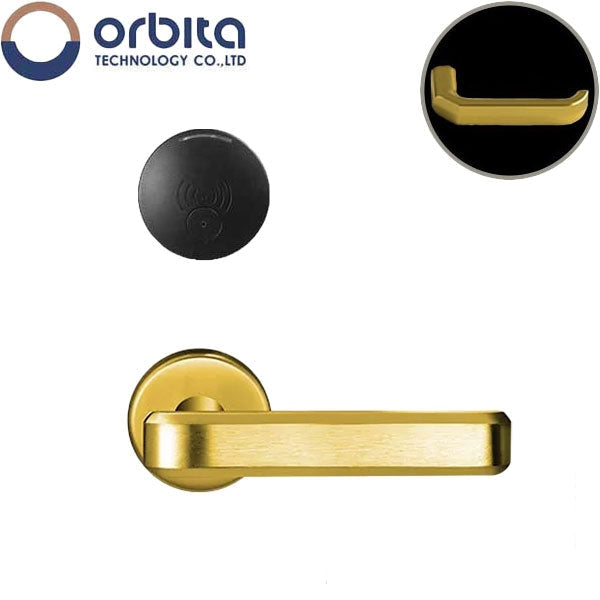

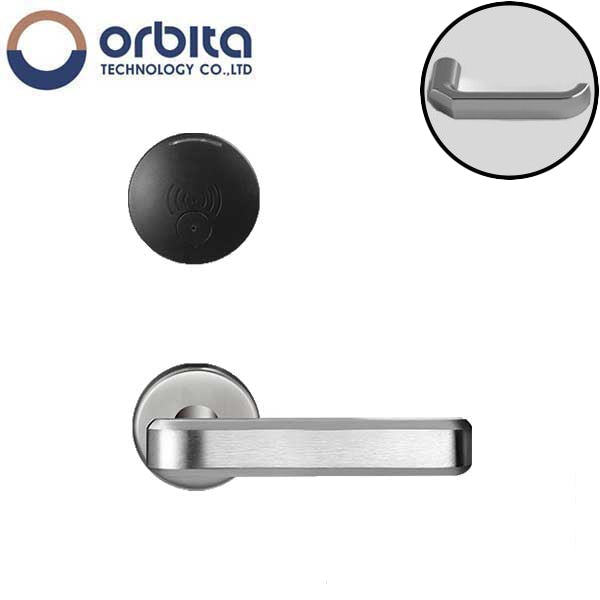

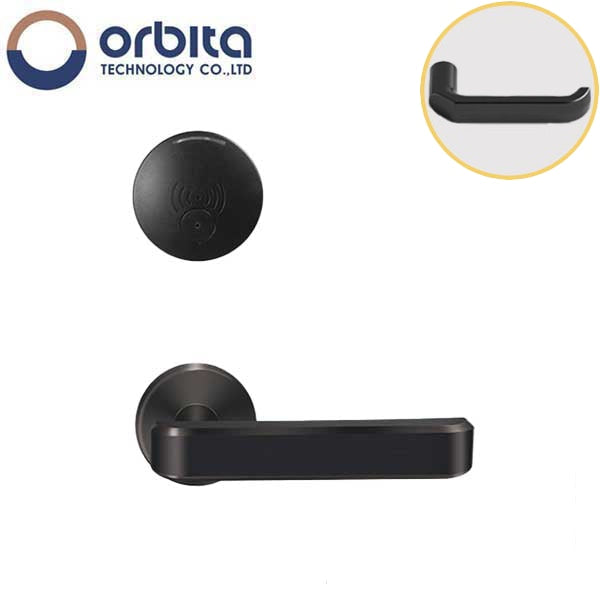

92 - Mars Return |

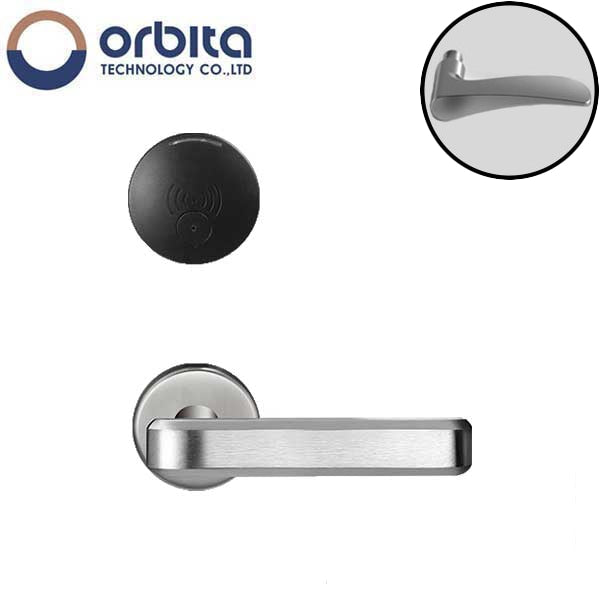

74 - Neptune Straight No Return |

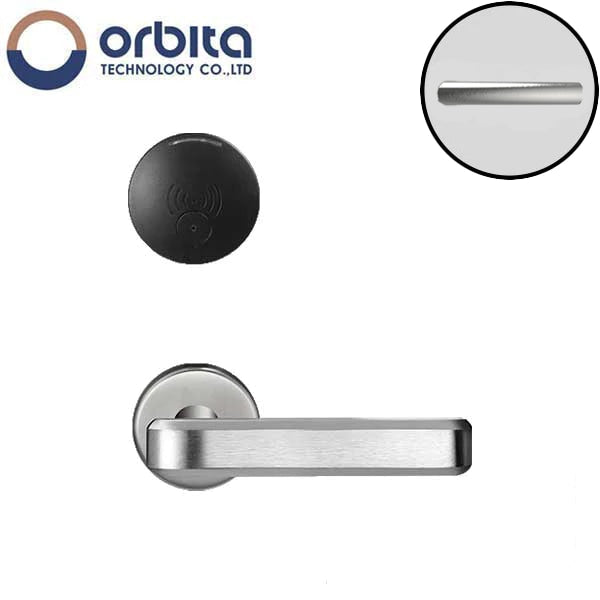

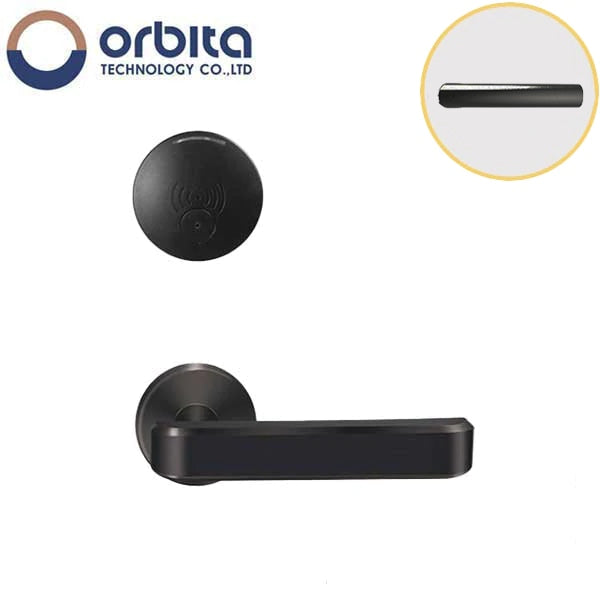

30 - Apollo Straight No Return |
- $144.99
-
- $144.99
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x
Specifications:
| Material: | 304 Stainless Steel |
| Finish: | Silver Gold Black |
| Lever Style: | 72 - Ares Return 41 - Minerva Return 92 - Mars Return 74 - Neptune - Straight No return 30 - Apollo - Straight - No Return |
| Working Voltage: | DC6V or 4 AA Alkaline batteries |
| Low Voltage Alarm: | ＜4.8V |
| Door Thickness: | 35-70mm (1.37 - 2.76in) |
| Operating System: | Most of the PMS system, Fidelio/Opera |
| Keycard: | Mifare 1 card, compatible with Mifare Energy Saver |
| Unlocking Record: | 1680PCS |
| Access Levels: | General Master, Building master, Emergency card, and House Keeping card |
| Functions: | Meeting room |
| Cycles: | 800,000 |
| Lock Body: | 5 latch ANSI U.S. standard mortise |
| Working Environment: | -20℃~60℃ |
| Dimensions: |
L60mm x W60mm x H12mm (2.36in x 2.36in x 0.47in) |
| Ingress Protection: | IP54 / Flame Retardant |
| Certifications: | ISO 9001:2015, CE, FCC, ANSI 156.13 / 156.25 Grade 2 |
| Manufacturer's Warranty: | 10 Years |
Downloads:
- See Orbita MiFare and Bluetooth Software Download Center HERE
- Complete product guide
