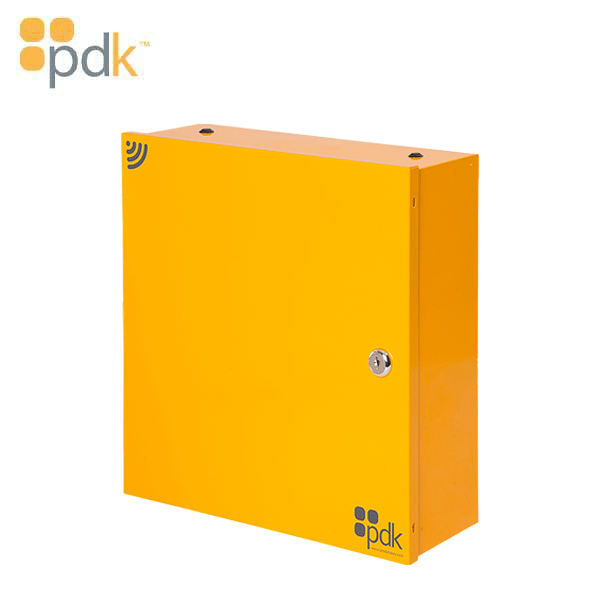

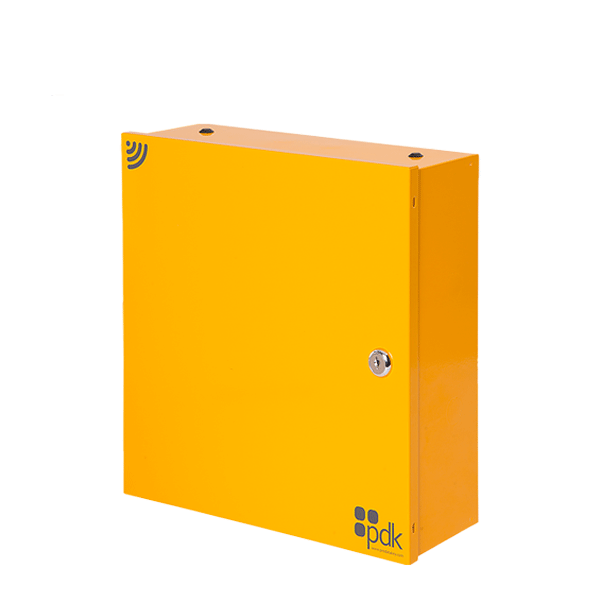

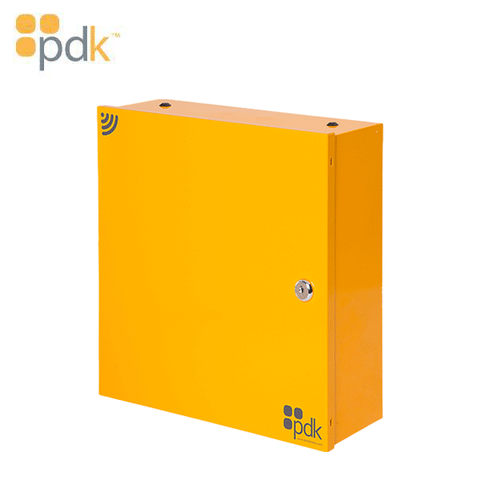

PDK - Eight IO - Cloud Network Eight Door / Ten Floor Controller - No Power Supply (Wireless)

Available to Order
SKU: PDK-8DW
NSID: 24271

Please Note: This product has a lead time

Eight Door/Ten Floor Controller with Power Supply

The Eight IO (no power supply) is the perfect solution for system takeovers and home-run applications. Centralize your install. This controller will handle eight individual doors or ten elevator floors. Add the eight-door expander to control up to sixteen doors or twenty elevator floors out of one 12x12 enclosure. Whether you are controlling doors or elevators, you won’t find a more compact, efficient, and easier-to-use door controller on the market.

Model PN: 8DW - Cloud Network Eight Door/Ten Floor Controller (Wireless)

Call 1-800-878-6604 for Bulk / Dealer Pricing!

Eight IO Features

Upgrade Any Wired System The eight io makes upgrading a traditional wired system easier than ever. Take control of up to eight individual doors with the eight io controller. Easily convert existing wired systems to experience the benefits and capabilities of the pdk io platform.

Expand to Sixteen Doors System expansion is a breeze, just replace the existing controllers with eight or single io’s and use most or all of the existing door hardware. The eight io makes system upgrades effortless and cost-effective.

Plug n’ Play Connectivity All io devices were designed to be plug n’ play. That means they’re super easy to install right out of the box. It’s easy to add in any io device no matter how large the job is, and you can quickly scale a system to any size. A cloud node can connect with up to a thousand doors on a single platform.

Fully Supervised Never be caught off guard again. Pdk.io intelligently monitors the network and wireless connectivity of each controller in your system and alerts you if any issues arise.

Elevator Control System expansion is a breeze, just replace the existing controllers with eight or single io’s and use most or all of the existing door hardware. The eight io makes system upgrades effortless and cost-effective. Provide a seamless, more effective elevator solution. The eight io doubles as an elevator controller, allowing control of up to ten elevator floors. The eight io is smaller and more powerful than any other controller in its class.

Wireless or Network Choose from flexible connectivity options that fit any application. The eight io is built for ultra-low bandwidth consumption and easily connects to existing or dedicated networks. Easily expand a system's wireless coverage (via network) using the ethernet gateway.

IMPORTANT: A PDK - Cloud Node is required to operate the Single io, Eight io, and Eight io+ door controller products.

Specifications

Connections: Removable Screw-down Terminals Power Supply Input Industrial-grade 2A Form-C Relays (1 Door / 1 Aux) Reader Input (2) Input A (Door Position Sensor) Input B (Request To Exit)
Communication Options: WiMACTM Wireless Mesh (2.4 GHz / 802.15.4)
Encryption: AES 128bit
Wireless Range: 1 Mile LoS, 450ft indoor average
Environmental: Temperature: -20º ~ +60º C or -4º ~ +140º F
Humidity: 0 - 95% relative humidity non condensing
Enclosure: Dimensions (W x H x D) 12” x 12” x 4” Metal lockable security can (indoor use only)
Compliance: Conforms to UL 294 (excludes 1DPOE)
Power: 12 VDC Power readers and other door hardware using the built-in bus 10A concurrent max on the bus *Power supply and battery not included
Manufacturer’s Limited Warranty One to three-year warranty against defects in materials
and workmanship.


Package Contents -

  • Eight Door Controller (1)
  • Antenna (1)
  • Key Lock (1)
  • Diode (8)
  • Jumpers (8)
  • Labels (2)
  • Power Supply (1)

This item is available for purchase ONLY for low voltage and access control professional installers. Non certified professional installers do not qualify for ANY technical support from PDK. Additionally, the manufacturer's warranty is ONLY available for professional certified access control installers

Data Sheet

Quick Start Guide

Online Manual
