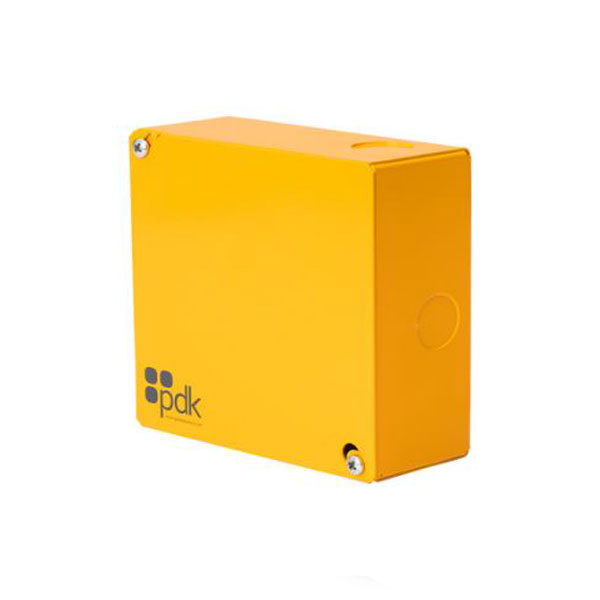

PDK - HVC - High Voltage Converter - 2A - 12VDC

Available to Order
NSID: 24290

Please Note: This product has a lead time

Power up the cloud node or single IO in areas where high voltage power is available. The HV converter accepts 90 - 264VAC and converts it to 12VDC at 2a. It’s perfect for interfacing with the nearest high voltage source and eliminating the need to run a power wire to controllers.

More Information Below

Call 1-800-878-6604 for Bulk / Dealer Pricing!


Voltage Range: 90~264Vac auto range
Frequency: 47~63Hz
Efficiency: The average efficiency at 25%, 50%, and 100% load ≥ 82%
Input Current: 90~132Vac / 12V / 2A load ≥ 1A
180~264Vac / 12V / 2A load ≥ 0.5A
Output 12V 0A to 2A
Protection Auto recovery on Over-current, Over-temp, Short, Over-voltage
CE Input: 3.0KVac
Output: 3.0KVacEC
Isolation CE: In conformance with EMC Directive 2004/108/EC
and Low Voltage Directive 2006/95/EC
Reliability >100,000 hours@ 100% load and normal inputs (25 ̊C)
Dimensions 5” x 5” x 2”
Enclosure Metal lockable security can (indoor use only)
Certifications UL/cUL, TUV, CB by Demko, CCC, CE, KC, BSMI
Manufacturer’s Limited Warranty One to three-year warranty against defects in materials
and workmanship.

Package Contents

  • High-Voltage Converter (1)
  • Enclosure and Cover (1)
  • Converter box lid screws (2)
  • Power Supply (1)
  • DC Power Leads (1)
  • AC Power Leads (1)
  • Ground Wire (1)
  • Conduit Coupler - For use between the converter and Cloud Node or Single io (1)

This item is available for purchase ONLY for low voltage and access control professional installers. Non certified professional installers do not qualify for ANY technical support from PDK. Additionally, the manufacturer's warranty is ONLY available for professional certified access control installers
