PDK - Pedestal IO - RPW - Outdoor Pedestal Outdoor Controller Wireless

In Stock
NSID: 37821

Get it shipped ! Order within:

Get it shipped ! Order within:

Get an Extra Hour with

Security & Convenience Wrapped Into One.

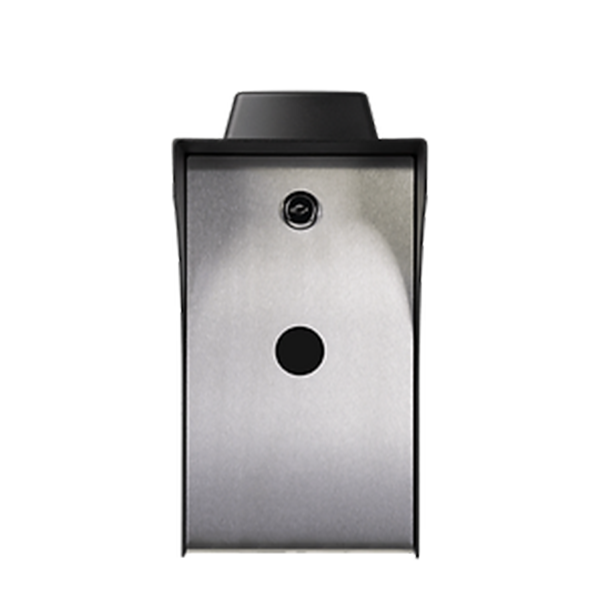

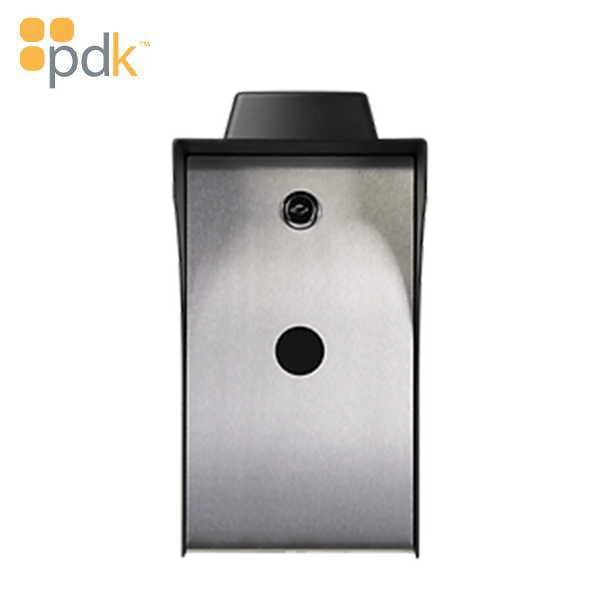

Pdk’s RedTMPedestal Controller is the solution for access control needs in outdoor applications such as parking lots, gated communities, and storage facilities. A robust weatherproof stainless-steel housing protects the controller and provides a blank faceplate for your favorite reader. It features built-in network connectivity and self-discovery to simplify IP configuration. It is also fully equipped with controller health monitoring and OSDP functionality.

Model PN: RPW - Wireless Connectivity

Call 1-800-878-6604 for Bulk / Dealer Pricing!

Pedestal IO Features

Advanced security
ProdataKey RedTM products lead the industry in secure communication protocols. This includes OSDP, mobile, and encrypted credential communication.

Self discoverable
The Red Pedestal will be automatically discovered by the Cloud Node when an Ethernet cable is connected; it is not necessary to enter the IP address; the device is self-discoverable.

Power monitoring
Equipped with an onboard power supply and a fully-supervised power circuit that monitors input, output, battery voltage, and overall controller health.

Eliminate trenching
Protecting access to gates and exposed areas has never been easier or more cost-effective. Because of our WiMACTM wireless capabilities, the Red Pedestal eliminates the substantial expenses associated with trenching.

Plug n’ play connectivity
All pdk Red devices were designed to be plug n' play. That means they're easy to install right out of the box. It's simple to add any device no matter how large the job is.

System scalability
Whether you need two doors or a thousand, the pdk Red Pedestal gives you the flexibility to add more doors anytime, anywhere, on any device.


Connections Removable Screw-down Terminals
Built-in Power Supply
Industrial-grade 2A Form-C Relays (2)
Reader Input (2)
Input A (2)
Input B (2)
Power Included Power Supply: 14V DC, 2A transformer
12V-24V AC/DC Input
12VDC 1.2A *Battery-Backed Output
Powers readers and other door hardware directly
from the bus.
*Battery not included
Communication Options WiMACTM Wireless (2.4 GHz/ 802.15.4)
Encryption: AES 128bit
Wireless Range: 1 Mile LoS, 450ft indoor
Environmental Temperature: -20° ~ +60° C /-4° ~ +140° F
Humidity: 0 - 95% relative humidity
Enclosure Dimensions (W x H x D) 5.5” x 9.5” x 5.5”
Stainless-Steel enclosure
Weight 7.3 lbs (116.8 oz)
Manufacturer’s Limited Warranty One to five-year warranty against defects in
materials and workmanship. For full details, visit
