PDK - Ruggedized Reader - New Design - Cloud Network Access Control Single-Gang Prox & PIN Keypad Reader (125 KHz Prox)
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
Rugged readers are a great fit for indoor/outdoor applications and offers users the flexibility of using everyday proximity credentials or PIN numbers to gain access to secure areas. Easily add an extra layer of security with two-factor authentication on keypad readers, requiring users to present proximity credentials and enter a PIN number to gain access

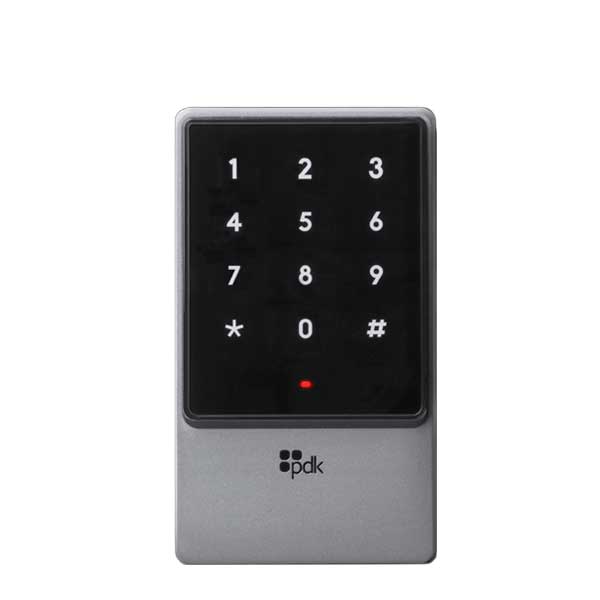

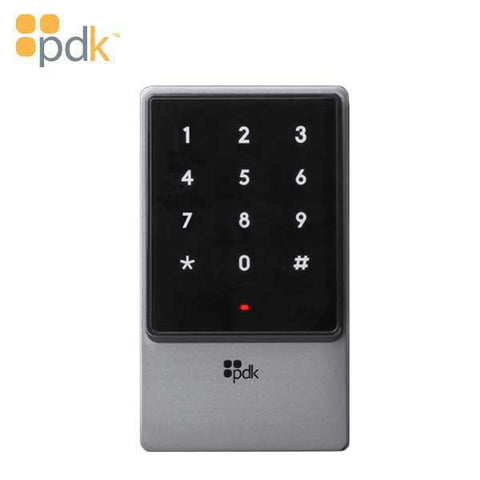

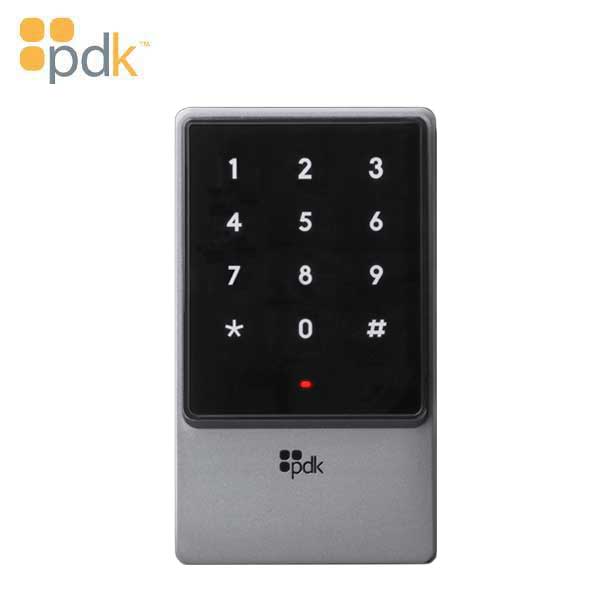

Model PN: RDRGRK - Single-Gang Rugged Keypad Reader (New Design)
Metal Reader Features
- 125 kHz RFID Proximity
- 26- to 37-bit Wiegand-based format
- Output converts to Wiegand formats
- Voltage: 12VDC at the reader from the Single io or Eight io board
- Electronics potted and sealed with tamper-resistant epoxy for indoor and outdoor installation
- Aluminum alloy case, fully potted, water-resistant IP65* (IP rated as "dust tight" and protected against water projected from a nozzle.)
- Backlight that can be set to on or off
- FCC, RoHS, and UL Standard 294 compliant
- 5 kHz audio doorbell buzzer
Specifications
| Input: | Frequency: 125 kHz |
| Read Range: | ≤ 2” inches (5cm) |
| Output: | Wiegand 26-37 bit format |
| Environmental: | Temperature: -20o ~ +60o C or -4o ~ +140o F Humidity: 0 - 95% relative humidity non condensing |
| Operating Humidity: | 0 - 95% |
| Dust & Waterproof Rating: | IP68 |
| Impact Protection Rating: | IK10 |
| Enclosure: | Single Gang Dimensions (W x H x D) 5.7” x 3.3” x 1” |
| Power Voltage: | DC12V±10% |
| Manufacturer’s Limited Warranty: | One to three-year warranty against defects in materials and workmanship. For full details visit prodatakey.com. |
Package Contents -
- (1) Single-Gang Rugged Reader
- (4) Mounting screws
- (4) Wall anchors for mounting to drywall
- (1) Diode
This item is available for purchase ONLY for low voltage and access control professional installers. Non certified professional installers do not qualify for ANY technical support from PDK. Additionally, the manufacturer's warranty is ONLY available for professional certified access control installers
