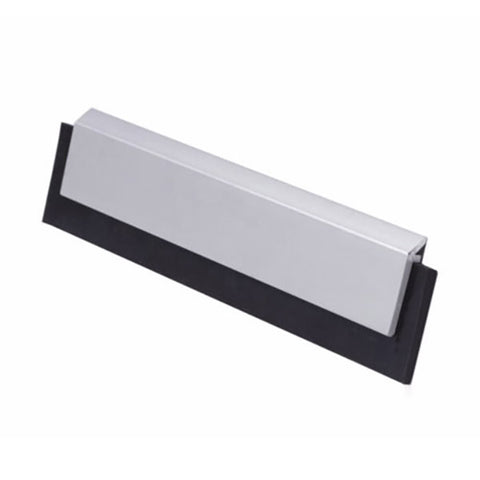

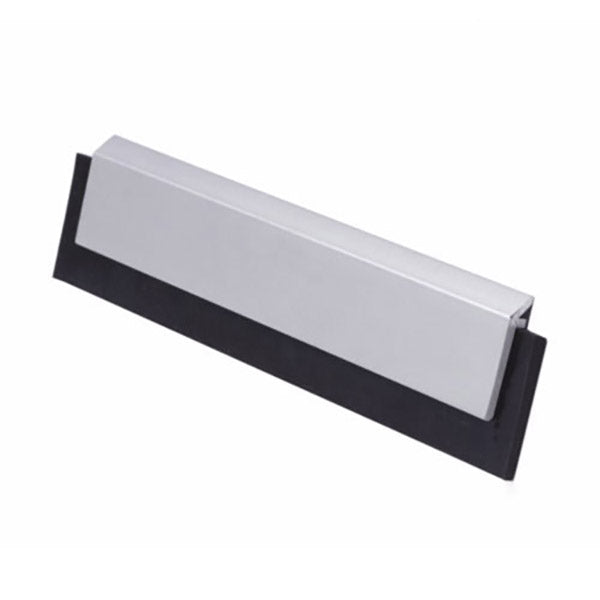

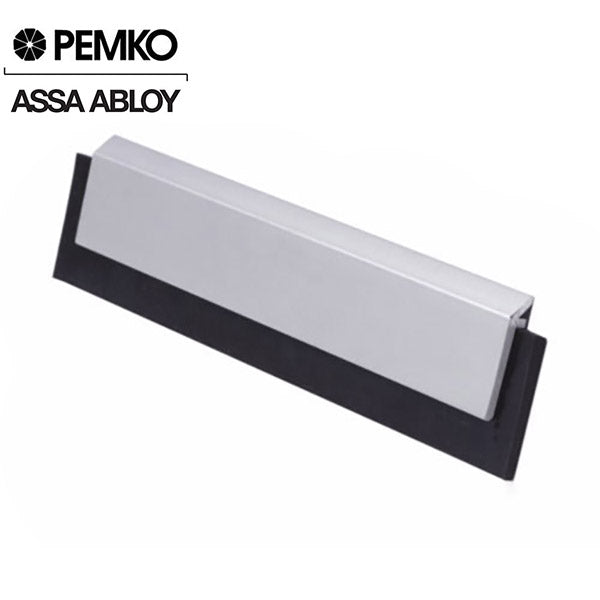

Pemko - 315CN - 36" Bottom Door Sweep - EPDM Insert - Clear Anodized Aluminum Finish
In Stock
SKU:
PMK-315CN-36w-C
NSID:
37260
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $17.53
-
$17.40 - $17.53
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The Pemko 315CN door sweep with EPDM insert is applied to the bottom face surface of a door to prevent air, sound, smoke, insects, rodents, and water from entering a room. Commonly used on the exterior of outswing doors in conjunction with a saddle threshold.
Specifications:
- LENGTH: 36” (914.4 mm)
- WIDTH: 1/4” (6.4 mm)
- HEIGHT: 1-11/16" (42.86 mm)
- WEIGHT: Estimated per foot: 0.15 lbs
- MATERIAL: 6063-T6 Aluminum Alloy and Temper
Ratings:
- Air Infiltration Tested – Tested to ASTM E-283-04 (2012) for low air leakage allowance; allows no more than 0.3 cfm per square foot at 1.57 psf.
- Sound Tested – Tested to ASTM E90 – 2009 in a single or in multiple sound seal configurations for sound attenuation in an opening
- Smoke Tested – Tested to UL 1784 and meets the requirements of NFPA 105-2013 for smoke leakage in an opening; allows no more than 3.0 cfm per square foot at 0.10” water column (about 75 Pa).
- Fire Rated – Tested to UL10B Standard Fire Tests and UL10C Positive Pressure Fire Tests of Door Assemblies
- BHMA Certified – Tested for performance with regards to the requirements in: ANSI/BHMA A156.22 – Door Gasketing and Edge Seal Systems
