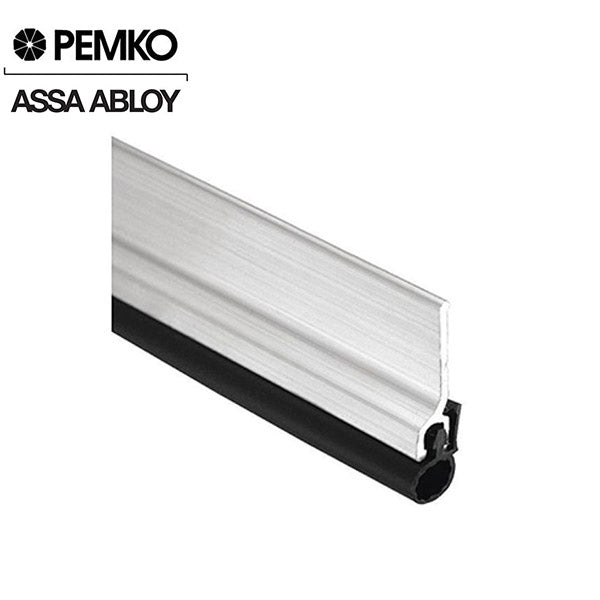

Pemko - 330AS - 84" Weatherstrip Perimeter Gasketing - Silicone Seal Insert - Mill Aluminum Finish
Available to Order
SKU:
PMK-303AS-36-84-A
NSID:
37261
- $44.57
-
$53.48 - $44.57
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Category J gaskets for use with listed steel frames and/or classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes.
Features:
- LENGTH: 84” (2133.6 mm)
- WIDTH: 7/8” (22.2 mm)
- HEIGHT: 1/4” (6.4 mm)
- WEIGHT: Estimated per foot: 0.07 lbs
- MATERIAL: 6063-T6 Aluminum Alloy and Temper
- Rigid jamb weatherstrip is shown mounted on openings with 1/16" gaps; however, each weatherstrip can seal gaps up to the depth of its seal
- Stainless steel fasteners are standard. Other fasteners are available
- Punched on 6" center with slotted holes for adjustment
Ratings:
- GreenGuard GOLD Certification – Tested to UL2818 and achieved GOLD certification for low V.O.C. content – ulspot.com for certificate
- Air Infiltration Tested – Tested to ASTM E-283-04 (2012) for low air leakage allowance; allows no more than 0.3 cfm per square foot at 1.57 psf.
- Sound Tested – Tested to ASTM E90 – 2009 in a single or in multiple sound seal configurations for sound attenuation in an opening
- Smoke Tested – Tested to UL 1784 and meets the requirements of NFPA 105-2013 for smoke leakage in an opening; allows no more than 3.0 cfm per square foot at 0.10” water column (about 75 Pa).
- Fire Rated – Tested to UL10B Standard Fire Tests and UL10C Positive Pressure Fire Tests of Door Assemblies
- BHMA Certified – Tested for performance with regards to the requirements in: ANSI/BHMA A156.22 – Door Gasketing and Edge Seal Systems
