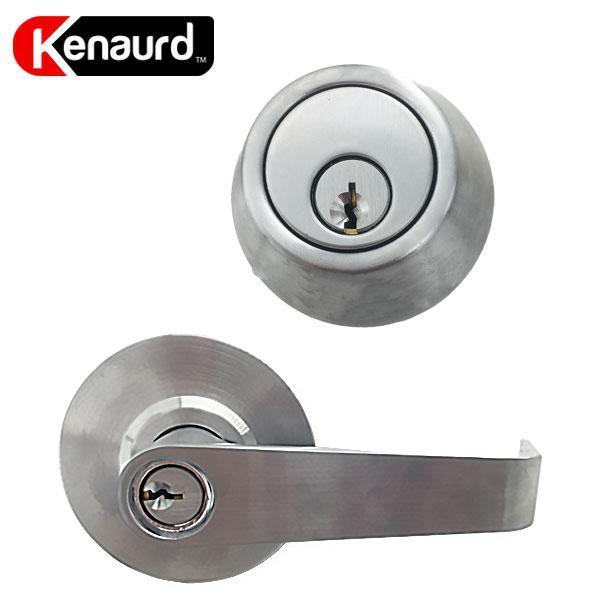

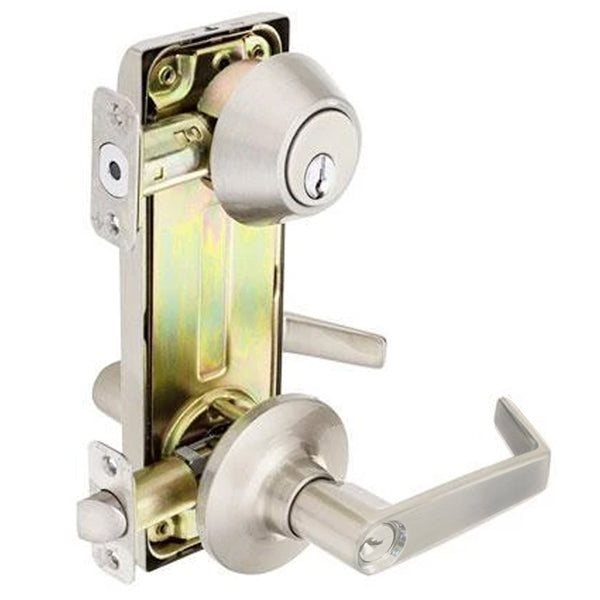

Premium Interconnected Lock – Deadbolt & Lever – Entrance – SC- 26D – 3-11/32" Rose - Grade 2
In Stock
SKU:
KID202-SC
NSID:
2960
- Deadbolt & Leverset – Entrance
- ANSI/BHMA Certified Grade 2
- UL 3 Hour Fire Rated
- Schlage Keyway
- Finish: Stain Chrome – SC – 26D
- Clutch Mechnasim
- ADA Ergonomic thumb turn
- 2 Brass Keys Each Set Keyed Alike
- Solid Brass 6-Pin Removable Deadbolt KIK Cylinder

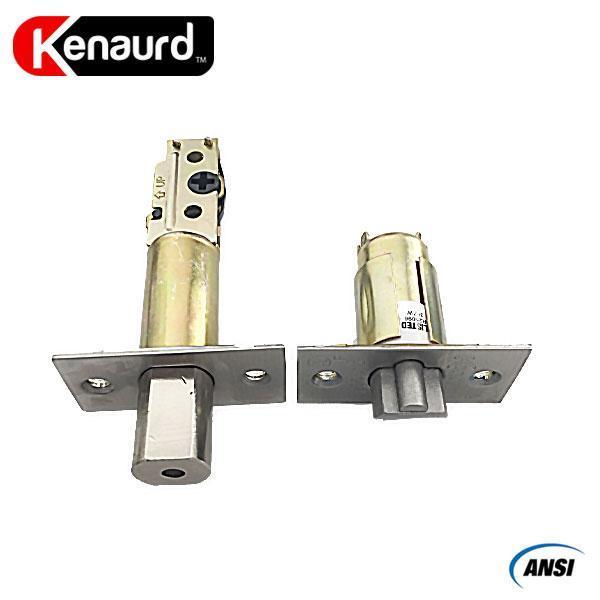

- Reinforced 7/8" dia,1" throw brass / zinc deadbolt with hardened steel core. 5/64" thick face plate. ANSI Grade 2 Security against kick-in and saw attacks.
- 3-11/32 Dia. Brass rose. Individual spring on rose plate to prevent lever sag.
- 1/2" Throw deadlatch completely reversible for flat and beveled door
- Center to center = 4"
- Door Prep: Cross bore 2-1/8", Edge bore 1" , Latch face 1-1/8"x2-1/4".
- Backset: 2-3/4" standard.
- Door Thickness: 1-1/2"--2" .
- Handing: Completely reversible.
- Face plates: 1-1/8"x2-1/4" rounded corner
- Strikes: 2-1/4" full lip rounded corner
- Latch: 1/2" throw, stainless steel.
- Bolt: 1" throw, Nickel plated.
- ANSI/BHMA: A156.12 Grade 2.Keyed alike Up to 6 (KA6)
-
Limited Lifetime Mechanical Warranty
