Pro-Lok - INJIGC-MORT Mortise Lock Installation Kit
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $410.15
-
$859.95 - $410.15
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
- The Mortise Lock Installation Kit comes with everything you need to cut professional quality, fast and accurate mortise pockets! No other combination of tools can produce such accurate results every time. The new jig is quick and simple to set up, self centering and locks onto the door edge securely. Quick change threaded cutters means cutters can be changed in seconds, without removing the jig from the door. For use on hard wood, soft wood, composite doors and even aluminum doors (with the use of special cutters). Protect and store tools in a custom heavy duty case.
- In addition to the self-centering Mortise Jig with aluminum housing, carrying case and instructions, the Kit includes: INJIGC-MORT-CWB22 7/8″ Wood Screw Cutter, INJIGC-MORT-CWB25 1″ Wood Screw Cutter, INJIGC-MORT-CWB32 1 1/4″ Wood Screw Cutter, INJIGC-MORT-CLS Long Boring Shaft.
- The INJIGC-MORT is also expandable to core doors and prep for hinges and strikes, with the appropriate attachments.
Features and Benefits:
This very precise drilling jig is designed specifically to guide the drilling bit to cut mortises for door locks and their faceplates.

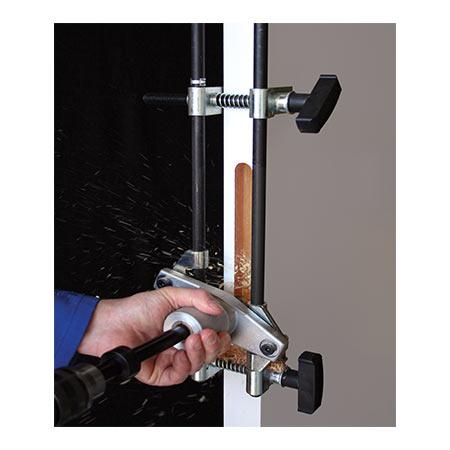

It really is a simple process: mark the lock length on to the door, select the width of mortise cutter that suits your lock, set the depth collar, pass the drill shaft through the jig’s guide bush, lock the jig to the door and using power from your drill, drive the carbide tipped mortise cutter into the door moving up and down; repeat process for the faceplate. This produces a very clean smooth cut and is one of the fastest most accurate ways to cut a mortise. You may also use it to cut hinges. And a power drill with a 1/2″ chuck running at speeds 2,000 – 3,000 rpm is recommended. Compatible for doors up to 2-1/8″ wide.

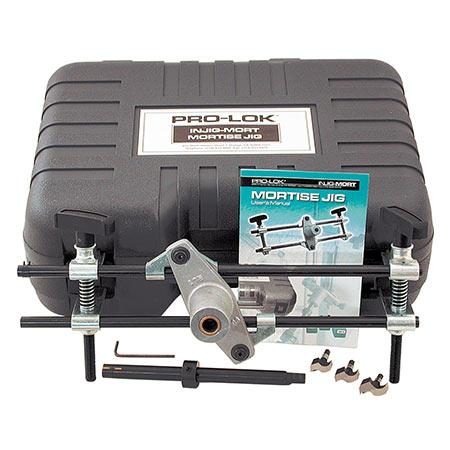

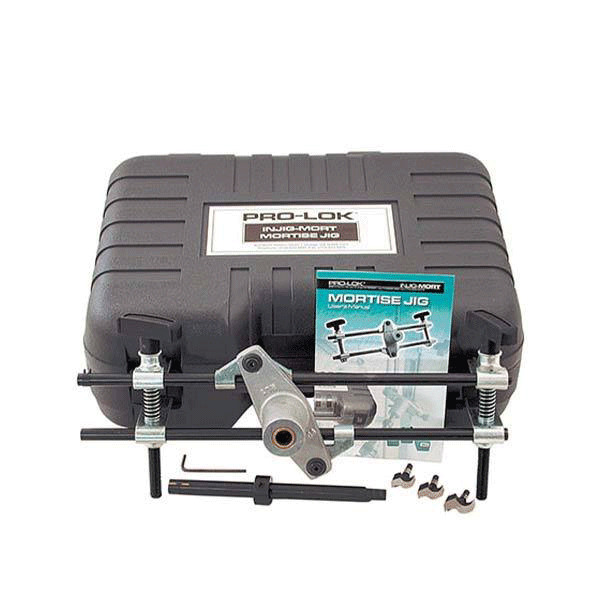

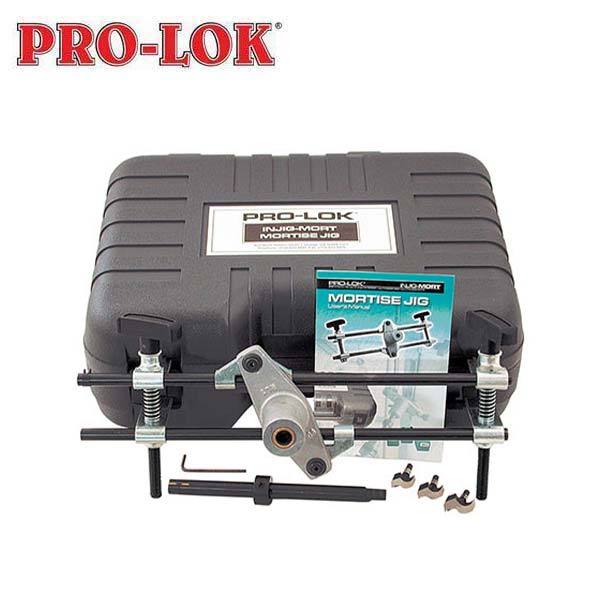

In addition to the self-centering Mortise Jig with aluminum housing, carrying case and instructions, the Kit includes:
- INJIGC-MORT-CWB22: 7/8″ Wood Screw Cutter
- INJIGC-MORT-CWB25: 1″ Wood Screw Cutter
- INJIGC-MORT-CWB32: 1 1/4″ Wood Screw Cutter
- INJIGC-MORT-CLS: Long Boring Shaft
INJIGC-MORT Product Instruction PDF
