KLF-RBP-3000S-LED-XXXX

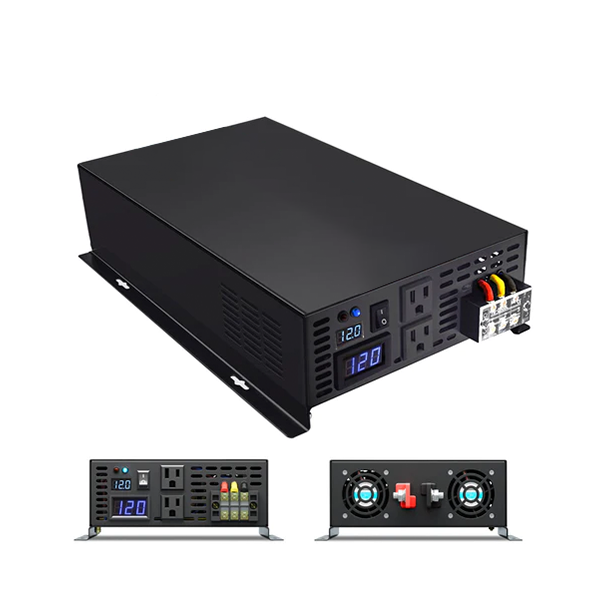

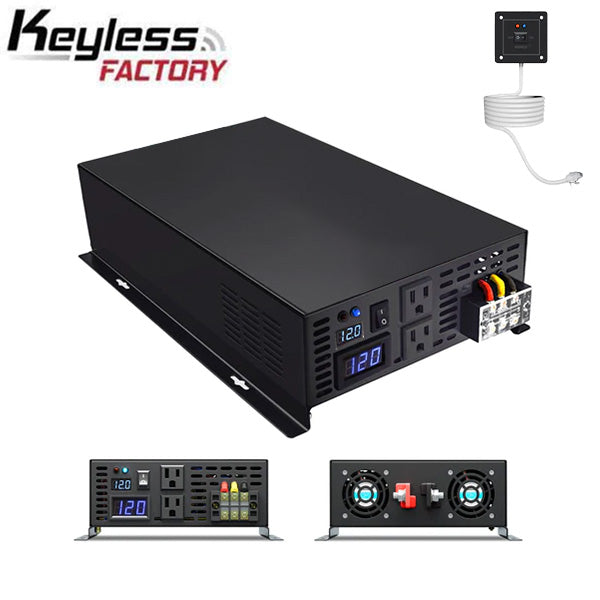

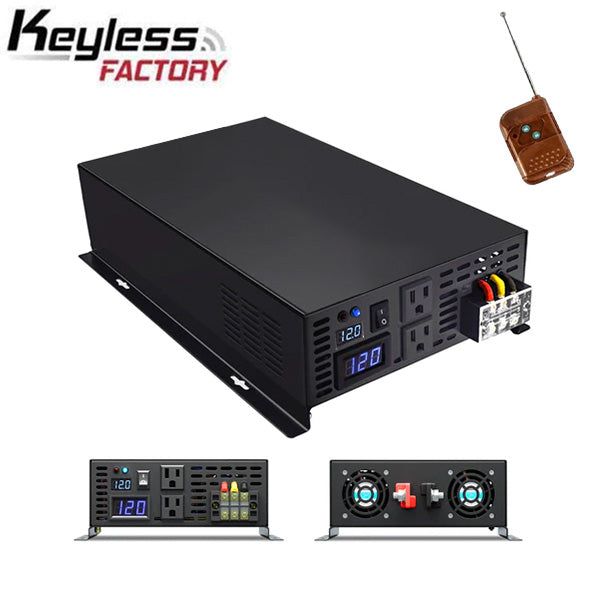

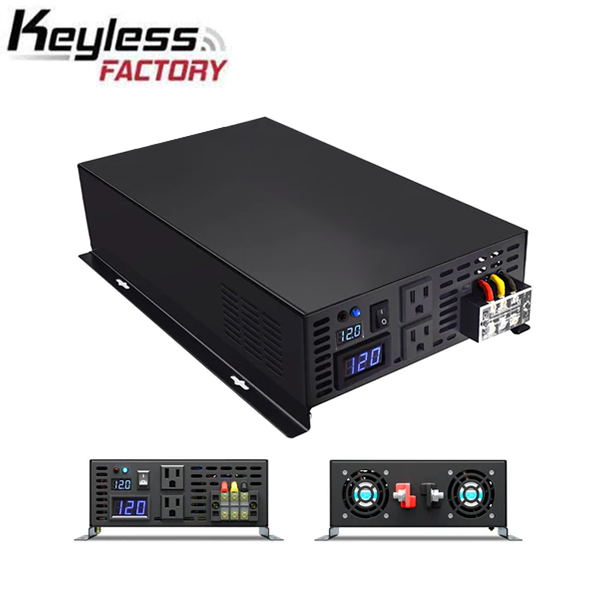

The KLF-RBP-3000S-LED is a 3000 Watt Bi-Directional Inverter Without USB Ports
More Details Below:
Net Weight (pound) | 9.68 |
Wattage | 3000w |
AC Output Voltage | 12v / 24v / 36v / 48v / 60v / 72v / 96v / 110v |
DC Input Voltage Range | 10-15v / 21-30v / 30v-45v / 42-60v / 50-75v / 60-90v / 75v-115v / 90-135v |
No Load Current Draw | 1.2A |
Efficiency | 85% -- 90% |
AC Regulation | 3% |
Frequency | 50Hz or 60Hz |
Low Voltage Alarm | 9.5-10.5v / 19.5-21.5v / 29.5v-31.5v / 43-45v / 50.5-51.5v / 60.5-61.5v / 76-77v / 91-93v |
Low Voltage Shut Down | 9-10v / 18.5-20.5v / 29-30v / 41.5-42.5v / 50-51v /60-61v / 74-76v / 90 |
Over Load | Shut Off & Recover Manually |
Over Voltage Shut Down | 15.5v / 30.5v / 45.5v /61.5v /75v / 90v / 115 / 135v |
Over Voltage Protection | Shut Off Output Automatically |

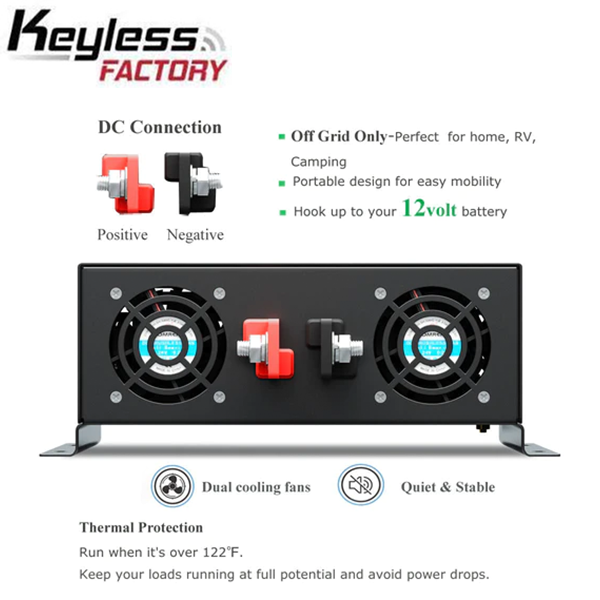

Cooling Fans | 2 |
Working Temperature | -10℃ TO 50℃ / -50℉ TO 122℉ |
Storage Temperature | -30℃ TO 70℃ / -86℉ TO 158℉ |
Working Humidity | 20% TO 90% RH Non-condensing |
Start | Soft Start |
Total Harmonic Distortion | THD<5% |
Sparking Input Side
