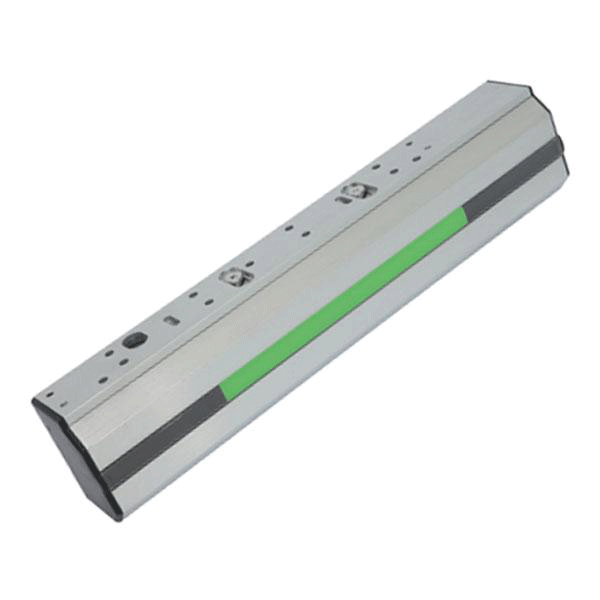

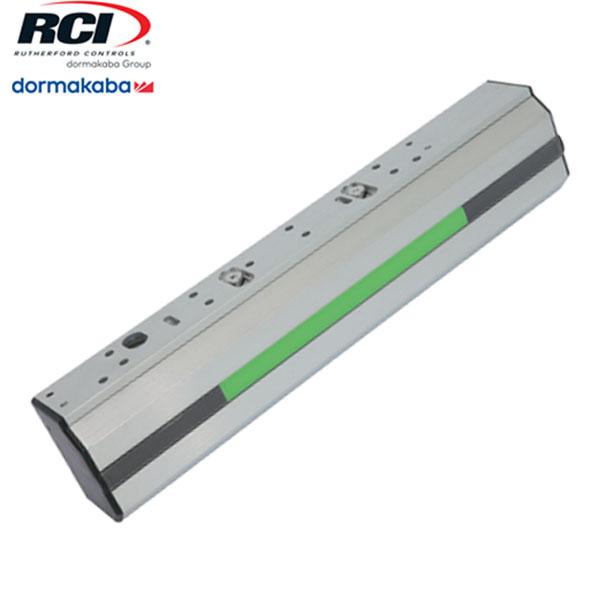

RCI - DE8310-28 - Single Door Maglock - 1200  lb Holding Force - w/ Delayed Egress - UHS Hardware
RCI - DE8310-28 - Single Door Maglock - 1200  lb Holding Force - w/ Delayed Egress - UHS Hardware

RCI - DE8310-28 - Single Door Maglock - 1200 lb Holding Force - w/ Delayed Egress

In Stock
SKU: RCI-RDE83108-US
NSID: 6633

Get it shipped ! Order within:

Get it shipped ! Order within:

Get an Extra Hour with

$921.00
$1,207.00
$921.00
RCI-RDE83108-US
  • Energy: 490mA Auto-Sensing 12-24VDC (Base unit, max at 12VDC)
  • Strength: Up to 1,200lbf Holding Force
  • Warranty: 5 Year Limited Warranty
  • Mode: Fail-Safe
  • Fire-Rated: CAN/ULC S104 UL 10C 1-1/2-Hour
  • Monitoring: Local & Remote Relay Outputs & Optional Built-In Sounder
Call 1-800-878-6604 for Bulk / Dealer Pricing!

Features and benefits:

The DE8310 Delayed Egress all-in-one lock can detect when pressure is applied to a door and can be field selected with a release delay of 15 or 30 seconds. This perimeter door solution is unique in that there is no need to replace existing door hardware, making it an easy and affordable access solution. The RCI DE8310 includes an external alarm sounder, keyswitch for reset and override, and a building code sign for single outswinging doors. The RCI DE8310-S includes a built-in sounder rather than the external sounder in the base unit. This electromagnetic lock series can be monitored locally or remotely through relay outputs. It is ideal for applications requiring loss prevention, life safety, and traffic control.

  • Built-in sensor detects when pressure is applied to outward swinging doors – no need to replace existing door hardware
  • Field-selectable 15 or 30 second release delay with fieldselectable 0 to 3 second nuisance delay
  • Provision for IBC, SBC, NFPA101, UBC, BOCA or NBC of Canada compliance
  • Unique highly visible red/green light panel indicates status of door (local)
  • Available with built-in sounder
  • Includes 960 Keyswitch for reset and override, Building Code Sign and base unit (DE8310) includes a 914 External Sounder
  • Dry contact SPDT relays provided for local and/or remote monitoring
  • Keyhole mounting for ease of installation
  • Convenient plug-in wiring harnesses
  • Easy-access wiring cavity
  • Stabilizing 4-bolt “drop stop” mounting
  • Surge protection
  • Designed to overcome residual magnetism
  • Includes self-drilling Teks® fasteners
  • DE8310 top jamb bracket kit (TJDE108) now available
  • Includes 5/8” (16mm) armature plate
  • Brushed Anodized Aluminum (28) finish
  • Ability to synchronize up to 4 doors (with or without mullion) using a converter. Please request further details2
  • UL 294 Special Locking Arrangements Component (6th Edition)
  • CAN/ULC S533 Special Locking Arrangements Components (4th Edition)
  • CAN/ULC S104 Auxiliary Locks Listed for fire doors rated up to 1-1/2-hour UL 10C Auxiliary Locks Listed for fire doors rated up to 1-1/2-hour
  •  Patent #’s: US 8,292,337 Canada 2,632,243
