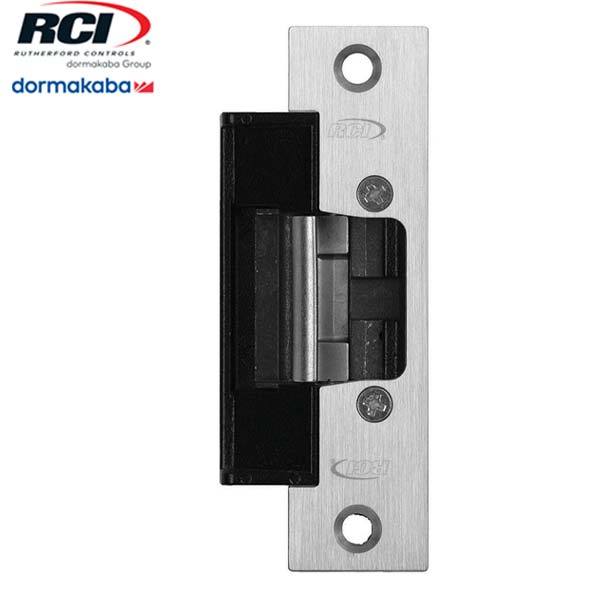

RCI S6514-32D - Centerline Electric Strike - Fail-Secure & Fail-Safe - Standard Profile - 32D- Brushed Stainless Steel
In Stock
SKU:
RCI-S6514-32D
NSID:
6631
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $116.05
-
$135.99 - $116.05
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
- 1-1/4"W x 4-7/8"H (32mm x 124mm) , ANSI Square Corners
- Standard profile accommodates 3/4" (19mm) latch projections
- 1/4" (6.4mm) horizontal adjustment
- Plug-in wire connectors
- Finish: Stainless Steel finish
- Trim plate included to cover up irregular frame cut-out
- Non-handed
- 375mA Field-Selectable 12/24VDC, 12-24VAC (At 12VDC)
- 1,500lbf Static 70ft-lb Dynamic (04 & 14 faceplates only. Grade 2, 1,000lbf static for 05, 07 & 08 faceplates)
- 500,000 Cycles (04 & 14 faceplates only. Grade 2, 1,000lbf static for 05, 07 & 08 faceplates)
- Field-Selectable Fail-Secure & Fail-Safe
- 3 Year Limited Warranty
Features and Benefits:
S6514-32D RCI 6 Series Standard Heavy Duty Centerline Electric Strike for ANSI square corners in Brushed Stainless Steel Finish.
The RCI S6514-32D electric strike series are used with aluminum, cylindrical, centerline mortise lock and exit devices. These electric strike combines several requested key features. Standard features include a multi-voltage single solenoid, selectable lock mode, horizontal adjustment, and plug-in wire connectors. The S65 Standard version is ideal when you require 3/4" latch projection.
