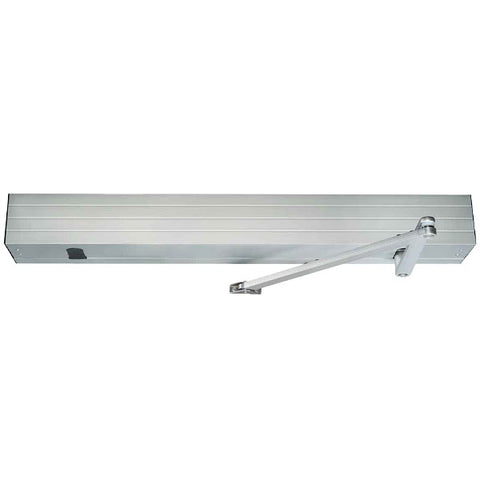

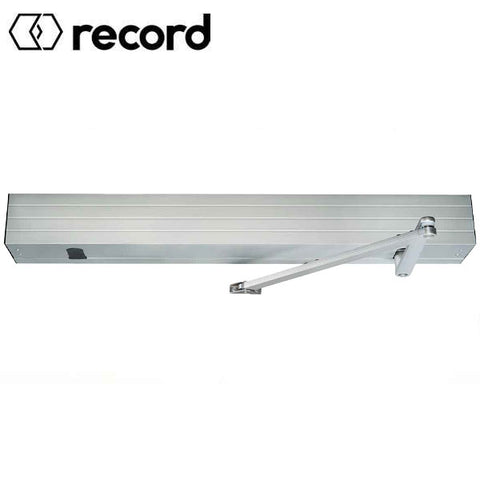

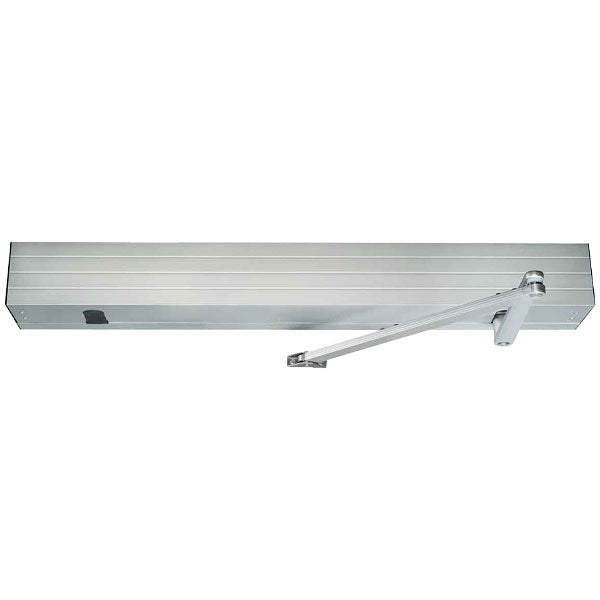

Record - SS8200 - Heavy Duty Low Energy Door Operator - PULL Arm - Right Hand/Left Hand- Clear Finishes For Single, Pairs or Double Egress Doors
Available to Order
SKU:
ENT-SS8252C1T3T-72
NSID:
71236
- $4,338.01
-
$2,766.60 - $4,338.01
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The Record SS8200 is both a left and right handed, low energy operator that can be used in almost any interior or exterior application. The SimpleLynk communications display not only allows the installer to set up an program the door on site, but also provides visual feedback of the door status. Designed to handle a maximum door weight of 700lbs- the SS8200 has been engineered to effectively handle the outward swinging door motion and also the inward swinging door motion. It contains built-in programmable controls and interfaces for electric combined with up to a 3-year-warranty-the SS8200 simply outperforms the competition.
Features:
- Non-Handed
- Can be used for interior or exterior applications
- SimpleLynk communications display allows the installer to properly set up and program the door
- Simple to install and program
- Push-to-start applications eliminate the need for additional activation accessories and complex wiring
- The latch assist function assures closing in areas with heavy stack conditions
- Interfaces with electric strikes without additional relays or delays
- Breakaway adapter to prevent operator or arm damage when abused
Specifications:
| Header Width Dimensions | 4.5" x 5.125" |
| Motor | 1/8hp (SD) and 1/4hp (HP) |
| Max Door Weights | 175lbs (SD), 400lbs (HD) |
| Opening Angle with Track Arm | 90° |
| Opening Angle with Standard Arm | 120° |
| Electrical Requirements | 120VAC @ 15amps 60hz |
| Power Supply | 24V AC/DC @.5amp for magnets, electric strikes |
| Certifications | ANSI/BHMA 156.19, UL325/UL228 |
| Operating Conditions | -40°F and +140°F |
