Rosslare - AC825IP - Expandable Networked Access Control Panel - Enclosed - 6 Readers - TCP/IP - 100K Users - 500K Event History - 12VDC

$990.55 $1,047.99
Availability: In Stock
  • Product SKU: ROS-AC-825IP-U
  • NSID: 51871
  • ROS-AC-825IP-U

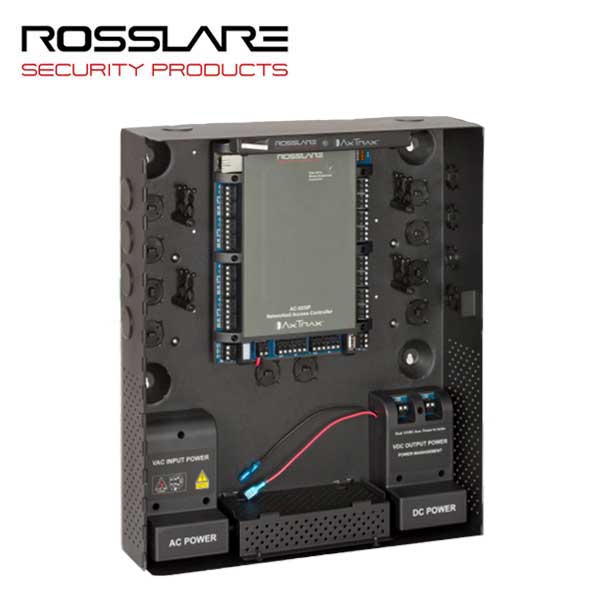

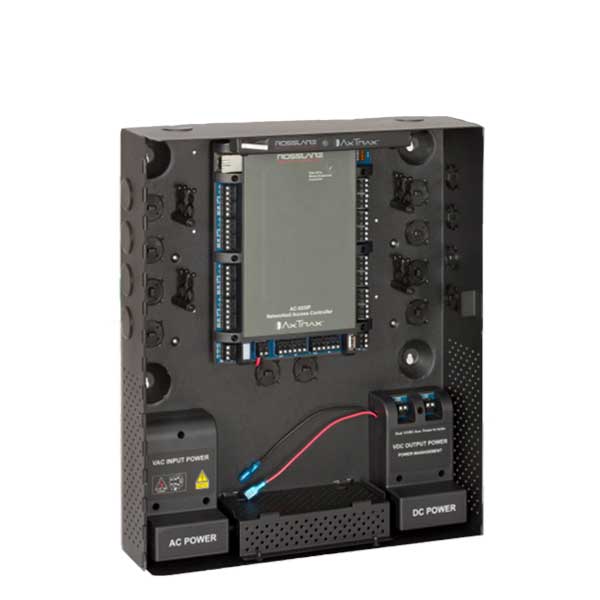

    The AC-825IP is a 6-door (4 Wiegand format & 2 OSDP readers) networked access controller suitable for a medium-scale to high-scale security system. The controller comes with one onboard expansion slot and can be further expanded by connecting up to 12 expansion boards via OSDP. Using D-805 door expansion boards, a single AC-825IP can handle up to 58 doors and 100,000 users. Driven by AxTraxNG™ – Rosslare’s powerful and flexible software – the system provides a modular and expandable solution for commercial and institutional needs.

    Features:

    • Mountable & lockable metal enclosure
    • Integrated with illumination bar, tamper sensing, power status LED, lockable C14 power plug.
    • Scalable and flexible, can fit a wide variety of applications
    • Supports up to 100,000 users in off-line mode, unlimited server based capacity
    • 500,000 event history entries per computer
    • Onboard TCP/IP networking with AES 128-Bit data encryption to an AxTraxNG Server
    • Bi-directional communication for enhanced data transmission speed and reliability
    • One onboard expansion slot and supports up to 12 additional expansion boards via RSDP (R/S/D/P-805)
    • supports a wide range of Wiegand and PIN formats



    $990.55
    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs

Specifications:

Type: Network Control Panel
Readers: Readers (Wiegand Format) 4, (OSDP Format) 2
Max Readers: 56
Power Cable Type:  Type B plug power cable
Relays 5A, Form-C: 6
Inputs: 12 supervised high impedance inputs. Max voltage: 5 VDC
Outputs: 6 supervised-high impedence inputs. 5 A DC, 150 W maximum. 12 VDC, 1.2 A typical (1.5 A max.)
Fuse:  250 V, 2.5 A
Interface: TCP/IP, OSDP, Wiegand, RSDP
TCP/IP On-board RJ-45 connector
Networking: Rosslare's AxTraxNG™ Server
Users: 100,000 active credentials (Card & PIN)
Event Log: 500,000 Events
Operating Voltage:  15 VDC, 2 A, regulated power management board
SMPS Max Input Current: Input: 100 to 240 VAC, 1.6 A, 50–60 Hz, switch mode power
management board, C13 power cord
SMPS Output Power: 12 VDC, 4 A
Battery Charger: 12 V sealed lead acid (SLA) up to 7 Ah, IEC62133
Housing: ME-1515 Power Management Enclosure
Dimensions: 13.6 x 15.9 x 4.0 in.
Standard Approvals: CE – Safety, ENC, RFI, LVD RED 2104/53/EU; FCC – CFR47 Part 15b. UL 294
Warranty: 2-Year Limited



Downloads:

ROS-AC-825IP-U

The AC-825IP is a 6-door (4 Wiegand format & 2 OSDP readers) networked access controller suitable for a medium-scale to high-scale security system. The controller comes with one onboard expansion slot and can be further expanded by connecting up to 12 expansion boards via OSDP. Using D-805 door expansion boards, a single AC-825IP can handle up to 58 doors and 100,000 users. Driven by AxTraxNG™ – Rosslare’s powerful and flexible software – the system provides a modular and expandable solution for commercial and institutional needs.

Features:

  • Mountable & lockable metal enclosure
  • Integrated with illumination bar, tamper sensing, power status LED, lockable C14 power plug.
  • Scalable and flexible, can fit a wide variety of applications
  • Supports up to 100,000 users in off-line mode, unlimited server based capacity
  • 500,000 event history entries per computer
  • Onboard TCP/IP networking with AES 128-Bit data encryption to an AxTraxNG Server
  • Bi-directional communication for enhanced data transmission speed and reliability
  • One onboard expansion slot and supports up to 12 additional expansion boards via RSDP (R/S/D/P-805)
  • supports a wide range of Wiegand and PIN formats


Specifications:

Type: Network Control Panel
Readers: Readers (Wiegand Format) 4, (OSDP Format) 2
Max Readers: 56
Power Cable Type:  Type B plug power cable
Relays 5A, Form-C: 6
Inputs: 12 supervised high impedance inputs. Max voltage: 5 VDC
Outputs: 6 supervised-high impedence inputs. 5 A DC, 150 W maximum. 12 VDC, 1.2 A typical (1.5 A max.)
Fuse:  250 V, 2.5 A
Interface: TCP/IP, OSDP, Wiegand, RSDP
TCP/IP On-board RJ-45 connector
Networking: Rosslare's AxTraxNG™ Server
Users: 100,000 active credentials (Card & PIN)
Event Log: 500,000 Events
Operating Voltage:  15 VDC, 2 A, regulated power management board
SMPS Max Input Current: Input: 100 to 240 VAC, 1.6 A, 50–60 Hz, switch mode power
management board, C13 power cord
SMPS Output Power: 12 VDC, 4 A
Battery Charger: 12 V sealed lead acid (SLA) up to 7 Ah, IEC62133
Housing: ME-1515 Power Management Enclosure
Dimensions: 13.6 x 15.9 x 4.0 in.
Standard Approvals: CE – Safety, ENC, RFI, LVD RED 2104/53/EU; FCC – CFR47 Part 15b. UL 294
Warranty: 2-Year Limited



Downloads:
