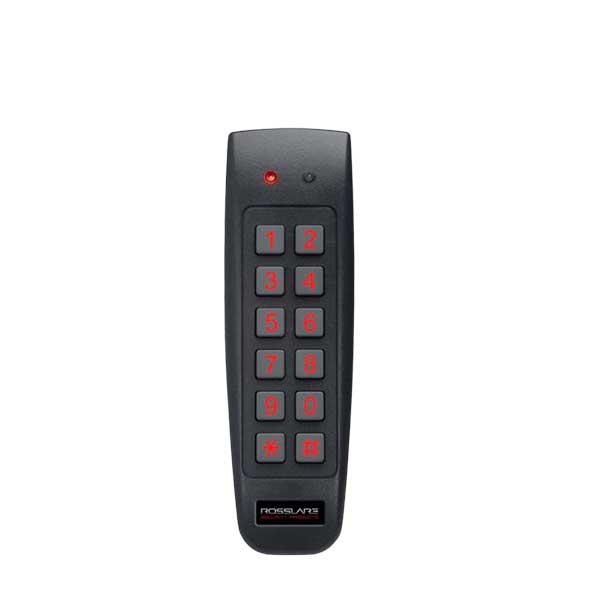

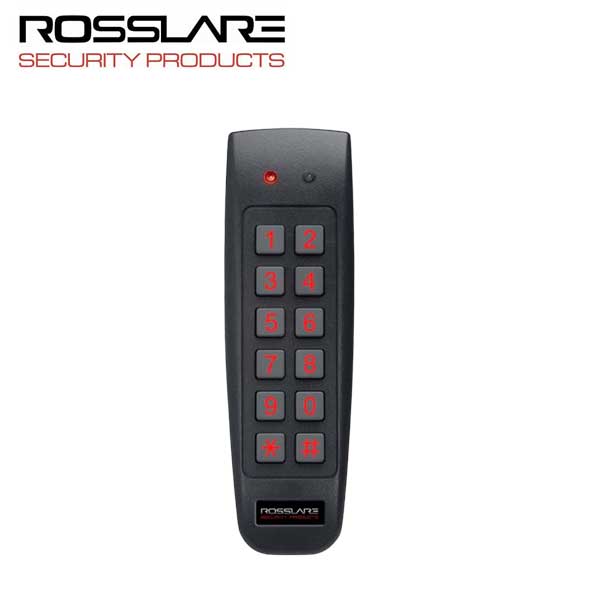

Rosslare - AYCG54 - Mullion Convertible Backlit PIN Reader
Rosslare - AYCG54 - Mullion Convertible Backlit PIN Reader
Rosslare - AYCG54 - Mullion Convertible Backlit PIN Reader
Rosslare - AYCG54 - Mullion Convertible Backlit PIN Reader
Rosslare - AYCG54 - Mullion Convertible Backlit PIN Reader

Rosslare - AYCG54 - Mullion Convertible Backlit PIN Reader

$78.86 $94.63
Available: In Stock
Wishlist
  • Product SKU: ROS-AYC-G54
  • ROS-AYC-G54

    The AYC-G54 offers programmable PIN transmission formats, LED control and tamper
    detection, providing extra security and flexibility. Come rain or shine, this unit can handle the challenge, with its rugged ultraviolet-resistant housing and waterproof enclosure for maximum durability. The backlit keypad is clearly visible day or night,
    making this unit ideal for residential and commercial applications.



    Features:

    • Supports 4- to 8-Digit PIN credentials
    • Smooth, attractive design, with all-weather indoor and outdoor operation
    • Large, high-visibility RED backlit keypad
    • 2 tri-colored LEDs and an integral sounder for programming and operation
    • User-friendly menu, based on keypad, LED and sounder indicators
    • Back and cover optical tamper detection and output
    • Automatically recognizes Rosslare’s PS-x25T intelligent power supply family
      converting it into a 500-user standalone controller with secure relays
    •

    $78.86

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)



Operating Voltage Range
Reader mode: 5 to 16 VDC from a standard controller
Controller mode: PS-x25T series intelligent power supplies
Input Current 75 mA at 12 VDC
Input Current Max 110 mA at 16 VDC
Tamper Open collector, active low, 32 mA max sink current
Keypad 2x6 keypad for local programming and 4 to 8 digit PIN codes entry
Design Epoxy-potted, fully-sealed in a rugged polycarbonate enclosure. Red illuminated rubber keys. Suitable for harsh environments.
Security Modes Normal, Bypass, Secure
Audio/Visual Two tri-color LED indicators, built-in buzzer
LED Control Input
Dry Contact N.O.
Facility Code Programmable
PIN Code Formats 8 selectable formats, from single to 8-digit PIN codes, including:
– Wiegand 6-Bit or 8-Bit, nibble/parity options, optional Rosslare
format
– 1–5 keys, fixed 4 keys, 6 keys BCD w/Facility code, Wiegand 26-
bit
– 2x6 Matrix single key
– 1 to 8 keys BCD, Clock & Data
Capacity 500 users, single/dual PIN code each
User Levels Normal, Secure, Master
Security Modes Normal, Bypass, Secure
Inputs REX (Request to Exit)
Auxiliary/Door Monitor with 10 programmable modes
Operating Temperature -35°C to 66°C (-31°F to 151°F)
Operating Environment Weather-resistant, meets IP65, epoxy-potted, suitable for outdoor use
Dimensions 137 x 44 x 21 mm (5.4 x 1.7 x 0.8 in.)
Manufacture Warranty 5-Year Limited Warranty
