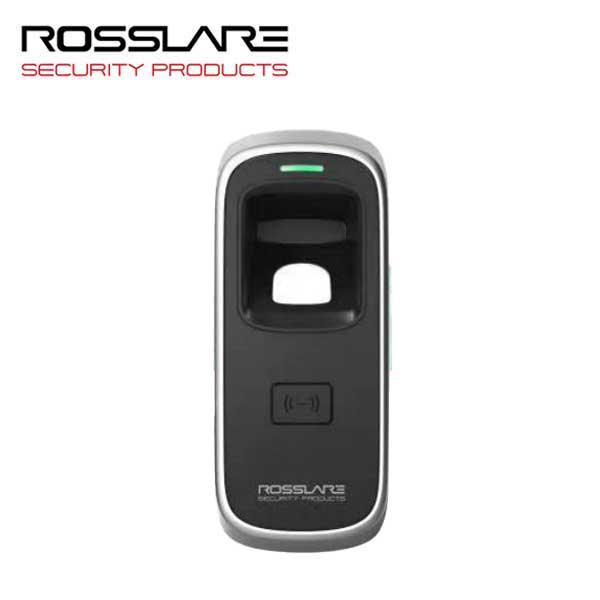

Rosslare - B8620 - Access Control Fingerprint & Card Reader - Outdoor - 7000 Users - 125 kHz EM - 12VDC - IP65
In Stock
SKU:
ROS-AY-B8620
NSID:
25267
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $290.59
-
$292.24 - $290.59
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The AY-B8620 features a rugged metal case (IK10) and epoxy potting for protection. This fingerprint and 125 KHz EM RFID card reader is suitable for indoor and outdoor operation (IP65). AY-B86x0 can enroll 7,000 fingerprint templates (1:N) and enables dual factor authentication (Fingerprint + Card). It can connect via Wiegand to any third-party access control panel and has TCP/IP connectivity for terminal management. The reader can be set up easily using the AxTraxNG Client software. Alternatively, Rosslare’s standalone RosslareBio 8000 management software is perfect for interfacing with existing third-party systems.
Features
- Supported by Rosslare AxTraxNG software
- Small compact design for indoor/outdoor use
- Anti-vandal (IK-10)
- Capacity for 7000 templates 1:7000 with highspeed CPU (search time is less than 1 s)
- Combined RFID card and fingerprint for highersecurity with dual factor applications
- Built-in TCP/IP / RS-485, and Wiegand connectivity
- 100,000 non-volatile event log
- Wide thermal operating range (-20°C to 60°C)
- Built-in buzzer and LED indication
Specifications:
| Technology: | Optical (sealed optical chamber, scratch-resistant glass, wet or dry finger) |
| Image Resolution: | 500 DPI |
| Scan Area: | 22 x 18 mm (0.9 x 0.7 in.) |
| Capacity: | Up to 7000 biometric templates on reader |
| Time 1: N | < 1 s |
| RFID: | 125 kHz EM credential reader |
| CPU: | 32-bit ARM core |
| Communication Ports: |
Wiegand, RS-485, TCP/IP (10/100 Mbps), mini-USB |
| Dimensions: | 2.0 x 4.9 x 1.4 in. |
| Ratings: | IP65, IK10 |
| Power: | +12 VDC regulated power supply |
| Certifications: | CE & FCC |
