Rosslare - B9350 - Networked Biometric Terminal Electronic Deadbolt - Face, Fingerprint, & RFID Reader - 50,000 users - Touch Screen - 12VDC
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $2,488.70
-
$3,211.22 - $2,488.70
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

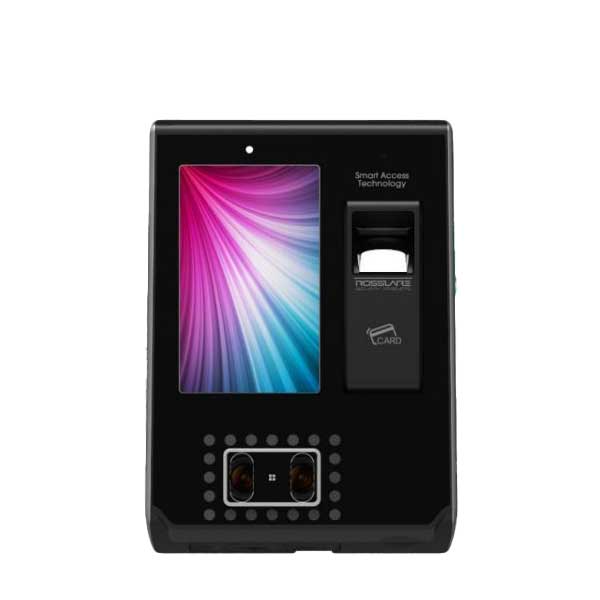

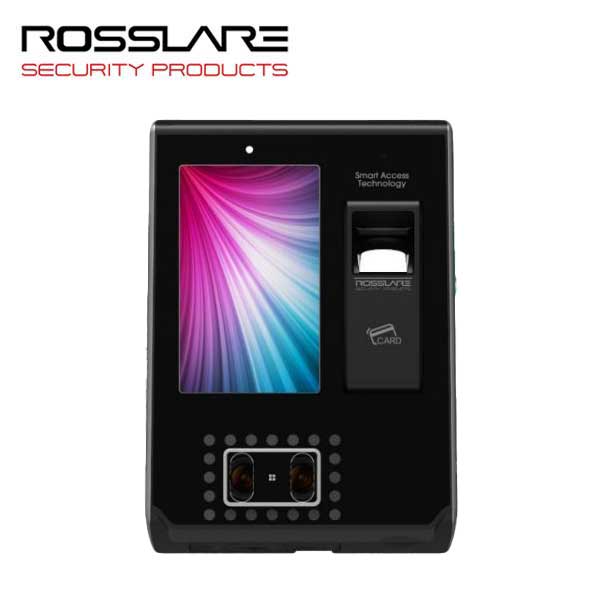

The AY-B9350 is a high-performance Face and Fingerprint recognition reader with MIFARE® 13.56 MHz and EM 125 kHz card reader. It has an Android OS with a touch LCD. The dual IR/RGB camera has a motorized tilt for face finding, making the unit user friendly regardless of the height of the user. Advanced features include support for 100,000 fingerprint templates, 10,000 (1:1) & 2,000 (1:N) face templates, and innovative algorithms with liveness check. Connection is easy with TCP/IP, RS-485, Wiegand in/out (26-/34-Bit). The terminal can be set up easily using the AxTraxNG Client software. Alternatively, it is compatible with Rosslare’s standalone RosslareBio 9000 management software that is perfect for interfacing with existing third-party systems. This product features the latest design and engineering to achieve a best-in class solution.
Features
- Multi-factor Authentication: face, card, fingerprint and pin code
- Advanced optical sensor with fingerprint liveness check algorithms prevent spoofing.
- Large capacity for 100,000 templates - 1:Many and support for 1:1 Matching Mode
- High performance CPU and memory for high speed validation (up to 1 second)
- Built-in TCP/IP, RS-485, Wiegand output connectivity
- Dual technology – MIFARE (13.56 MHz) + EM (125 kHz) RFID card reader
- Colored dual camera, for ensuring best face authentication (IR and Visible light)
- Non-volatile event log of up to 1,000,000 entries
- Wide thermal operating range (-20°C to 60°C)
- Built-in tamper and buzzer
- Modern design that blends into almost any architectural challenge
Specifications:
| Fingerprint Technology: | Optical, liveness check, 500 DPI, 20 x 20 mm |
| Face Technology: | 2 Cameras (IR+Color), 20 IR LED Illumination: Motor Tilt |
| Image/Template Format: | ISO 19794-2, ANSI 378, FBI PIV Certified |
| Liveness Detection: | Yes |
| Fingerprint Capacity: | 100,000 (2 templates, 1 finger, 50,000 users) |
| RFID Capacity: | 100,000 |
| Face Capacity: | 10,000 (1:2000) |
| Authentication Speed: |
Up to 1 second |
| Card Reader: | MIFARE (13.56 MHz) RFID and EM (125 kHz) – Dual Technology |
| CPU: | Cortex-A9 Quad Core, 1GHz |
| Memory: | 4G + 8G bytes flash, 2GB RAM |
| External SD Card Support: | Data backup / FW upgrade |
| Communication: | Wiegand (26-/34-Bit), RS-485, TCP/IP (10/100 Mbps) |
| Authentication Method: | Fingerprint, RF Card, Face, pin code (or combination) |
| Logs: | 1,000,000 event logs, 20,000 image logs |
| Operating System: | Touch Menu System based on Android OS |
| LCD: | 5” Touch LCD (480*800) with Android interface |
| Lock: | Deadbolt, EM Lock, Door Strike, Automatic Door |
| I/O: | 4 IN (1 exit, 3 monitor) 2 OUT (also for lock control) |
| Dimensions: | 5.8 x 8.2 x 1.8 in. |
| Power: | +12 VDC |
| Device Certifications: | CE, FCC |
Downloads:
