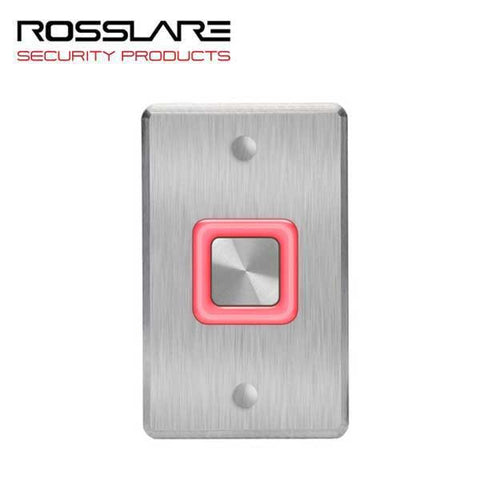

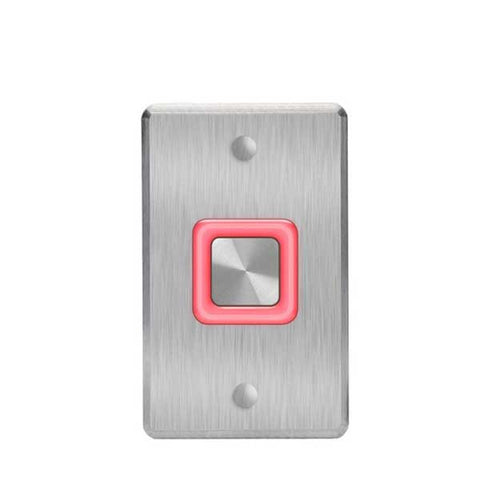

Rosslare - EX07OO - Request To Exit Button w/Toggle - No Print - Digital Piezo- 12-24 VDC
Rosslare - EX07OO -  Request To Exit Button w/Toggle - No Print - Digital Piezo- 12-24 VDC
Rosslare - EX07OO -  Request To Exit Button w/Toggle - No Print - Digital Piezo- 12-24 VDC
Rosslare - EX07OO -  Request To Exit Button w/Toggle - No Print - Digital Piezo- 12-24 VDC
Rosslare - EX07OO -  Request To Exit Button w/Toggle - No Print - Digital Piezo- 12-24 VDC

Rosslare - EX07OO - Request To Exit Button w/Toggle - No Print - Digital Piezo- 12-24 VDC

$82.98 $83.45
Availability: Available to Order
  • Product SKU: ROS-EX-07OO
  • NSID: 25347
  • ROS-EX-07OO

    Rosslare’s EX-07OO electronic REX buttons control the access of a
    magnetic lock or electric lock strike. The EX-07EOO is heavy-duty, non-sparking, non-magnetic, corrosion resistant, illuminated, antivandal, timed digital REX

    Features:

    • REX Button Technology: Advanced Soft Touch Piezoelectric REX
      Button
    • New Weatherproof Design: Circuit assembly encapsulation
    • Vandal Resistant: Stainless steel mounting plate and solid state REX
      button (Vandal was not verified by UL)
    • Adjustable Output Time: The timer can be set from 1 to 60
      seconds for the relay as well as for LED activation
    • Field Selectable Illumination Status: Jumper selected
    • Mounting Method: Mounts directly to a single gang switchbox


    $82.98
    Please Note: This product has a lead time
    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs





Specifications:

Type
Piezo
Sensor / Switch Type
Digital (Toggle)
Operating Voltage
12-24 VDC
Led Type
Square
IP Rating IP65
Dimensions 11.4 x 7 x 3.2 cm (4.5 x 2.76 x 1.26 in.)
Output Mode Selectable Toggle or timed Pulse
Operating Temperature -35˚C to 66˚C (-31˚F to 151˚F)
Relay Expectancy 100,000 @ 2 A 30 VDC
500,000 @ 1 A 30 VDC
Manufacturer's Warranty: Limited Product Warranty



Downloads:

ROS-EX-07OO

Rosslare’s EX-07OO electronic REX buttons control the access of a
magnetic lock or electric lock strike. The EX-07EOO is heavy-duty, non-sparking, non-magnetic, corrosion resistant, illuminated, antivandal, timed digital REX

Features:

  • REX Button Technology: Advanced Soft Touch Piezoelectric REX
    Button
  • New Weatherproof Design: Circuit assembly encapsulation
  • Vandal Resistant: Stainless steel mounting plate and solid state REX
    button (Vandal was not verified by UL)
  • Adjustable Output Time: The timer can be set from 1 to 60
    seconds for the relay as well as for LED activation
  • Field Selectable Illumination Status: Jumper selected
  • Mounting Method: Mounts directly to a single gang switchbox





Specifications:

Type
Piezo
Sensor / Switch Type
Digital (Toggle)
Operating Voltage
12-24 VDC
Led Type
Square
IP Rating IP65
Dimensions 11.4 x 7 x 3.2 cm (4.5 x 2.76 x 1.26 in.)
Output Mode Selectable Toggle or timed Pulse
Operating Temperature -35˚C to 66˚C (-31˚F to 151˚F)
Relay Expectancy 100,000 @ 2 A 30 VDC
500,000 @ 1 A 30 VDC
Manufacturer's Warranty: Limited Product Warranty



Downloads:
