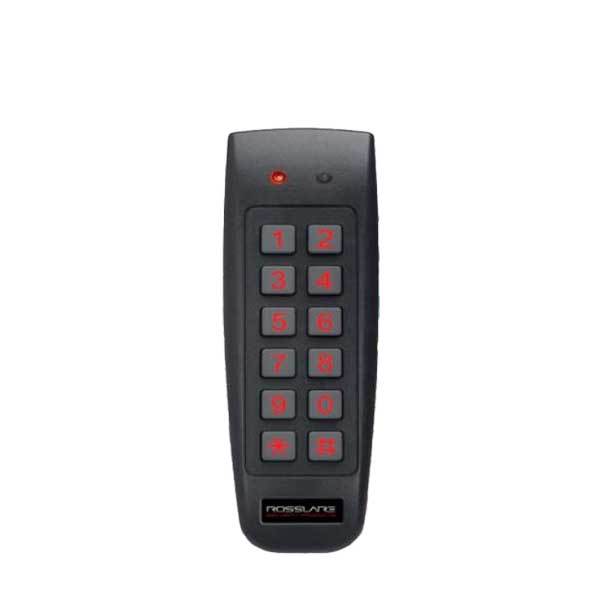

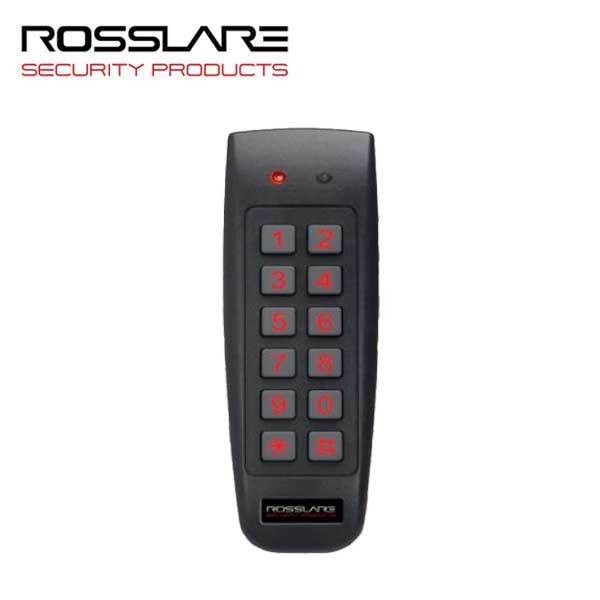

Rosslare - G44 - Mullion Backlit PIN & PROX Standalone Controller - Outdoor - 500 Users - 12-24VDC - IP65
Rosslare - G44 - Mullion Backlit PIN & PROX Standalone Controller - Outdoor - 500 Users - 12-24VDC - IP65
Rosslare - G44 - Mullion Backlit PIN & PROX Standalone Controller - Outdoor - 500 Users - 12-24VDC - IP65
Rosslare - G44 - Mullion Backlit PIN & PROX Standalone Controller - Outdoor - 500 Users - 12-24VDC - IP65
Rosslare - G44 - Mullion Backlit PIN & PROX Standalone Controller - Outdoor - 500 Users - 12-24VDC - IP65

Rosslare - G44 - Mullion Backlit PIN & PROX Standalone Controller - Outdoor - 500 Users - 12-24VDC - IP65

$142.44 $162.09
Availability: Available
Wishlist
  • Product SKU: ROS-AC-G44
  • NSID: 25236
  • ROS-AC-G44

    Rosslare’s newest standalone backlit PIN & PROXIMITY controller, the AC-G44, is a cost effective solution for indoor and outdoor systems where pin and/or proximity credentials are required. This durable model can be easily programmed with up to 500 users on a single door. The AC-G44 is compatible with the BL-D40 alarm, chime and door bell enunciator/strobe unit, as well as with the EX-01 Push to Exit button.

    Features

    • Up to 500 users can be coded using Smart enroll and delete technology
    • Mounting template and installation kit are provided
    • Three user levels: Normal – Requires single PIN code, Secure – Requires both PIN and PROX card, Master User
    • Three access levels: Normal, Bypass, Secure
    • Suitable for Gang Box installations
    • Programmable PIN code length of 4-digits to 8-digits
    • Powered either by transformer (AC) or regulated power supply (DC)


    $142.44
    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs

Specifications:

Operating Voltage Range: 12 to 24 VDC, from a regulated power supply
16 to 24 VAC, from a transformer
Input Current: Standby: 95 mA at 12 VDC
Maximum: 160 mA at 12 VDC
Relay Outputs: Lock Strike: 2 A Form C, N.O. and N.C.
Auxiliary: 2 A Form C, N.O. and N.C.
Tamper: Optical back tamper sensor
Inputs: REX: N.O. Dry Contact. Auxiliary (In/Monitor): N.O. Dry Contact. 10 Programmable modes
Proximity Card Reader: Maximum read range: : 80 mm (3.15 in.)
Modulation: ASK at 125 kHz
Compatible cards: All 26-Bit EM cards
Capacity: 500 users, dual code/card or code + card each
Keypad: 2x6 keys for local programming and 4- to 8-digit PIN codes entry
User levels:
Normal, Secure, Master
Security Modes: Normal, Bypass, Secure
Audio/Visual: Interface for BL-D40 (bell, chime and siren enunciator)
Two tri-color LED indicators, built-in sounder
Design: Epoxy potted, fully-sealed in a rugged polycarbonate enclosure. Red illuminated rubber keys. Suitable for harsh environments.
RFI Protection: > 20 V/m up to 1000 MHz
Dimensions: 5.33 x 1.74 x 1.12 in.
Certifications: IP65 Water Resistant
Manufacturer's Warranty: 5-Year Limited Product Warranty

Downloads:


Spec Sheet
Installation Guide

ROS-AC-G44

Rosslare’s newest standalone backlit PIN & PROXIMITY controller, the AC-G44, is a cost effective solution for indoor and outdoor systems where pin and/or proximity credentials are required. This durable model can be easily programmed with up to 500 users on a single door. The AC-G44 is compatible with the BL-D40 alarm, chime and door bell enunciator/strobe unit, as well as with the EX-01 Push to Exit button.

Features

  • Up to 500 users can be coded using Smart enroll and delete technology
  • Mounting template and installation kit are provided
  • Three user levels: Normal – Requires single PIN code, Secure – Requires both PIN and PROX card, Master User
  • Three access levels: Normal, Bypass, Secure
  • Suitable for Gang Box installations
  • Programmable PIN code length of 4-digits to 8-digits
  • Powered either by transformer (AC) or regulated power supply (DC)

Specifications:

Operating Voltage Range: 12 to 24 VDC, from a regulated power supply
16 to 24 VAC, from a transformer
Input Current: Standby: 95 mA at 12 VDC
Maximum: 160 mA at 12 VDC
Relay Outputs: Lock Strike: 2 A Form C, N.O. and N.C.
Auxiliary: 2 A Form C, N.O. and N.C.
Tamper: Optical back tamper sensor
Inputs: REX: N.O. Dry Contact. Auxiliary (In/Monitor): N.O. Dry Contact. 10 Programmable modes
Proximity Card Reader: Maximum read range: : 80 mm (3.15 in.)
Modulation: ASK at 125 kHz
Compatible cards: All 26-Bit EM cards
Capacity: 500 users, dual code/card or code + card each
Keypad: 2x6 keys for local programming and 4- to 8-digit PIN codes entry
User levels:
Normal, Secure, Master
Security Modes: Normal, Bypass, Secure
Audio/Visual: Interface for BL-D40 (bell, chime and siren enunciator)
Two tri-color LED indicators, built-in sounder
Design: Epoxy potted, fully-sealed in a rugged polycarbonate enclosure. Red illuminated rubber keys. Suitable for harsh environments.
RFI Protection: > 20 V/m up to 1000 MHz
Dimensions: 5.33 x 1.74 x 1.12 in.
Certifications: IP65 Water Resistant
Manufacturer's Warranty: 5-Year Limited Product Warranty

Downloads:


Spec Sheet
Installation Guide
