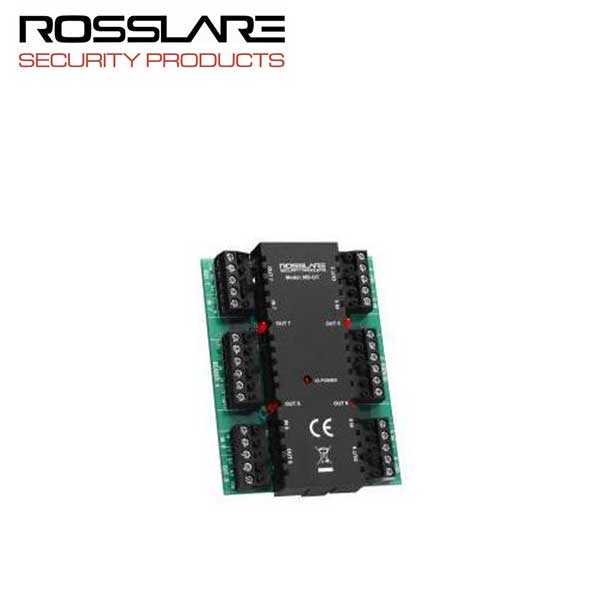

Rosslare - MDD02 - Two Reader Expansion Board - 12VDC
Rosslare - MDD02 - Two Reader Expansion Board - 12VDC
Rosslare - MDD02 - Two Reader Expansion Board - 12VDC
Rosslare - MDD02 - Two Reader Expansion Board - 12VDC
Rosslare - MDD02 - Two Reader Expansion Board - 12VDC

Rosslare - MDD02 - Two Reader Expansion Board - 12VDC

$152.06 $173.04
Availability: Available
Wishlist
  • Product SKU: ROS-MD-D02
  • NSID: 25389
  • ROS-MD-D02

    The ROS-MD-D02  2 Reader expansion board is designed with a focus on high quality and reliability and is ideal for residential and commercial applications. Easy to install and operate, the MD-D02 expansion board features state-of-the-art supervised communications with the controller. The expansion board adds two additional readers or keypad inputs; four relay outputs and four supervised inputs to the access control panel. As a result, an access control panel with the MD-D02 expansion board can support a total of four readers and four doors. In addition, it is possible to add any keypad or biometric reader that supports the Wiegand, Clock-and-Data or any other format supported by Rosslare's AS-525 AxTrax Software transmission formats. The host access controller has complete control over the additional readers, inputs and outputs of the MD-D02 expansion board.



    Features:

    • Additional two proximity readers or keypads
    • Four relay outputs and four supervised inputs to the access control panel
    • Wiegand or Clock-and-Data transmission keypad or biometric reader compatibility
    • LED status feedback for 12V power and relay activation
    • Cost effective and modular installation
    • Compatible with Rosslare’s AC-225 and AC-525 networked access controllers
    • Input and output configurability using Rosslare’s AS-525 AxTrax software
    • Backed by Rosslare's International Guarantee and service with ISO9001 (Certified TUV Rhineland) level business and manufacturing operations

    $152.06
    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs


Specifications:

Input Voltage  12V DC from host controller
Input Current Standby: 30mA
Maximum: 135mA
Number of Reader Ports 2
Number of Inputs 4
Output Relays 4 x 5A with N.O., N.C. and COM contacts Form-C Relays
Inputs Voltage 5V DC maximum voltage
Reader Output Voltage 12V DC
Max. Reader Current 300 mA
LED Control Output Open collector, active low
Tamper Input 5V DC maximum voltage
Dimensions 3.93 x 2.98 x 1.28 inch (100 x 75.9 x 32.5 mm)
Manufacture Warranty 5-Year Limited Warranty
