*Discontinued* Rosslare - PC-C25TU - Power Management Enclosure - w/ Secure Relay I/O Module - 12-15VDC
Out of Stock
SKU:
ROS-PS-C25TU
NSID:
25413
- $64.91
-
- $64.91
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
ROS-PS-C25TU

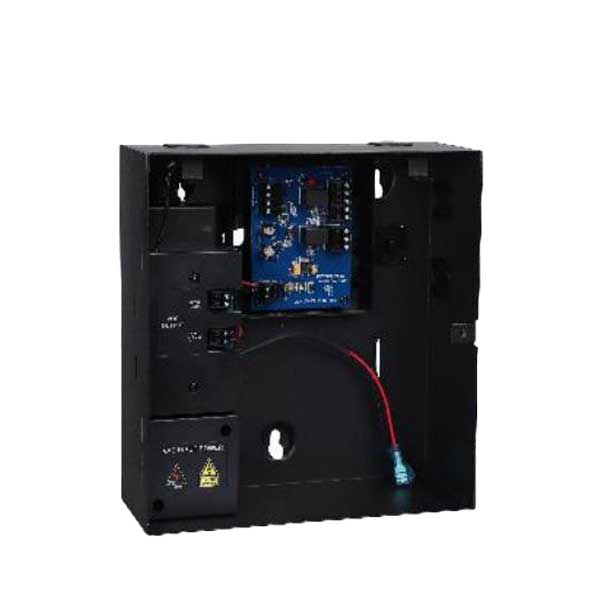

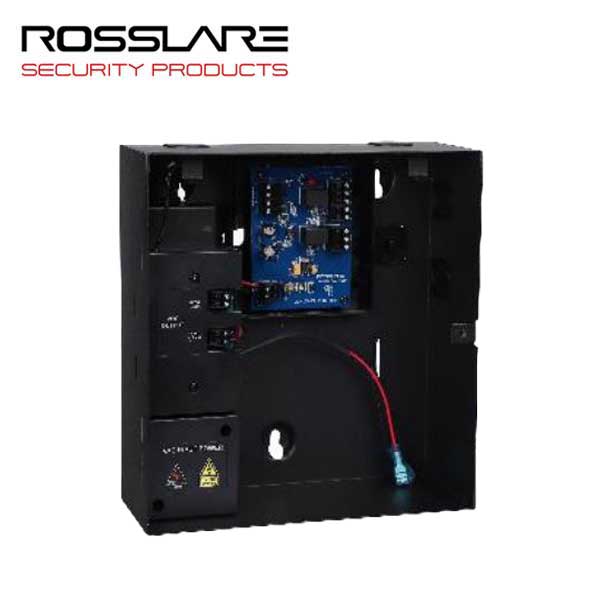

The PS-C25TB is a Power Management Enclosure for use with Rosslare's Secure Stand-Alone Controller Unit. It is a combination of the ME-0515M Multipurpose Power Management Enclosure and the MD-25TB Secure Relay I/O Module preassembled for installation convenience. The enclosure features a switch-mode power supply (SMPS) that outputs power to the PM-05 power management module.
More Information Below
- $64.91
-
- $64.91
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xSpecifications:
| SMPS Input: | 110 – 240 VAC, 50/60 Hz, 1.5 A |
| SMPS Output: | 15 VDC, 4 A |
| PM-05 Input: | 15 VDC, 4 A |
| PM-05 DC Output: | 14.5 VDC, 2 A (CH1/CH2) |
| PM-05 Battery Charge current: | 1.5 A |
| MD-25TB Input: | 12 VDC, 2 A |
| MD-25TB Output: | 12 VDC, 0.25 A (PCB maximum output current) 5 A Form C, SPDT Relay |
| MD-25TB Auxiliary Output: | Max Switched Current: 5 A Max Switched Voltage: 150 VDC or 300 VAC UL Rating: 5 A at 30 VDC or 5 A at 125 VAC |
| MD-25TB Speaker Output: | 0.25 W, 8 Ω (minimum) |
| MD-25TB LED indicators: | Power status: Red – power on Off – power off |
|
Backup Battery |
12 VDC lead acid battery up to 7 Ah |
| Dimensions: | 8.9 x 8.81 x 3.3 in. |
Downloads:
- Installation Manual
