Rosslare - PC-P17 - Power Supply Board For Networked Controllers - PCBA - 12 VDC
Available to Order
SKU:
ROS-PC-P17
NSID:
25411
- $28.87
-
$34.64 - $28.87
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

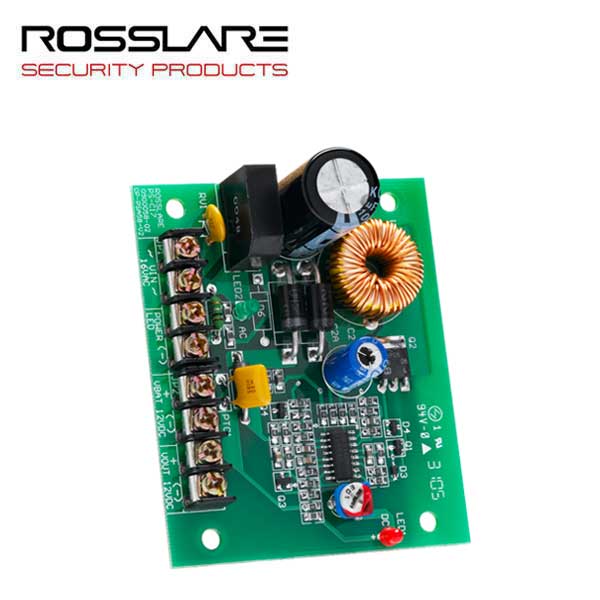

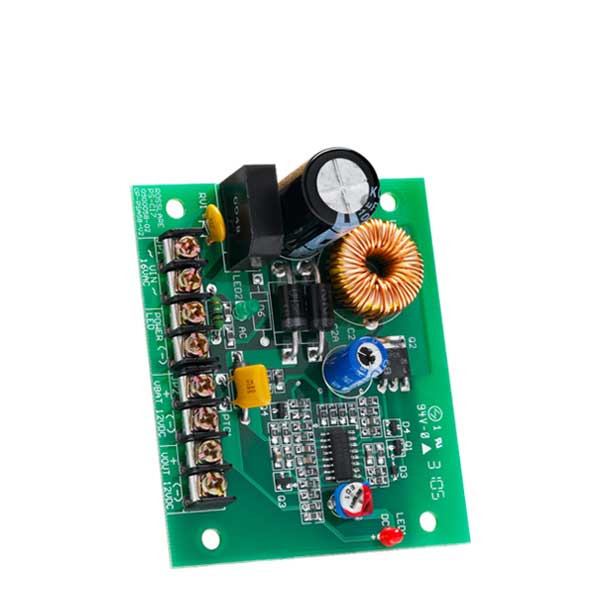

The PC-P17 Printed Circuit Board Assembly is a 12VDC / 2 A General purpose power supply unit. Input: 16 VAC / 50 Hz from transformer Output: 12 VDC / 2.0A Built-in battery charger, space for 7Ah battery (battery not included). Used with most access control power suppliers.
More Information Below
Specifications:
| Input Voltage: | 16 VAC, 2.42 A |
Backup Battery |
12 VDC lead acid battery up to 7 Ah |
| To Relay Outputs – Output Voltage 1: |
12 VDC,0.5 A |
| To Access Control Panel – Output Voltage 2: |
12 VDC, 1.5 A |
| Tamper Output: | Indicates faulty power |
| Power In (AC) – Green LED1: | Main power |
| Power Out (DC) – Red LED2: | Low voltage |
| Low Battery – Red LED3: | Backup battery low voltage |
