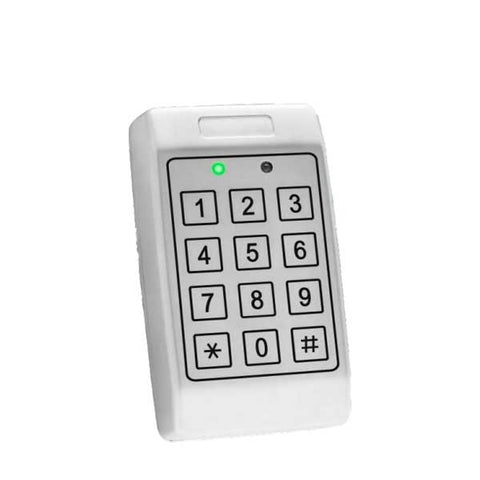

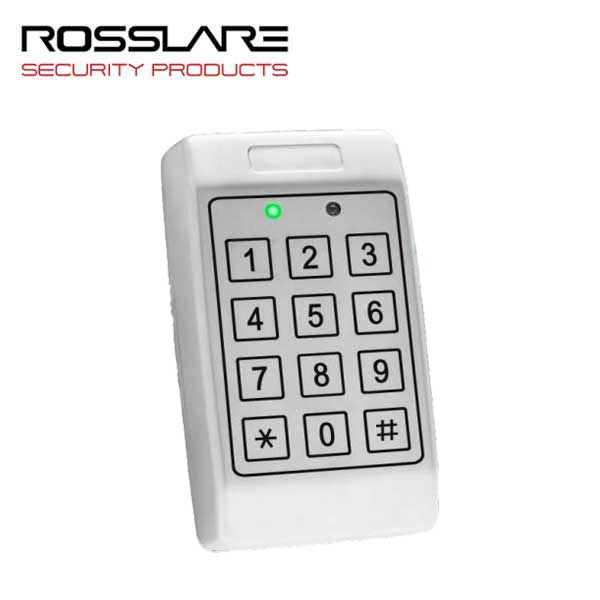

*Discontinued* Rosslare - T43 - Piezoelectric PIN Standalone Controller - Anti-Vandal - 500 Users - 12-24VDC - IP65
Out of Stock
SKU:
ROS-AC-T43
NSID:
25244
- $209.78
-
$251.74 - $209.78
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
This advanced anti-vandal, 500 user standalone controller is an exceptionally robust metallic unit with a highly sensitive piezoelectric keypad, suitable for PIN codes access requirements. This model with rugged metal construction and no moving parts is ideal for high traffic and extremely harsh environment. The model is fully sealed, epoxy filled, has advanced programming options and flexible operation modes. The BL-D40 alarm, chime and door bell. Push to Exit buttons.
Features
- 500 users can have PIN credentials for granting access
- Smooth attractive design, with anti-vandal construction
- Highly-sensitive Piezo metal keys
- 3 operational Security Levels can be selected with special PIN codes
- Supports up to 8-digit PIN codes, with timed wrong code lockout after several wrong attempts
- 2 tri-colored LEDs and integral sounder for programming and operation
- Wide range of low voltage AC/DC power input
- $209.78
-
$251.74 - $209.78
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xSpecifications:
| Operating Voltage Range: | 12 to 24 VDC, from a regulated power supply 16 to 24 VAC, from a transformer |
| Input Current: | Standby: 15mA, at 12VDC Maximum: 75mA, at 12VDC |
| Relay Outputs: | Lock Strike: 3 A, N.O. and N.C. Auxiliary: 3 A, N.O. and N.C. |
| Tamper: | Optical back tamper sensor, O.C. active low 32mA max sink current |
| Inputs: | REX: N.O. Dry Contact Auxiliary (In/Monitor): N.O. Dry Contact, 10 programmable modes |
| Capacity: | 500 users, single / dual code each |
| Keypad: | 3x4 Keys for local programming and 4 to 8 digit PIN codes entry |
| User levels: |
Normal, Secure, Master |
| Security Modes: | Normal, Bypass, Secure |
| Audio/Visual: | Interface for BL-D40 (bell, chime and siren enunciator) Two tri-color LED indicators, built-in sounder |
| Design: | Epoxy potted, fully sealed in a rugged metal slim enclosure, high strength construction, High-sensitive Piezo metal keys. Highly suitable for extremely harsh environments. |
| RFI Protection | > 20 V/m up to 1000 MHz |
| Dimensions: | 4.72 x 2.6 x 1.06 in. |
| Certifications: | IP65 Water Resistant |
| Manufacturer's Warranty: | 5-Year Limited Product Warranty |
