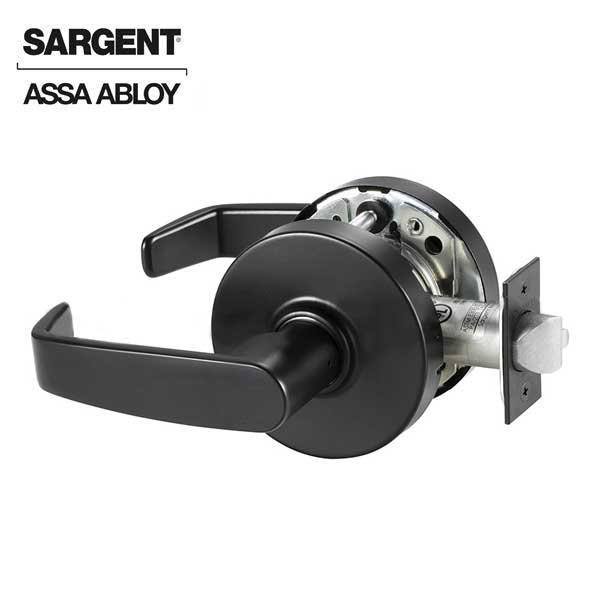

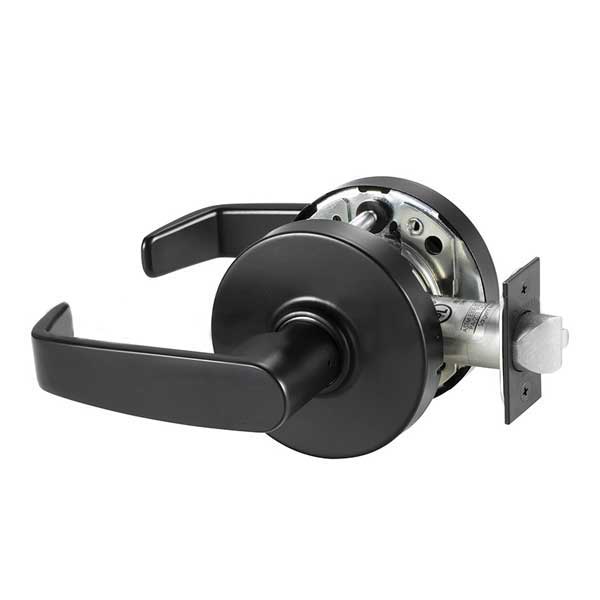

Sargent - 10U15 - Mechanical Cylindrical Lock - L Rose / L Lever - Non Keyed - Passage - BSP - Black Suede Powder Coat - Grade 1
Sargent - 10U15 - Mechanical Cylindrical Lock - L Rose / L Lever - Non Keyed - Passage - BSP - Black Suede Powder Coat - Grade 1
Sargent - 10U15 - Mechanical Cylindrical Lock - L Rose / L Lever - Non Keyed - Passage - BSP - Black Suede Powder Coat - Grade 1
Sargent - 10U15 - Mechanical Cylindrical Lock - L Rose / L Lever - Non Keyed - Passage - BSP - Black Suede Powder Coat - Grade 1
Sargent - 10U15 - Mechanical Cylindrical Lock - L Rose / L Lever - Non Keyed - Passage - BSP - Black Suede Powder Coat - Grade 1

Sargent - 10U15 - Mechanical Cylindrical Lock - L Rose / L Lever - Non Keyed - Passage - BSP - Black Suede Powder Coat - Grade 1

$225.00 $270.00
Availability: Out of Stock
Wishlist
  • Product SKU: SRG-28-10U15-LL-BSP
  • NSID: 24614
  • SRG-28-10U15-LL-BSP

    The SRG-28-10U15-LL-BSP  is a heavy duty cylindrical key-in-lever lock designed to exceed the requirements of ANSI 156.2 Series 4000 Grade 1. The 10 Line is the standard for institutional applications such as medical, educational and municipal facilities.


    Features

    • ANSI/BHMA Grade 1 certified for cycle and strength requirements. Exceeds cycle testing standards by nine times with 9.6 million cycles and torque resistance by 1.5 times.
    • UL-cUL listed for 3 hour fire doors and windstorm applications
    • Freewheeling trim optional
    • Available in 21 different functions, including classroom security and electromechanical options for access control applications
    • 7 year warranty
    • Applications: Offices, Schools/Universities, Hospitals, Manufacturing facilities

    $225.00




Specifications

Construction: Heavy Duty Steel
Lock Function: 15 : Passage Lock
Door Thickness: 1-3/4" (44mm)
Backset: 2-3/4" (70mm)
Faceplate: Wrought brass Standard — 2-1/4" (57mm) x 1-1/8" (29mm)
Strike: ANSI Strike - 800 curved lip strike — standard
Latch Type Spring Latch (Unguarded)
Bolt Projection: 1/2"
Stile: 4-1/2"
Rose & Lever: Standard L Rose and L Lever
Cylinder:
Non-Keyed
Keyway: None
Finish: BSP - Black Suede Powder Coat
Certifications: UL / cUL Listed for 3-Hour Doors
Warranty: 7-Year Manufacturer Warranty
