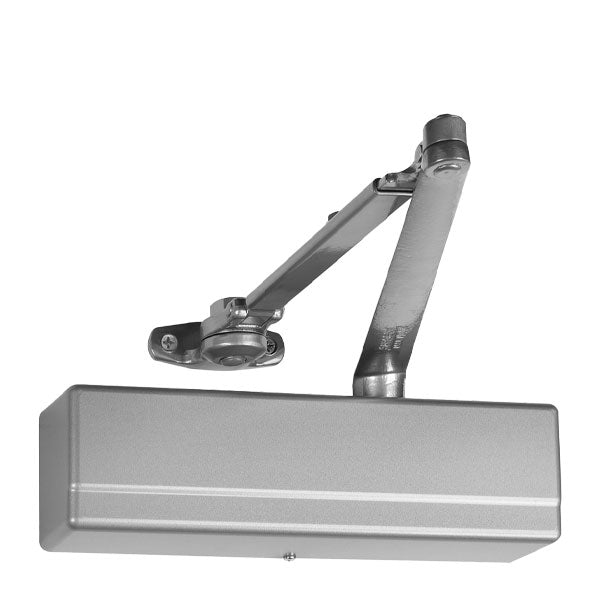

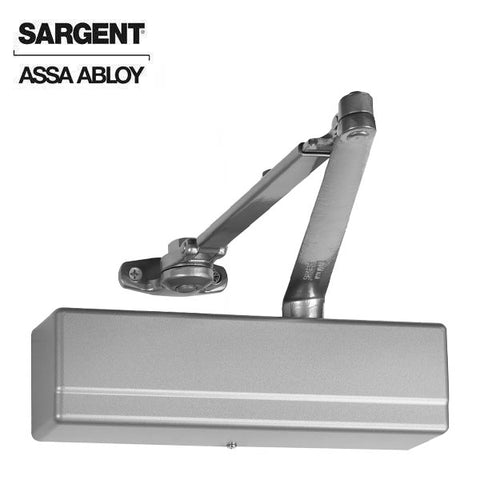

Sargent - 1431 - Powerglide Door Closer - Back Check Function - Pull Side Track With Bumper - Adjustable Size 1-6 - Plastic Cover - Sprayed Aluminum Enamel - Fire Rated - Grade 1
In Stock
SKU:
SRG-1431-OTB-EN
NSID:
71528
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $411.40
-
$493.68 - $411.40
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Featuring heavy-duty construction for superior strength and wear resistance, the Sargent 1431 Series Powerglide Door Closer is ideally suited for highly trafficked environments like schools, healthcare facilities, and office and commercial buildings. With a full complement of arm types and front-facing valves, the 1431 series can be easily installed and maintained—for interior and exterior applications.
Features
- Exceeds 25 million cycles
- Non-handed
- Black Suede Powder Coat finish
- Full rack and pinion construction
- Self sticking templates supplied for most applications
- 1-1/2" diameter piston for superior door control
- Closing speed, latching speed and backcheck shall be controlled by key operated valves
- OTB - Pull Side Track with Bumper
- Provides built in compression stop and holder mechanism from 85° – 120°
- High impact non-corrosive plastic covers with two machine screws standard
- Adjustable spring power allows 1431 closers a size range of 1 through 6
- UL/cUL listed for use on fire rated doors
Specifications
| Construction | Heavy Duty Aluminum Alloy |
| Function | Door Closer w/ Compression Stop & Hold Open |
| Interior or Exterior | Universal |
| Handing | Non-Handed |
| Finish | EN - Sprayed Aluminum Enamel |
| Door Width | 24 - 48" |
| Diameter Piston | 1-1/2" |
| Projection from Wall | 2-1/4" |
| Application |
Parallel |
| Arm Type | OTB- Pull Side Track with bumper |
| Hold Angle | 85° - 120° |
| Fasteners | Machine Screws and self tapping screws provided for closer and arm |
| Max. Door Opening | 120° |
| ADA | Meets ADA requirements in all applications, except Push Side Track application |
| Fire Rating | UL 10C listed for positive pressure fire test |
| Certifications | Certified ANSI/BHMA A156.4 Grade 1 |
| Warranty | 30-Year Limited Manufacturer Warranty |
