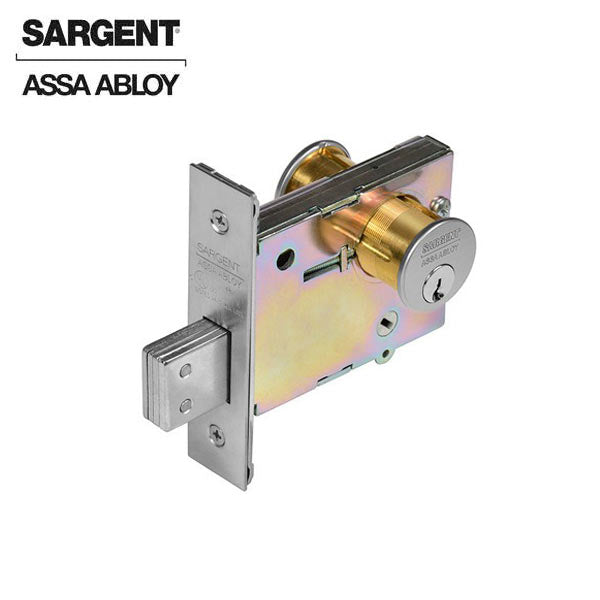

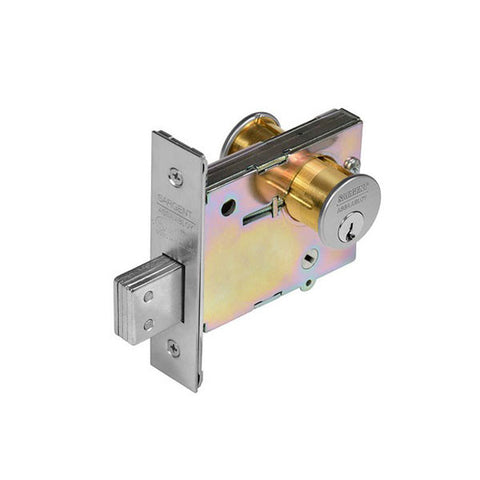

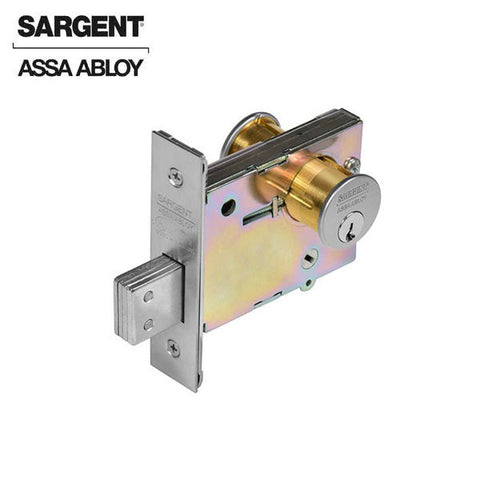

Sargent - 4874 - Double Cylinder Mortise Deadlock - Entry / Office - Satin Chrome - Grade 1
$261.80
$319.99
Availability:
In Stock
- Product SKU: SRG-4874-26D
- NSID: 32836
-
SRG-4874-26D
The Sargent 4874 is a heavy-duty commercial quality deadbolt that provides a positive deterrent to forced entry. Ideally suited for high-traffic facilities like schools and hospitals, the 4870 Series features a laminated stacked steel deadbolt and high-quality construction to provide maximum security, performance and durability.
$261.80
Specifications:
| Door thickness | 1-3/4" (44mm) standard |
| Backset | 2-3/4" (70mm) |
| Strike | # 480 Strike Standard: 3-1/2" (89mm) x 1-1/8" (29mm) |
| Bolt | Laminated Stacked Steel Deadbolt with Hardened Pin and a 1" throw |
| Cylinder | Brass, 6-pin, L4 keyway, 0-bitted standard |
| Cylinder Ring | 97 Rosette |
| Case | Heavy wrought steel, .093 thick, protected with a zinc dichromate finish |
| Outside Front Plate | Brass, bronze, stainless steel. 4-5/8" (117mm) x 1-1/8" (29mm) |
| Handing | Non handed, field reversible |
| Spacing | C. to c. knob/lever to cylinder: 3-5/8" (92mm). C. to c. knob/lever to thumbturn: 2-7/16" (62mm) |
| Manufacturer Warranty |
10 Year Limited |
SRG-4874-26D
The Sargent 4874 is a heavy-duty commercial quality deadbolt that provides a positive deterrent to forced entry. Ideally suited for high-traffic facilities like schools and hospitals, the 4870 Series features a laminated stacked steel deadbolt and high-quality construction to provide maximum security, performance and durability.
Specifications:
| Door thickness | 1-3/4" (44mm) standard |
| Backset | 2-3/4" (70mm) |
| Strike | # 480 Strike Standard: 3-1/2" (89mm) x 1-1/8" (29mm) |
| Bolt | Laminated Stacked Steel Deadbolt with Hardened Pin and a 1" throw |
| Cylinder | Brass, 6-pin, L4 keyway, 0-bitted standard |
| Cylinder Ring | 97 Rosette |
| Case | Heavy wrought steel, .093 thick, protected with a zinc dichromate finish |
| Outside Front Plate | Brass, bronze, stainless steel. 4-5/8" (117mm) x 1-1/8" (29mm) |
| Handing | Non handed, field reversible |
| Spacing | C. to c. knob/lever to cylinder: 3-5/8" (92mm). C. to c. knob/lever to thumbturn: 2-7/16" (62mm) |
| Manufacturer Warranty |
10 Year Limited |
