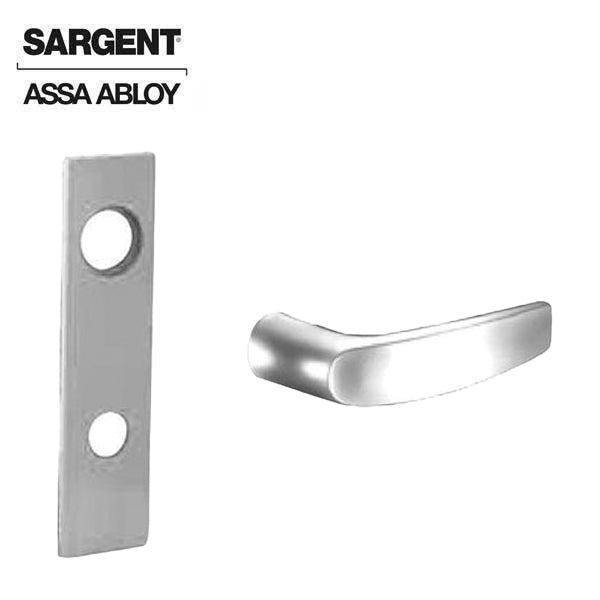

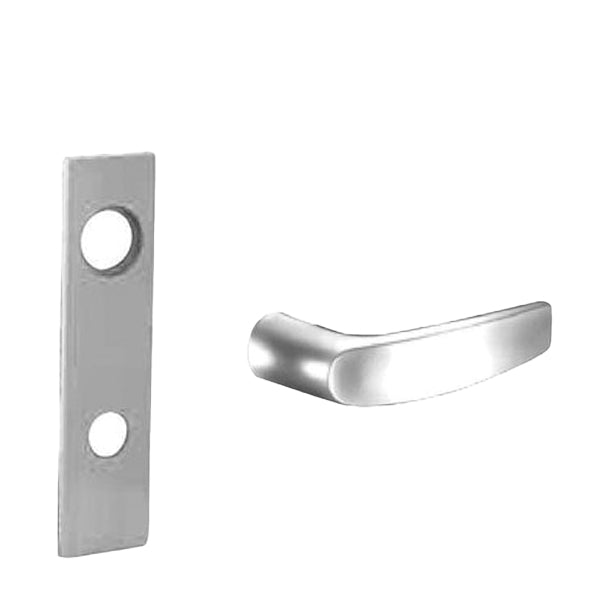

Sargent - 8200 Series - Line Lever Mortise Locks - LW1 Escutcheon B Lever - Satin Chrome - Grade 1
Available to Order
SKU:
SRG-TR-8255-LW1B-26D
NSID:
72096
- $386.22
-
$463.46 - $386.22
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The 8200 Series mortise locks offer maximum security, performance, and durability with high-quality components. It's the industry benchmark for mortise locks, featuring a multi-functional lock body with a variety of lever and escutcheon styles. The lock is robust, easy to install, and has a redesigned status indicator option with a large viewing window for assurance. The electromechanical version operates from 12 to 24VDC, with EcoFlex technology that significantly reduces power consumption up to 96%. The 8200 far surpasses ANSI/BHMA A156.13 Series 100 Grade 1 Standards, making it the strongest and most durable mortise lock in the industry.
Features:
- Heavy-Duty lever-style mortise lock
- Utilizes EcoFlex technology on all electromechanical functions, creating up to 89% energy savings.
- UL Cycle Above and Beyond test completed at 16 million cycles (Verification ID: V584148)
- Integrates with all SARGENT key systems (Degree, Signature, KESO, and XC)
- Available in 56 different functions, including electromechanical, security and monitoring
- Available with behavioral health trim
- Patented design and construction
- 10-year limited warranty
Specifications:
| ANSI/BHMA Code | A156.13 |
| ANSI/BHMA Series | Series 1000 |
| Backset Depth (Standard) | 2 3/4" |
| Cylinder Pins | 6 pin, 7 pin |
| Door Thickness (Standard) | 1 3/4" |
| Handing | Field Reversible |
| Latchbolt Throw | 3/4" |
| Maximum Backset | 2 3/4" |
| Minimum Backset | 2 3/4" |
| Maximum Door Thickness | 1 3/4" |
| Minimum Door Thickness | 1 3/4" |
| Number of Keys | 2 |
| Strike Type | Curved Lip |
| UL Listed | Yes |
| ULC Listed | Yes |
| Warranty | 10-year limited warranty: 2-year on electrical components |
| Weight | 2.6 |
| Width | 5.625 |
| Height | 4.375 |
| Length | 9.25 |
| Roseescutcheon Design | LW1 - Esutcheon |
| Finish | Satin Chrome |
| Leverknob Design | B - lever |
| Fire Rated | 2 hours |
